i4s Gun Screen Displays
i4s Gun Weld Feedback Screen
Home Screen Auto Mode Screen
Manual Mode Screen
Weld Feedback Screen
Single Sided Mode Screen

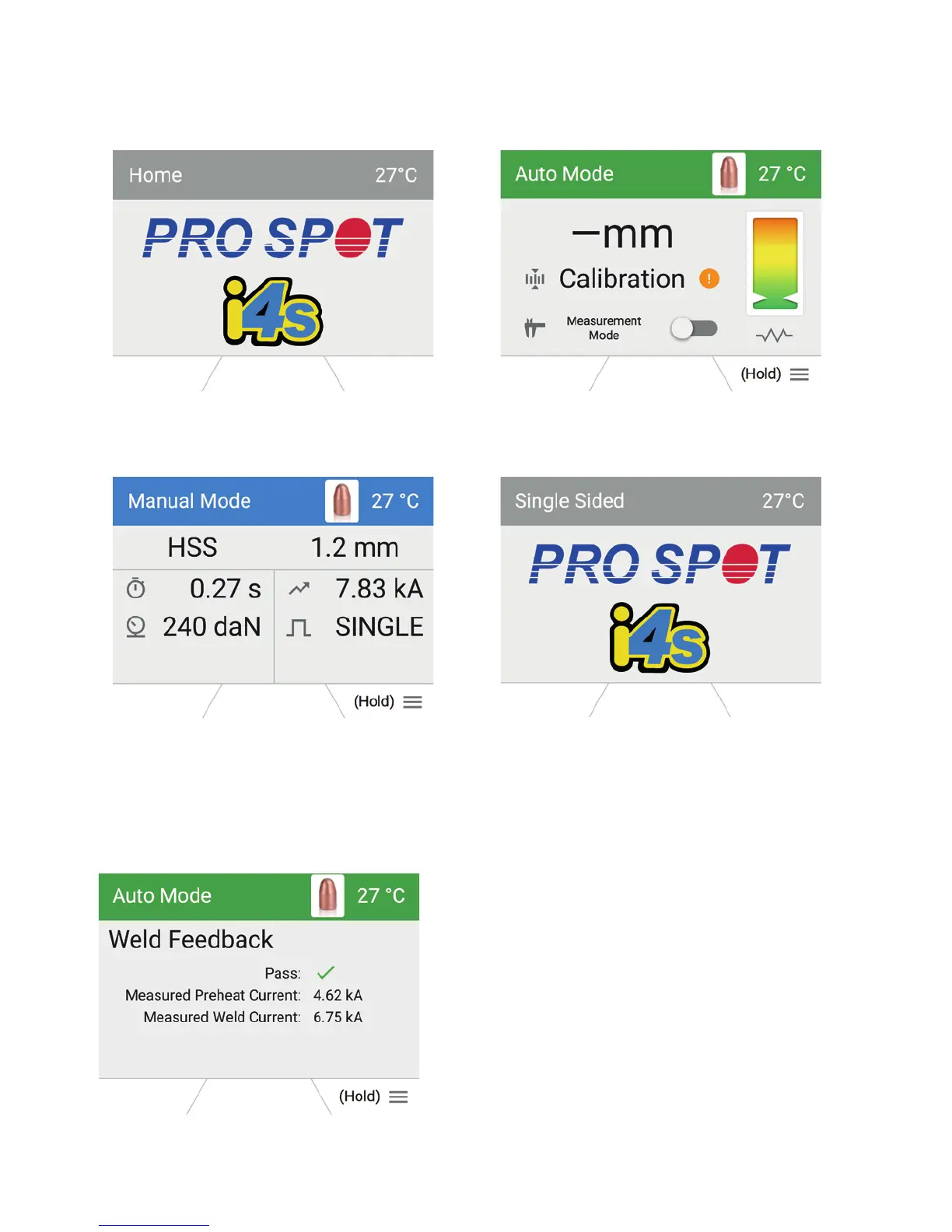

The Weld Feedback screen will show up on the
i4s screen and the i4s gun screen after a weld
has been performed. The Weld Feedback screen
indicates to the user if the weld passed or failed. It
also displays the Measured Preheat Current and
the Measured Weld Current.
Figure 7.6 Figure 7.7
Figure 7.8 Figure 7.9
Figure 7.10
