ProLite Plus - Left Side of Trailer

LEGEND
62. VIN tag
49. Heating grille
13. Motorized extension
29. Gravity water connection
30. Municipal water connection
63. Drinking water drain valve
64. P-Trap cleanout plug
50. Grey watercleanout
51. Black water cleanout
16. Stabilizer strut
26. Bumper
YOUR TRAILER
11. Running light
22. Window
12. Extension awning
44. Emergency exit
1. Air conditioner
21. Ventilation dome
45. Logos and decals
46. Cassette toilet
47. Electrical connection
120 volts/30 amps
48. Battery ventilation
11. 22. 12. 44. 21. 11.45. 46.1.
47. 13.48. 49. 50.64.63.30.29. 51. 16. 26.

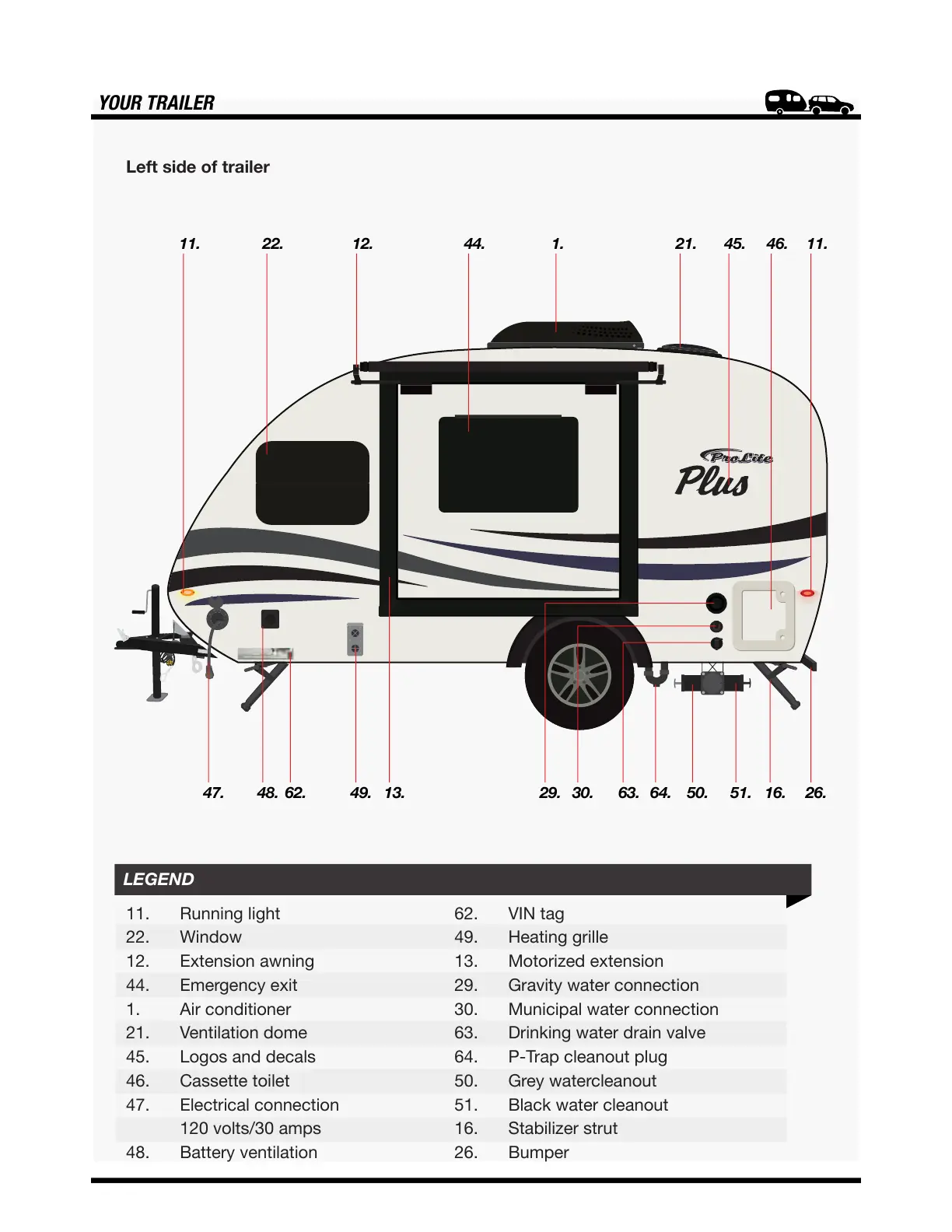

Left side of trailer
62.
