Seven-conductor power cable
The power cable circuits are protected by automatic breakers mounted on a panel in the
converter/charger compartment at the front of the trailer.
The seven-conductor power cable is protected by a fuse in your towing vehicle and another
fuse in your trailer’s converter panel.
If there is an overload in the 12-volt system, the circuit is protected by two fuses,
one on the positive connection to your battery and the other is a master fuse in your
trailer’s converter.
Take care to avoid damaging the seven-conductor cable when hitching the trailer and
ensure that the cable is out of the way so it will not be damaged by the hitch.
ELECTRICAL SYSTEM
Keep spare fuses with you, they are not expensive and will spare you
many worries in the event of a breakdown.
HINTS AND TIPS
Do not let the cable drag on the ground. When it is not in use, you must
cover the cable connector to protect it from humidity.
Clean the cable contacts every six months with a suitable cleaner.

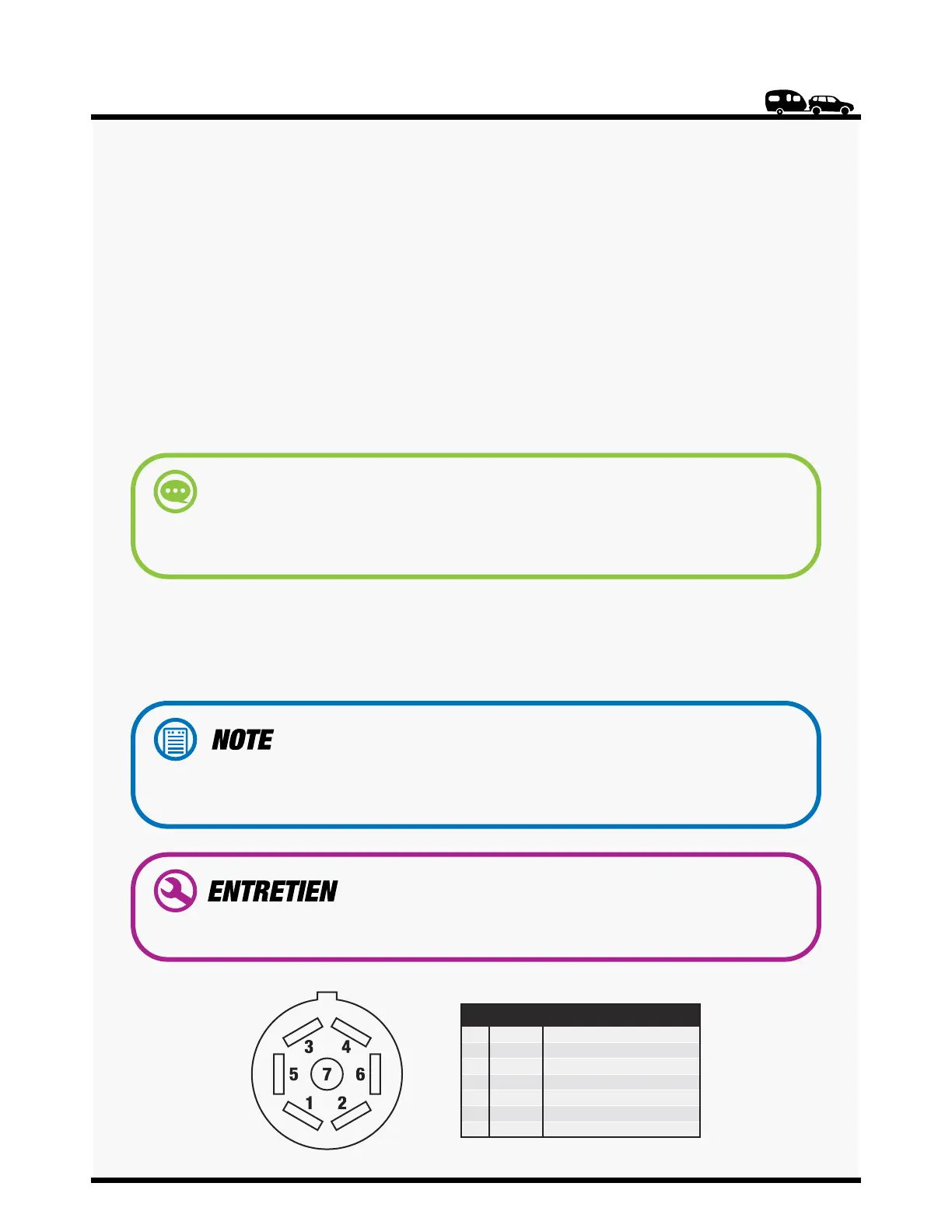

NO. COLOUR ITEMS
1 White Ground
2 Blue Electric brakes
3 Green Running lights
4 Black 12-volt battery
