ProLite Plus - Underside of Trailer

LEGEND
YOUR TRAILER

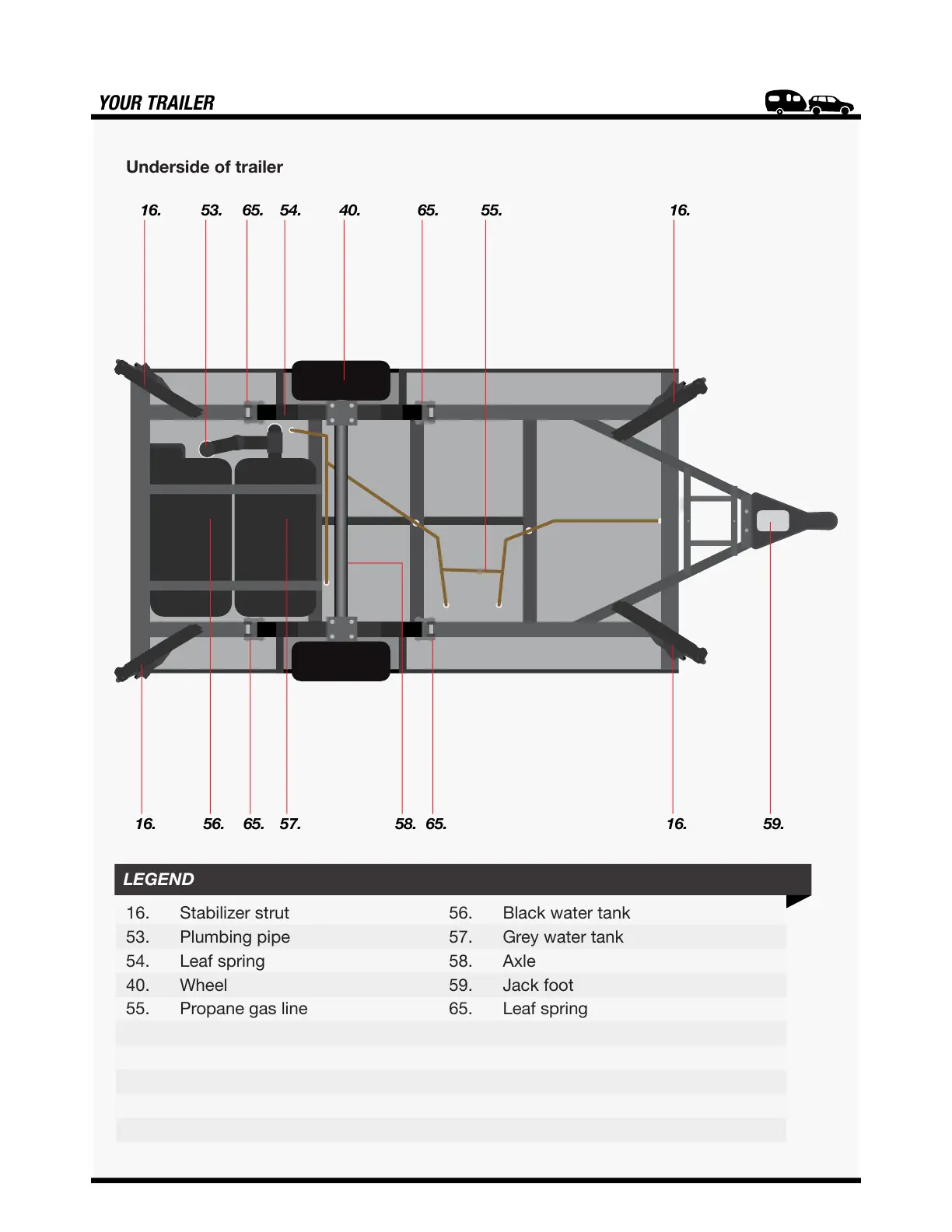

Underside of trailer
16. 53. 54. 40. 65.65. 55. 16.
56.16. 65. 65. 16. 59.57. 58.
16. Stabilizer strut 56. Black water tank
53. Plumbing pipe 57. Grey water tank
54. Leaf spring 58. Axle
40. Wheel 59. Jack foot
55. Propane gas line 65. Leaf spring
