1.2 Control elements
P_G_0087_SW
2
3
1

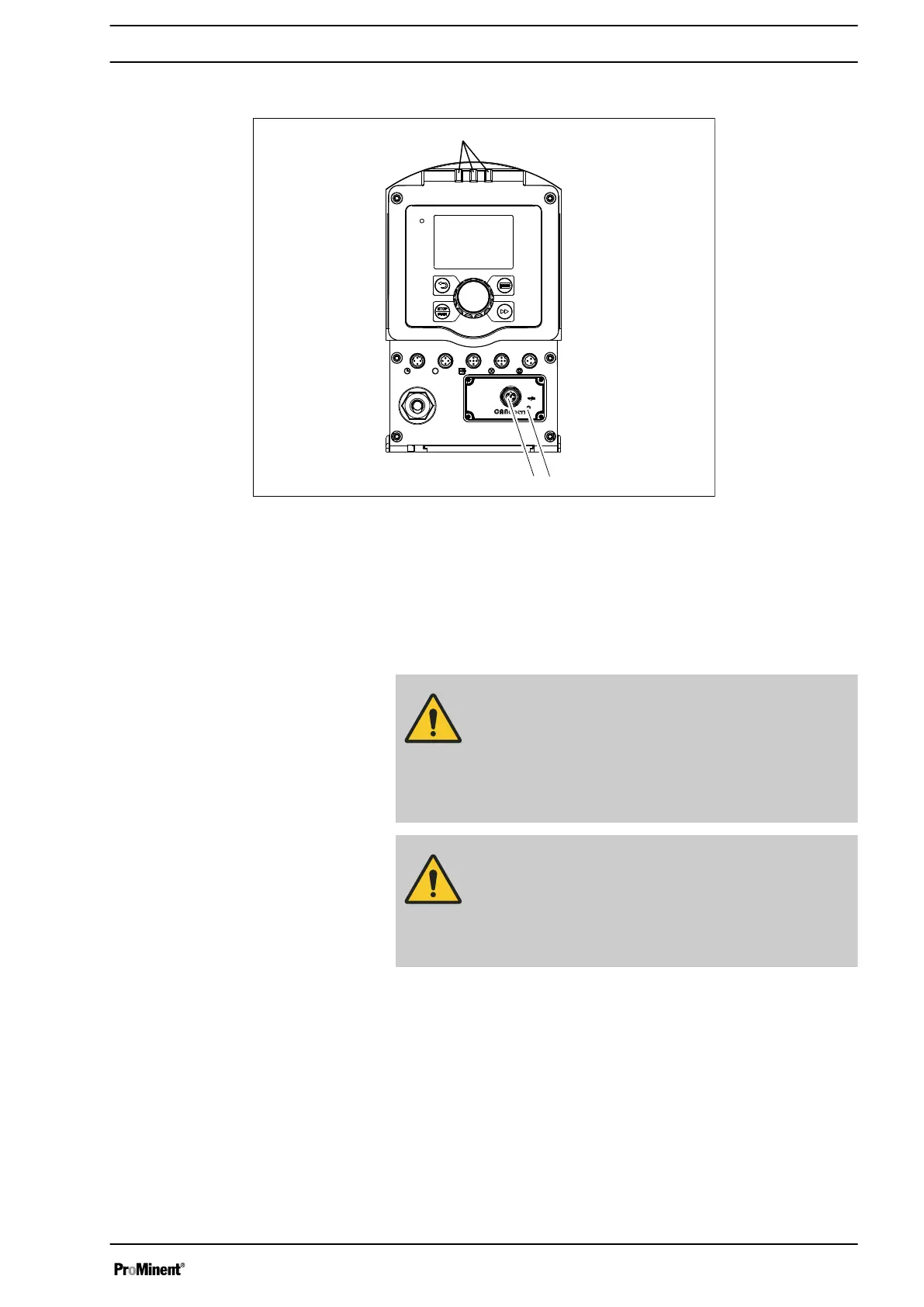

Fig. 1: DFXa control elements
1 CAN bus status LEDs
2 "CAN bus" socket
3 Device LEDs
1.3 Electrical installation
CAUTION!
Pump may be damaged.
IP65 degree of protection cannot be guaranteed if
the CAN cable is not correctly screwed in.
– Manually screw in the CAN cable threaded
connectors until they reach the stop.
CAUTION!
Pump may be damaged.
The panel plug on the housing may break off.
– Never connect a T-coupler directly to the
housing.
Connect the CAN cable with the CANopen bus connector as
shown below (for more details - refer to the documentation for your
CANopen installation).
Insert the mains plug into the power socket - the metering pump
may possibly start to pump.
Supplementary operating instructions for CANopen
