ProSoft Technology MVI56E-MCMXT User Manual

Diagnostics and Troubleshooting MVI56E-MCM ♦ ControlLogix Platform
User Manual Modbus Communication Module
Page 108 of 209 ProSoft Technology, Inc.
5.7.1 The Diagnostics Menu

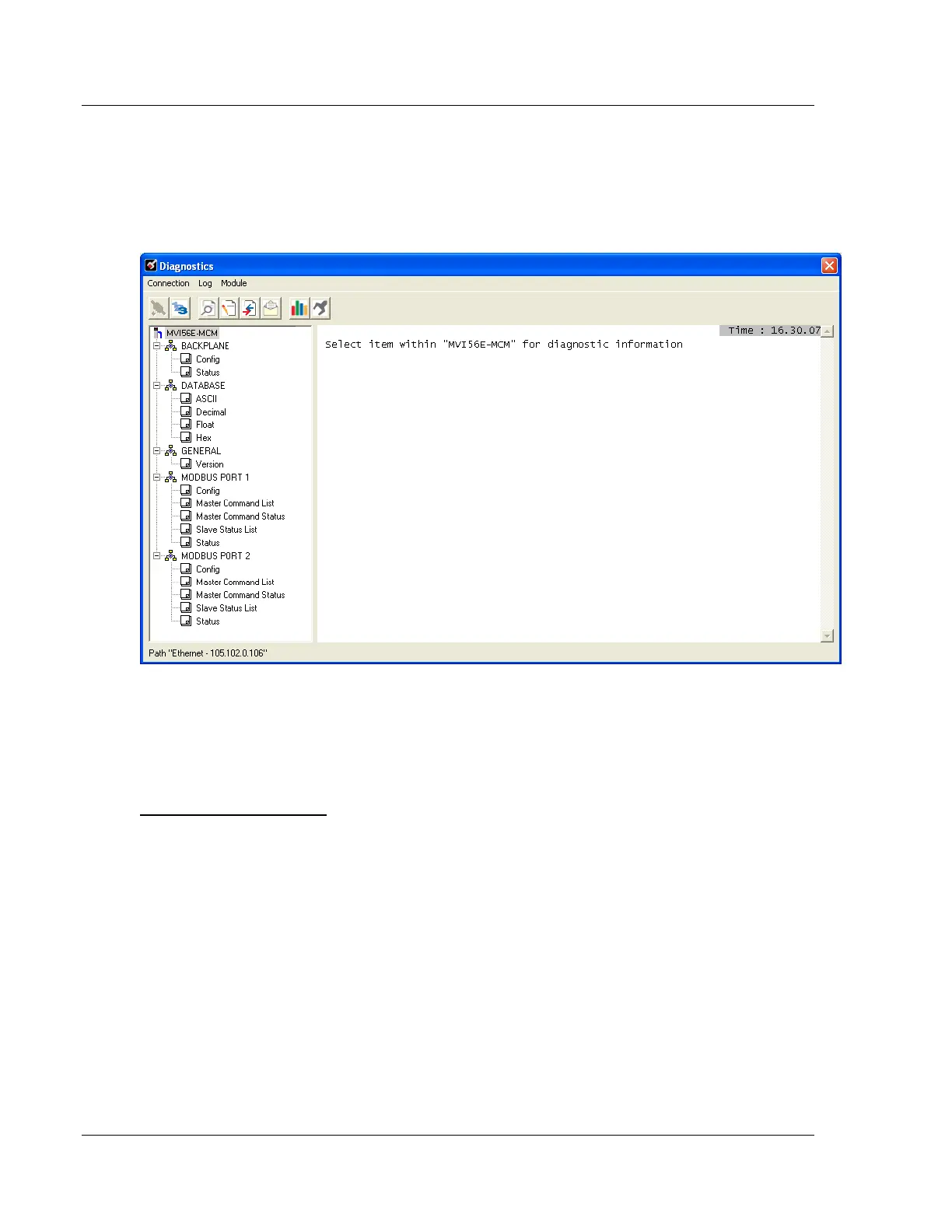

The Diagnostics menu, available through the Ethernet configuration port for this
module, is arranged as a tree structure, with the Main menu at the top of the tree,
and one or more submenus for each menu command. The first menu you see
when you connect to the module is the Main menu.
5.7.2 Monitoring Backplane Information
Use the BACKPLANE menu to view the backplane status information for the
MVI56E-MCM module.
Backplane Configuration
Click Config to view current backplane configuration settings, including
 Read Start
 Read Count
 Write Start
 Write Count
 Error Status Pointer
The settings on this menu correspond with the MCM.CONFIG.MODDEF controller
tags in the ModDef Settings (page 60).
