Diagnostics and Troubleshooting MVI56E-MCM ♦ ControlLogix Platform
User Manual Modbus Communication Module
Page 98 of 209 ProSoft Technology, Inc.
5.5.2 Using RSWho to Connect to the Module
You need to have RSLinx installed on your PC to use this feature. You also need an ENBT module
set up in the rack. For information on setting up the ENBT module, see Using CIPconnect to
Connect to the Module.

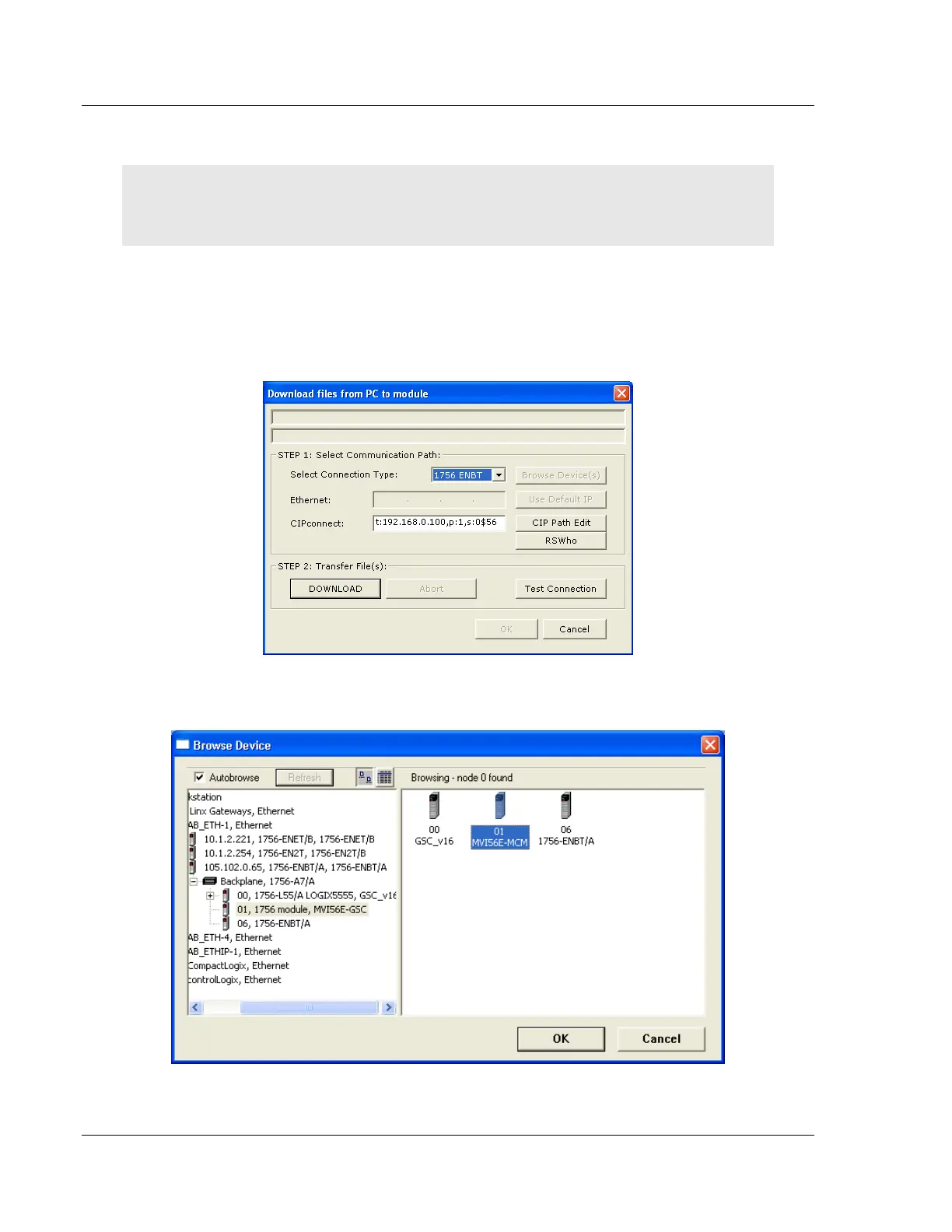

1 In the tree view in ProSoft Configuration Builder, right-click the MVI56E-MCM
module.
2 From the shortcut menu, choose DOWNLOAD FROM PC TO DEVICE.
3 In the Download dialog box, choose 1756 ENBT from the Select Connection
Type dropdown box.
4 Click RSWHO to display modules on the network. The MVI56E-MCM module
will automatically be identified on the network.
5 Select the module, and then click OK.
