Start Here MVI56E-MCM ♦ ControlLogix Platform
User Manual Modbus Communication Module
Page 20 of 209 ProSoft Technology, Inc.
1.6.3 Import the Ladder Rung
1 In the CONTROLLER ORGANIZATION window, expand the TASKS folder and
subfolders until you reach the MAINPROGRAM folder.
2 In the MAINPROGRAM folder, double-click to open the MAINROUTINE ladder.

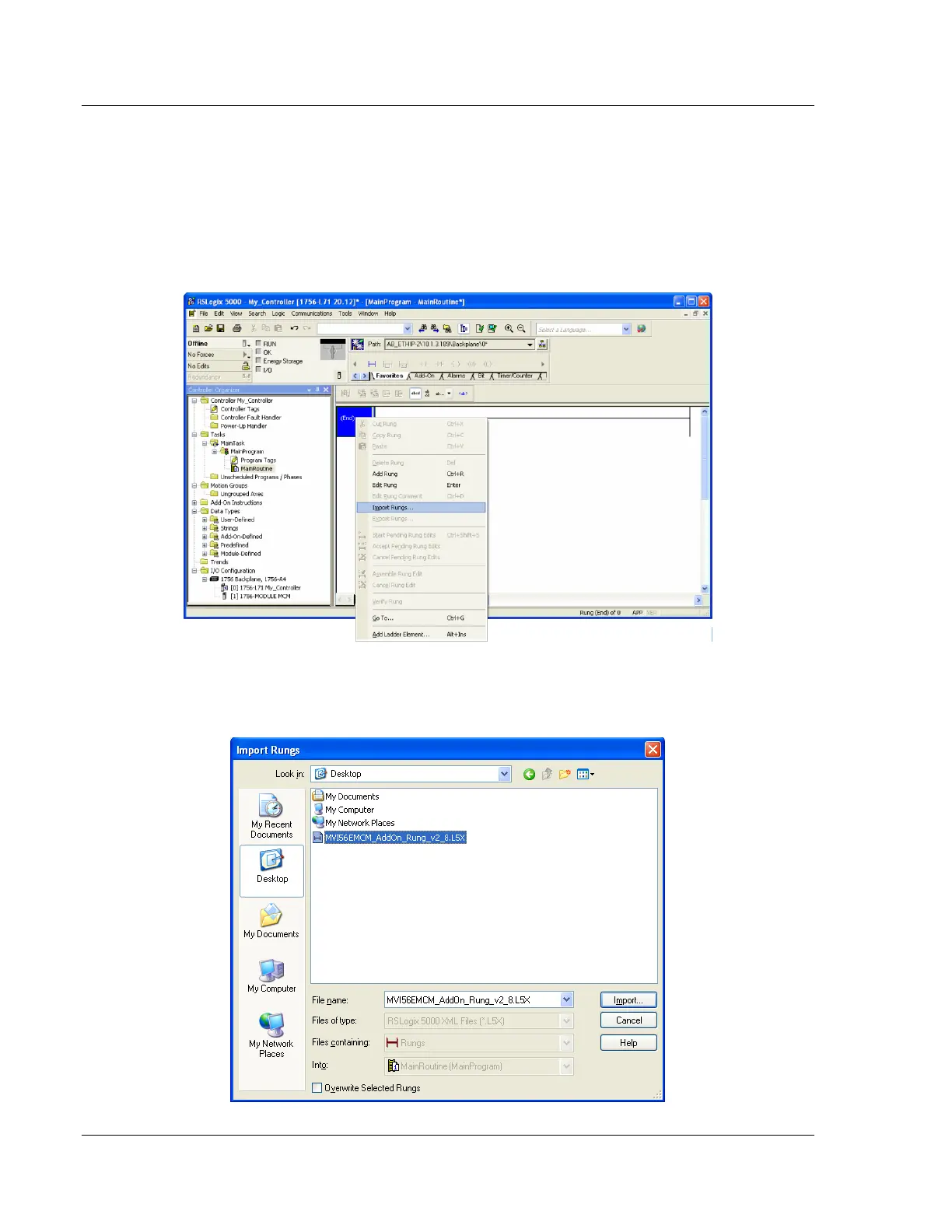

3 Select an empty rung in the routine, and then click the right mouse button to
open a shortcut menu. On the shortcut menu, choose IMPORT RUNGS…
4 Navigate to the location on your PC where you Before You Begin (page 16)
the Add-On Instruction (for example, My Documents or Desktop). Select the
MVI56EMCM_ADDON_RUNG_V2.8.L5X file.
To Next Page
