MVI56E-MCM ♦ ControlLogix Platform Start Here
Modbus Communication Module User Manual
ProSoft Technology, Inc. Page 17 of 209
1.6.2 Creating the Module
1 Add the MVI56E-MCM module to the project.

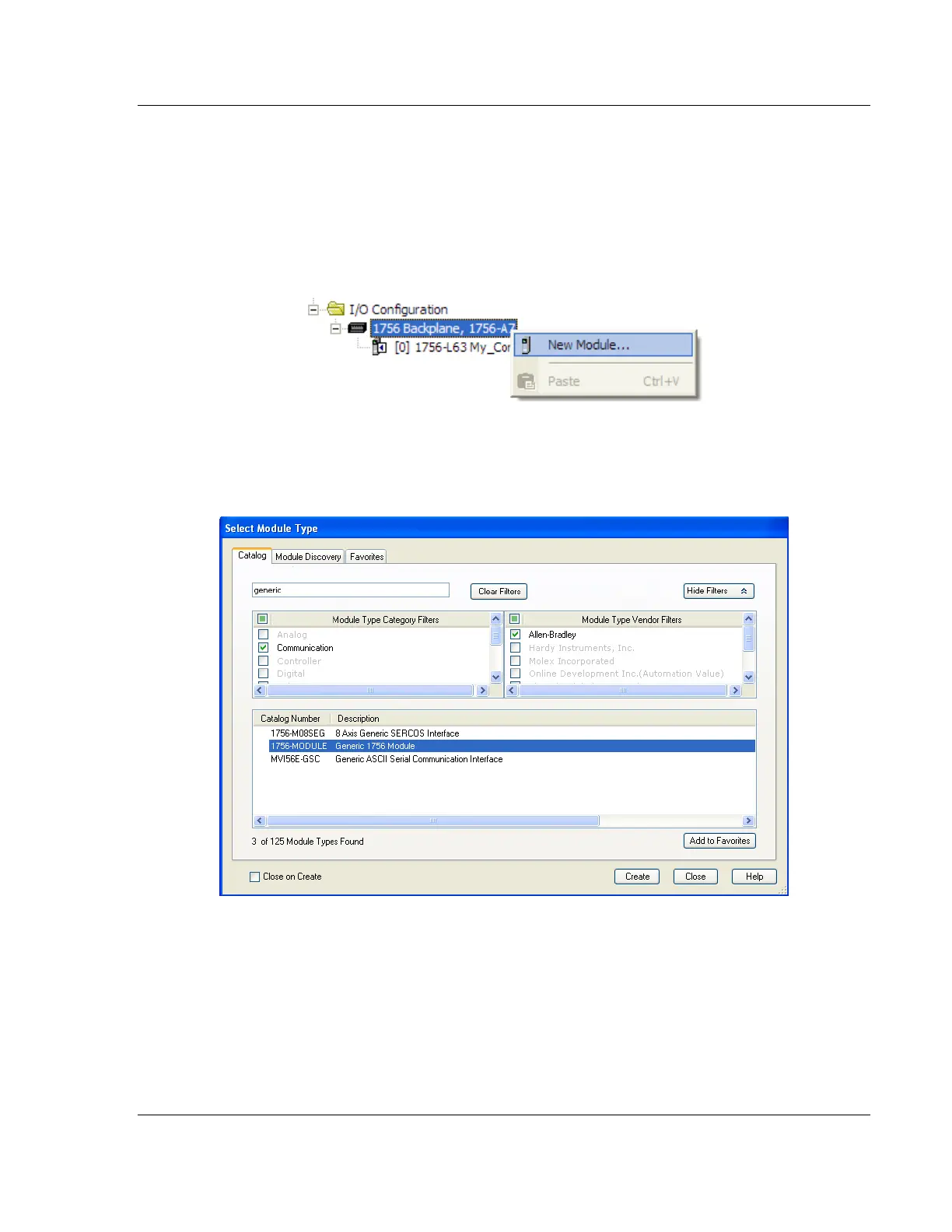

In the CONTROLLER ORGANIZATION window, select I/O CONFIGURATION and
click the right mouse button to open a shortcut menu. On the shortcut menu,
choose NEW MODULE...
This action opens the SELECT MODULE dialog box. Enter generic in the text
box and select the GENERIC 1756 MODULE. If you're using a controller
revision of 15 or less, expand OTHER in the SELECT MODULE dialog box,
and then select the GENERIC 1756 MODULE.
