Start Here MVI56E-MCM ControlLogix Platform
User Manual Modbus Communication Module
Page 18 of 209 ProSoft Technology, Inc.

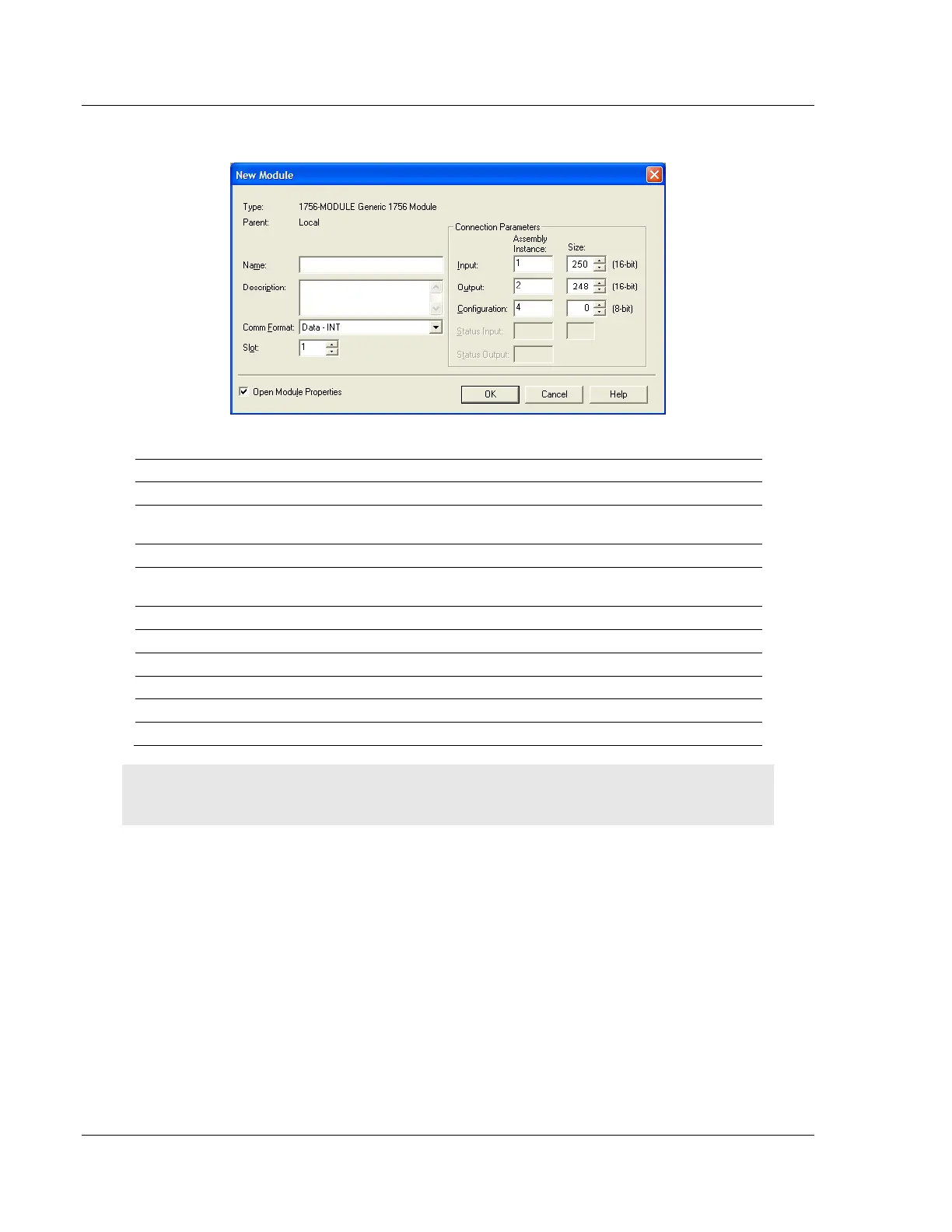

2 Click CREATE. This action opens the NEW MODULE dialog box.
3 In the NEW MODULE dialog box, enter the following values.
Parameter
Value
NAME
MCM
DESCRIPTION
Enter a description for the module. Example: Modbus
Communication Module
COMM FORMAT
Select DATA-INT
SLOT
Enter the slot number in the rack where the MVI56E-MCM
module is located
INPUT ASSEMBLY INSTANCE
1
INPUT SIZE
250
OUTPUT ASSEMBLY INSTANCE
2
OUTPUT SIZE
248
CONFIGURATION ASSEMBLY INSTANCE
4
CONFIGURATION SIZE
0
Important: You must select the COMM FORMAT as DATA - INT in the dialog box, otherwise the
module will not communicate over the backplane of the ControlLogix rack.
4 Click OK to continue.
5 Edit the Module Properties.
