ProSoft Technology MVI56E-MCMXT User Manual

Diagnostics and Troubleshooting MVI56E-MCM ♦ ControlLogix Platform
User Manual Modbus Communication Module
Page 94 of 209 ProSoft Technology, Inc.
Rack 1
Slot
Module
Network Address
0
ControlLogix Processor
-
1
1756-CNB
Node = 1
2
1756-ENBT
IP=192.168.0.100
3
Any
-
Rack 2
Slot
Module
Network Address
0
Any
-
1
Any
-
2
Any
-
3
Any
-
4
Any
-
5
1756-CNB
Node = 2
6
MVI56E-MCM
-

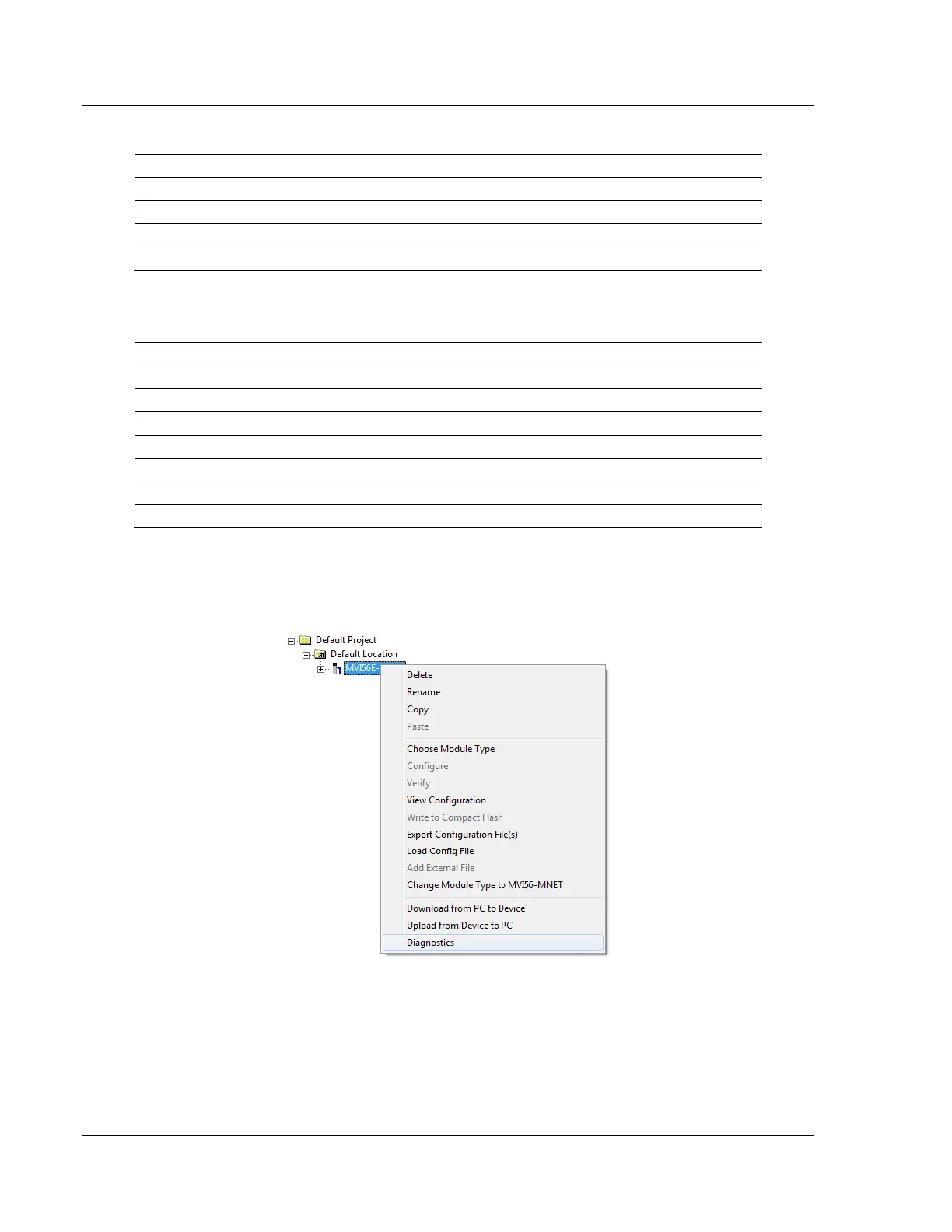

1 In ProSoft Configuration Builder, right-click the MVI56E-MCM icon to open a
shortcut menu.
2 On the shortcut menu, choose DIAGNOSTICS.
