Diagnostics and Troubleshooting MVI56E-MCM ♦ ControlLogix Platform
User Manual Modbus Communication Module
Page 96 of 209 ProSoft Technology, Inc.

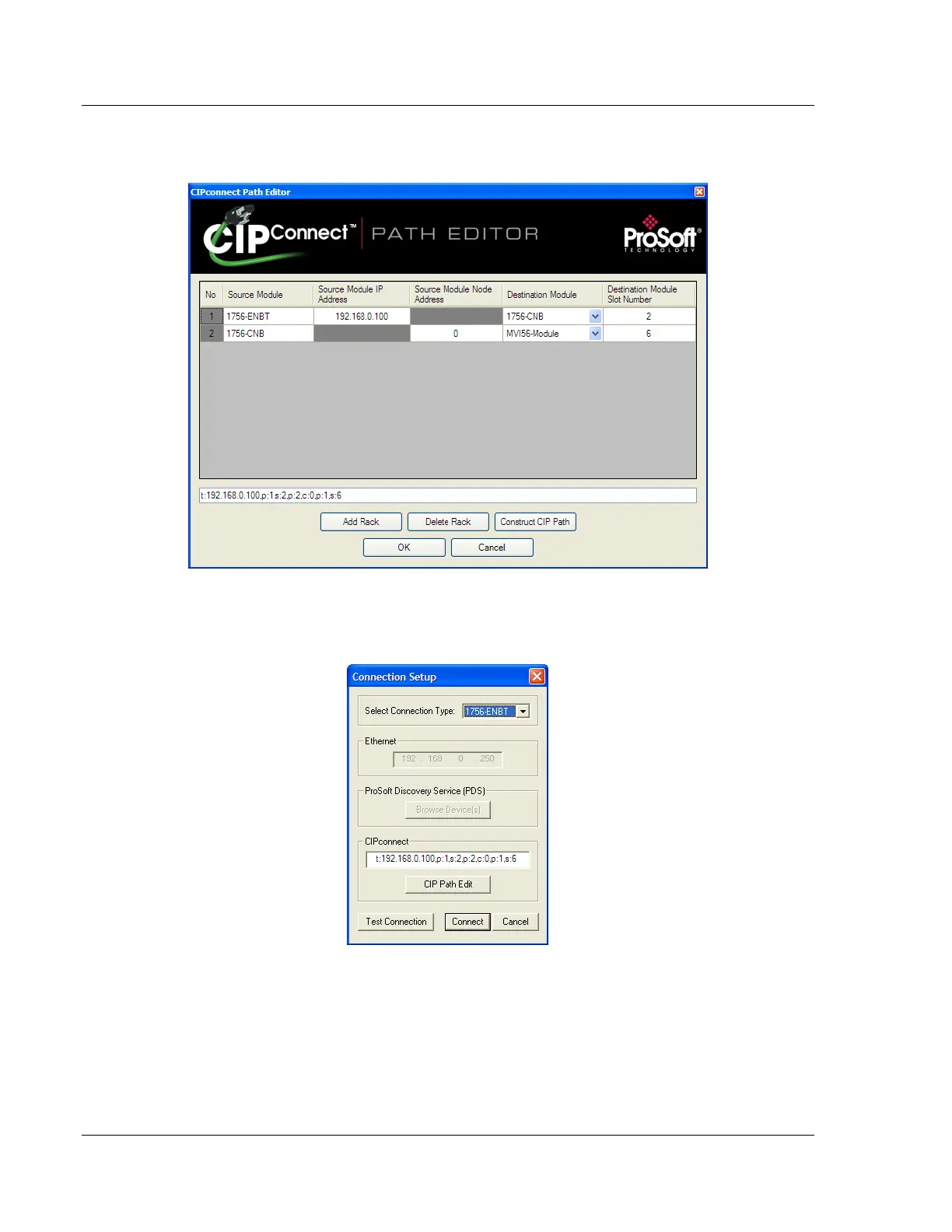

5 Configure the path as shown in the following illustration, and click
CONSTRUCT CIP PATH to build the path in text format.
6 Click OK to close the CIPconnect Path Editor and return to the Connection
Setup dialog box.
7 Check the new path in the Connection Setup dialog box.
