Proteco Q80A User Manual

N.C.
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
RF40
RX
C.
N.C. N.O.
TX
N.C.
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
RF40
RX
C.
N.C. N.O.
TX
1 2 3
1 2 3
Jumper
Jumper
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
N.C.
9 Q80A_8_2017
PROTECO S.r.l.
Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net

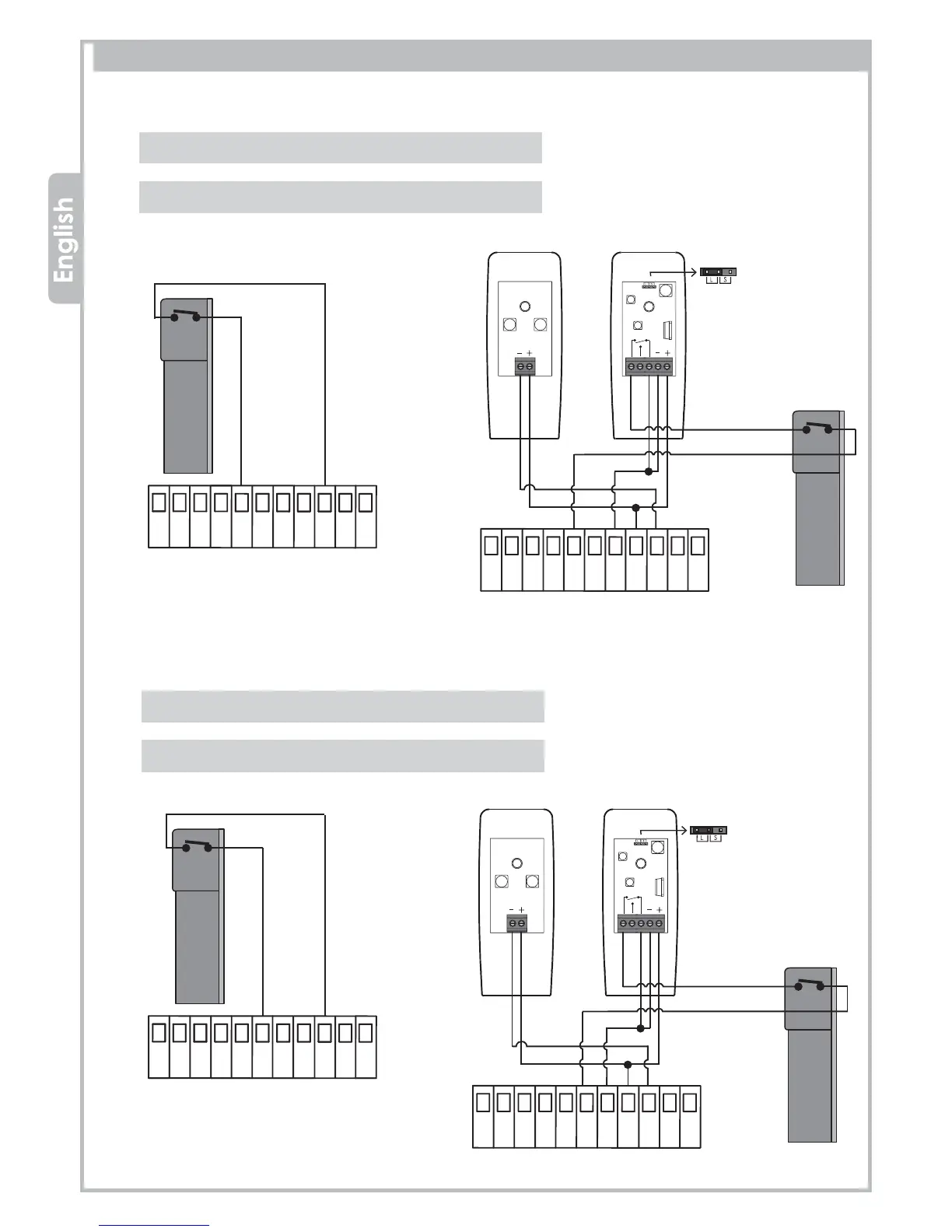

3.7.1 CLOSING (Mechanical) Safety Edge
Wire the CLOSING SAFETY EDGE to terminals 5 - 9 on JP5
terminal block.
3.7 SAFETY EDGE wiring
3.7.2 OPENING (Mechanical) Safety Edge
Wire the OPENING SAFETY EDGE to terminals 6 - 9 on JP5
terminal block.
The opening safety edge will behave as follows:
• If the safety edge meet any obstacle while the gate is OPENING,
the automation STOPS and REVERSES for about 10 cm.
• An obstacle detected by the safety edge while the gate is
CLOSING does not cause any effect.
• If the safety edge meet any obstacle while the gate is CLOSING,
the automation STOPS and REVERSES.
• An obstacle detected by the safety edge while the gate is
OPENING does not cause any effect.
