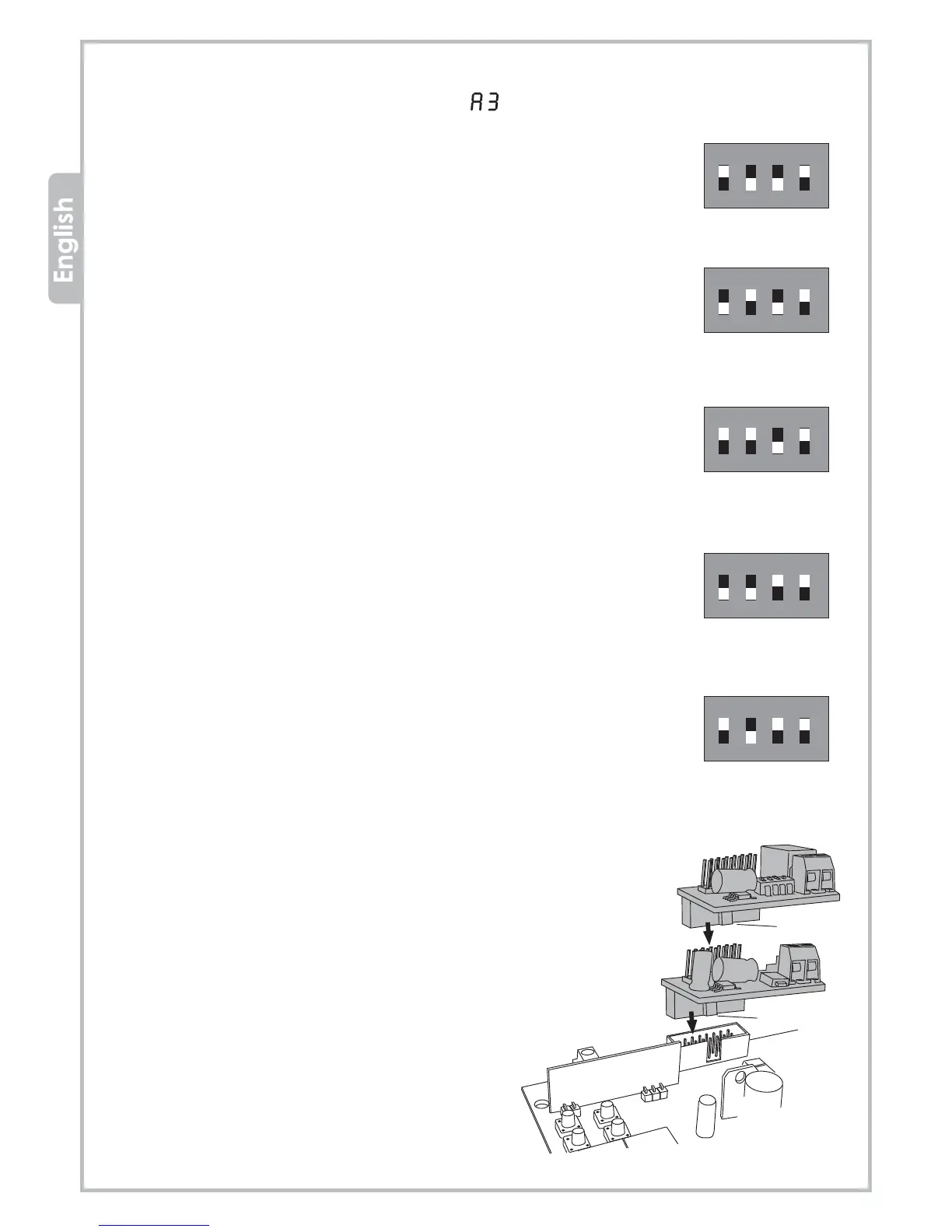

3.10.1 2ND RADIO CHANNEL settings
Note: to use the MRX04 module as a 2nd radio channel, you need to save the corresponding radio code.
Please refer to RADIO menu, parameter .
Select the AUX module settings with SW1 dip-switch-block:
Note:
You can fit both the optional modules on the same control panel,
placing them one on the top of the other as shown. No matter which
one you put first.
But please pay attention carefully to the orientation of the modules:
both reference slots facing the control panel shown as in the picture.
Driving
slot
Driving
slot
STABLE switch
Electric contact closes every time you press the remote control.
To select this mode, please set the dip-switches on the module as shown:
1= ON 2= OFF 3= OFF Dip-switch 4 is non influential.
BISTABLE switch – Toggle Mode
Electric contact closes or opens every time you press the remote control.
To select this mode, please set the dip-switches on the module as shown:
1= OFF 2= ON 3= OFF Dip-switch 4 is non influential.
TIMER mode
Electric contact closes when you press the remote control and stays
closed for 90 seconds.
To select this mode, please set the dip-switches on the module as shown:
1= ON 2= ON 3= OFF Dip-switch 4 is non influential.
3.10.2 CONTROL LIGHT settings
You can use the MRX01 module to control an indicator light.
The electric contact stays closed, so the light stays on, during all the
opening-closing cycle.
To select this mode, please set the dip-switches on the module as shown:
1= OFF 2= OFF 3= ON Dip-switch 4 is non influential.
3.10.3 COURTESY LIGHT settings
You can also use the MRX01 module to control a courtesy light when the gate
is operating. The electric contact closes since the gate starts operating till 90
seconds after the gates stops.
To select this mode, please set the dip-switches on the module as shown:
1= ON 2= OFF 3= ON Dip-switch 4 is non influential.
Additional
module
MRX01
Electric-lock
module
MEL04
