PROTECO S.r.l.
Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net
CLOSING PHOTOCELLS terminals
1 Use buttons to move inside the menu, till the display shows:
2 Press button to confirm.
3 Use buttons to select:
CLOSING Photocells - NOT WIRED
CLOSING Photocells - WIRED
4 Press button to go back to the top level menus,
then press button again till the display shows:
or wait the timeout (20 seconds) to exit.
Menù

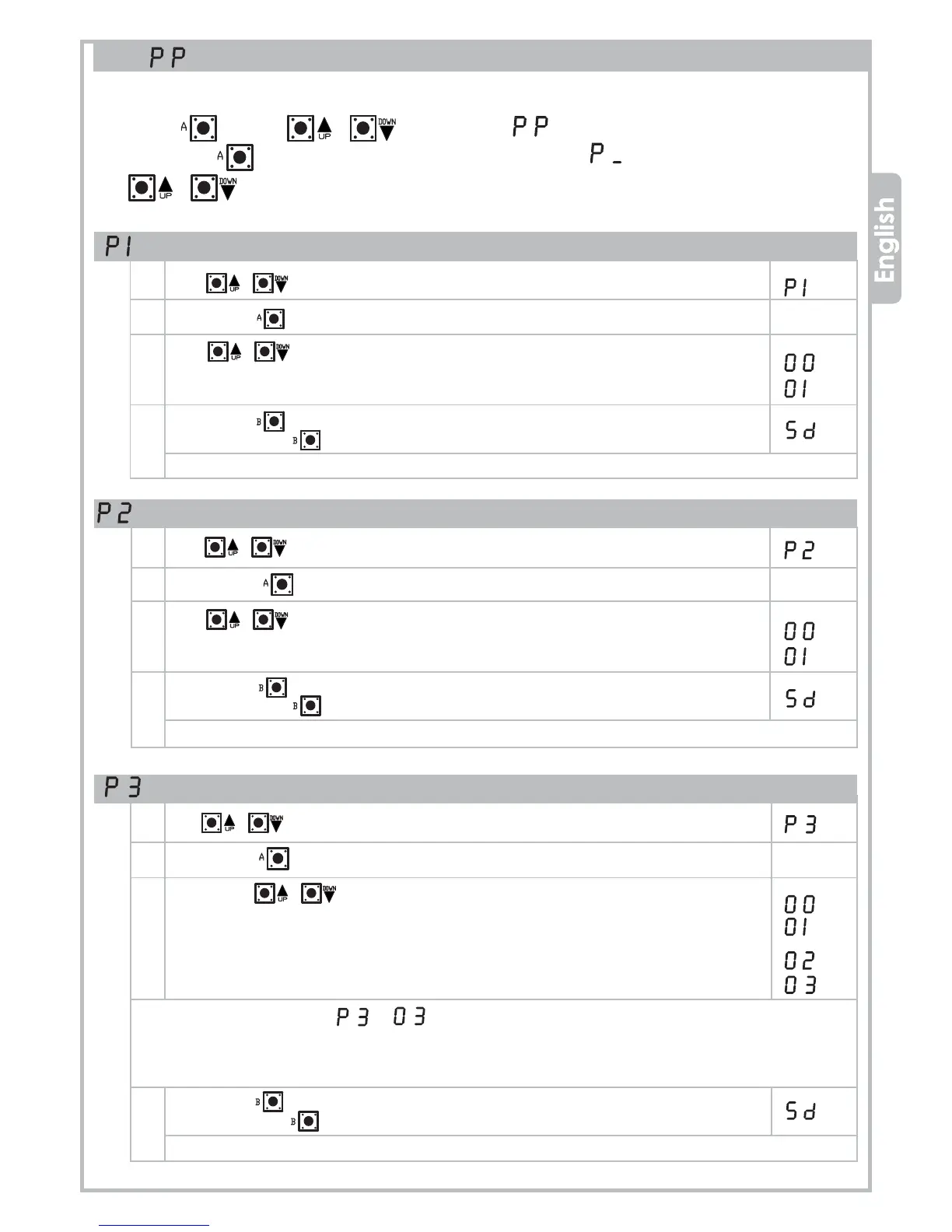

4.6 ACCESSORIES menu
Use this menu to manage terminals for wiring the accessories (controls and safety devices).
Press button and use to select menu ,
then press button to enter the ACCESSORIES menu: display will show
Use buttons to scroll the lower level menus:
EMERGENCY STOP terminals
1 Use buttons to move inside the menu, till the display shows:
2 Press button to confirm.
3 Use buttons to select:
STOP Push-button – NOT WIRED
STOP Push-button - WIRED
4 Press button to go back to the top level menus,
then press button again till the display shows:
or wait the timeout (20 seconds) to exit.
OPENING PHOTOCELLS / SAFETY EDGE terminals
1 Use buttons to move inside the menu, till the display shows:
2 Press button to confirm.
3 Usare i tasti per selezionare:
Opening Photocells/Safety Edges - NOT WIRED
Opening Photocells - WIRED
Standard Safety Edge (NC contact) - WIRED
8K2 Safety Edge - WIRED
If a 8K2 safety edge is wired ( = ), when detecting an obstacle the gate will STOP and:
• Reverse for about 10 cm when opening
• Reverse and open fully when closing
4 Press button to go back to the top level menus,
then press button again till the display shows:
or wait the timeout (20 seconds) to exit.
