Proteco Q80A User Manual

JP6
FLASH
24V ac
10 11
JP7
M1
PED
COM
12 13 14
JP8
M2
COM
15 16 17
J5
JP1
22
21
JP2
JP3
JP4
START
STOP
PED
1 2 3 4
JP5
5 6 7 8 9
RX -24V
TX - RX +24V
Test Photo TX -24
FOTO
FTAP
JP9
18 19 20
F
N
5 Q80A_8_2017
PROTECO S.r.l.
Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net

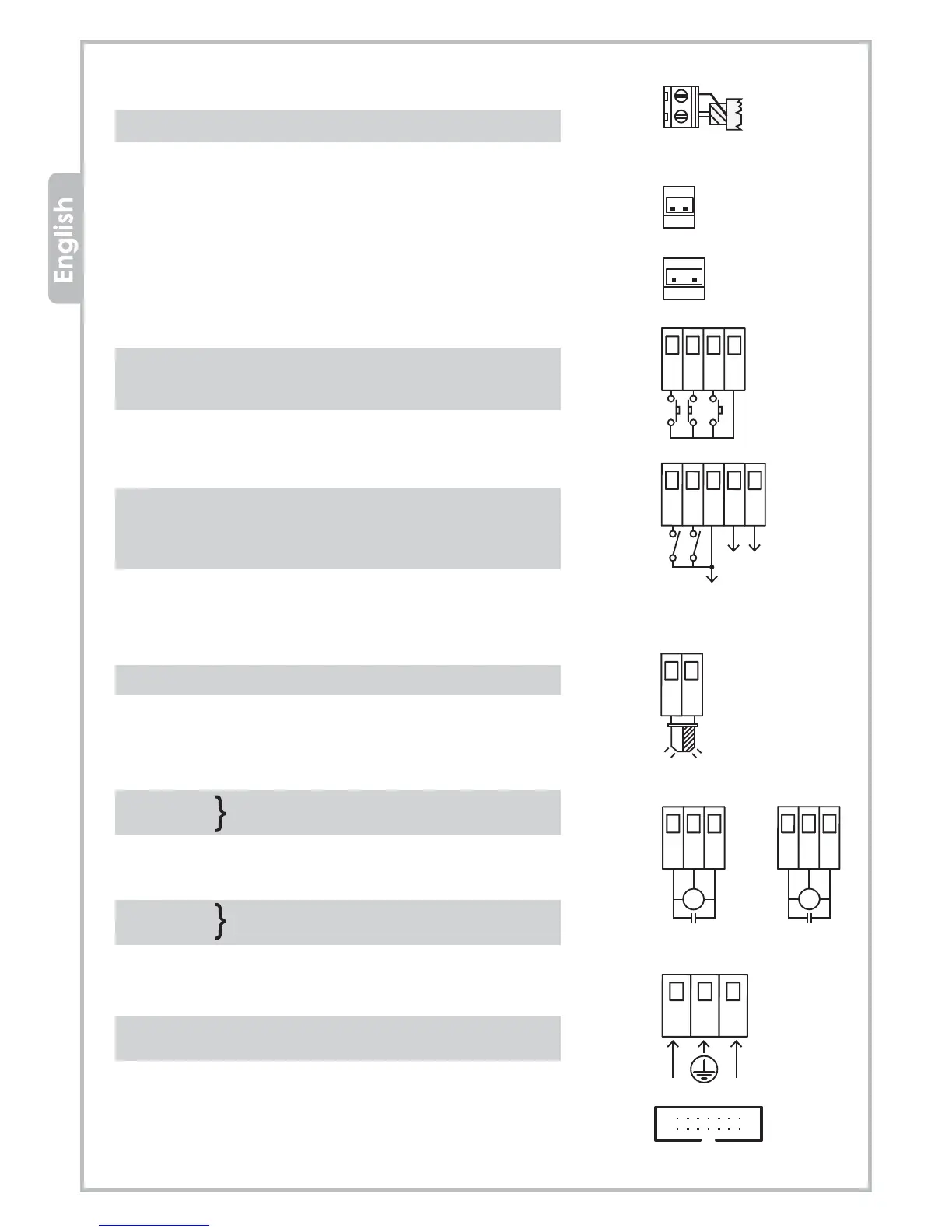

JP1 = AERIAL terminal block
21 aerial cable (SIGNAL)
22 aerial cable (EARTH)
JP2 = TRANSFORMER secondary plug 24Vac (red wires)
JP3 = TRANSFORMER main plug 230Vac (black wires)
JP4 = CONTROLS terminal block
1 START command (N.O. contact)
2 STOP command (N.C. contact)
3 PEDESTRIAN START command (N.O. contact)
4 NEUTRAL for controls
JP5 = PHOTOCELLS and SAFETY DEVICES
5 CLOSING PHOTOCELLS terminal (N.C. contact)
6 OPENING PHOTOCELLS terminal (N.C. contact)
7 Photocells RECEIVER power supply -24V
8 Photocells RECEIVER/TRANSMITTER
9 Photocell TRANSMITTER power supply -24V
JP6 = BLINKER terminal block
10 BLINKER power supply 24Vac
11 BLINKER power supply 24Vac
JP7 = MOTOR 1(M1) terminal block
12 OPENING
13 NEUTRAL terminal MOTOR M1
14 CLOSING
JP8 = MOTOR 2 (M2) terminal block
15 OPENING
16 NEUTRAL terminal MOTOR M2
17 CLOSING
JP9 = 230V MAIN POWER/EARTH terminal block
Pole disconnect means must be incorporated in the fixed
wiring to the control panel
J5 = plug for optional modules
OPEN
CLOSE
OPEN
CLOSE
OP PHOTO
NEU
NEU
P
