27
3 Assembling and disassembling
3.1 Trolley
1. Assembling

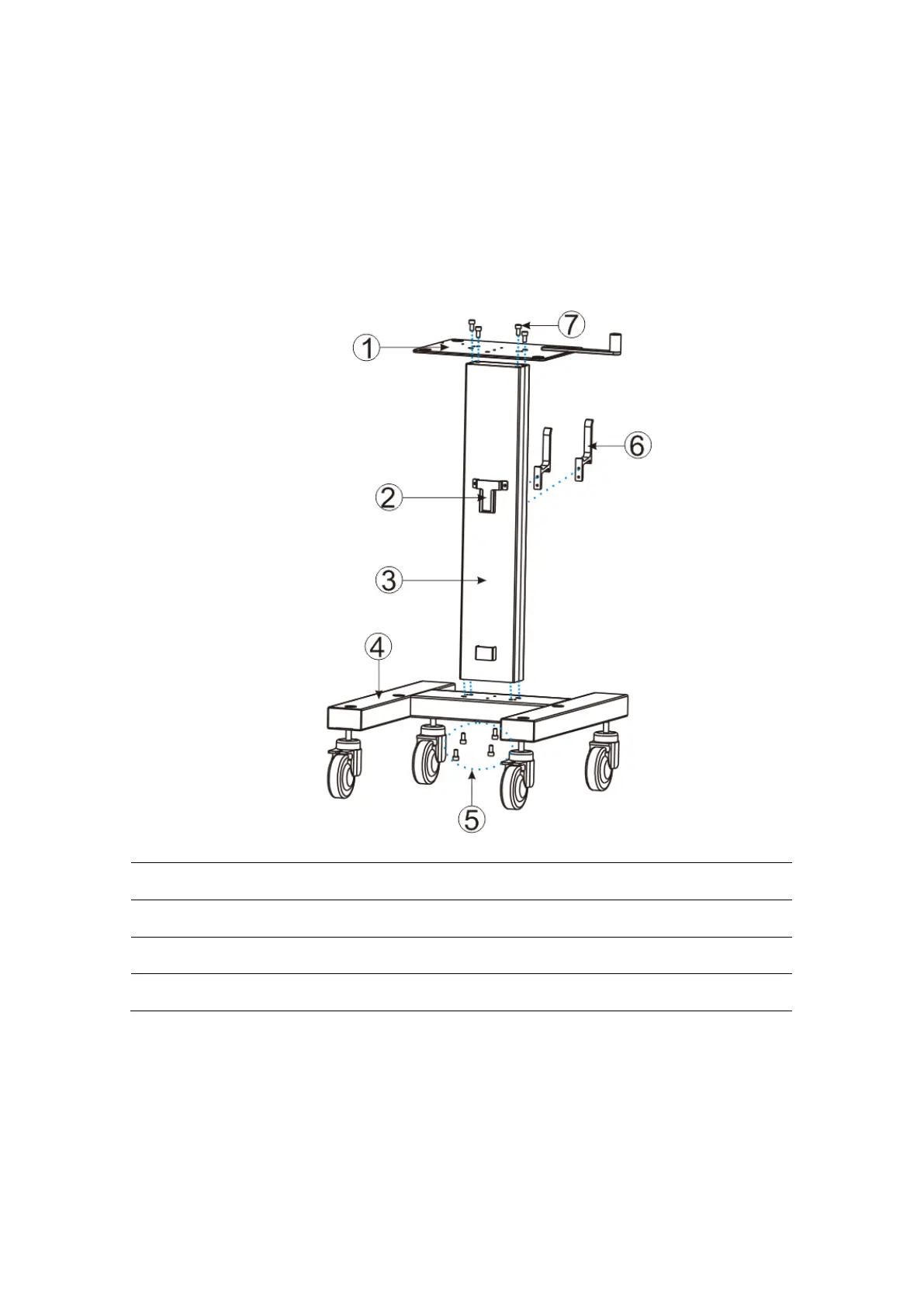

Figure 3-1 Trolley installation view
1. Trolley platform 5. M5 hexagon screws
2. Humidifier bracket 6. Hooks
3. Trolley pole 7. M5 hexagon screws
4. Trolley base
Assembling procedure:
1) Install the trolley pole into the trolley base, and use the four M5 hexagon screws ⑤ to
lock the pole from the bottom of the trolley.
2) Install the trolley platform① to the top of the pole, aligning the screw and lock the four
M5 hexagon screws ⑦ (Note that when installing the trolley platform, the 4
