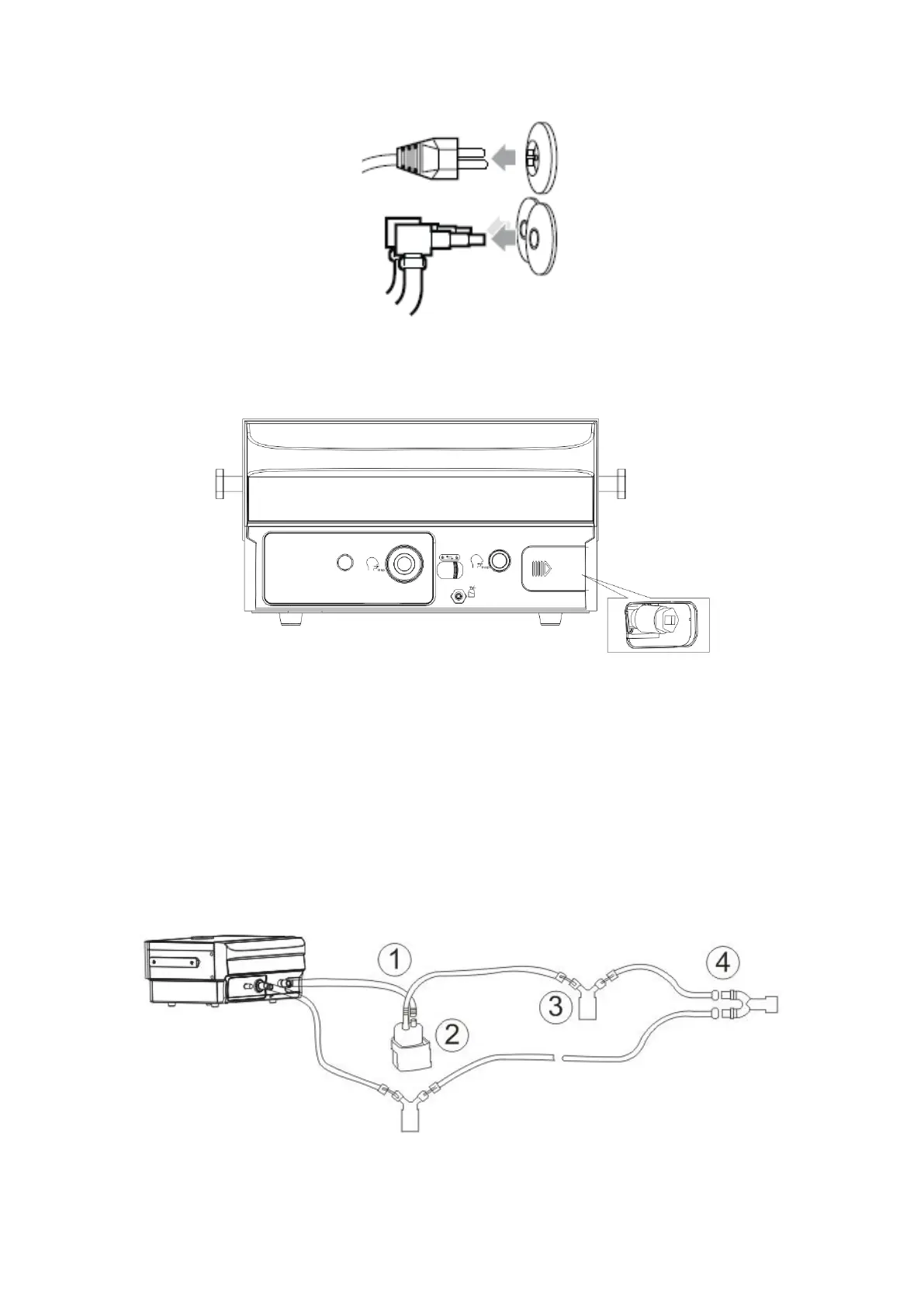

Figure 3-7 Main power supply and gas supply view
3) Push the cover to the right and remove it.
Figure 3-8 Oxygen sensor disassembly view
4) Unplug the sensor wire, and then pull out the oxygen sensor to take off the oxygen
sensor.
3.6 Patient system
1. Assembling:
Please connect the patient system as the diagram shown below.
Figure 3-9 Patient system connection view
