3.3 Ventilator system
1. Assembling:

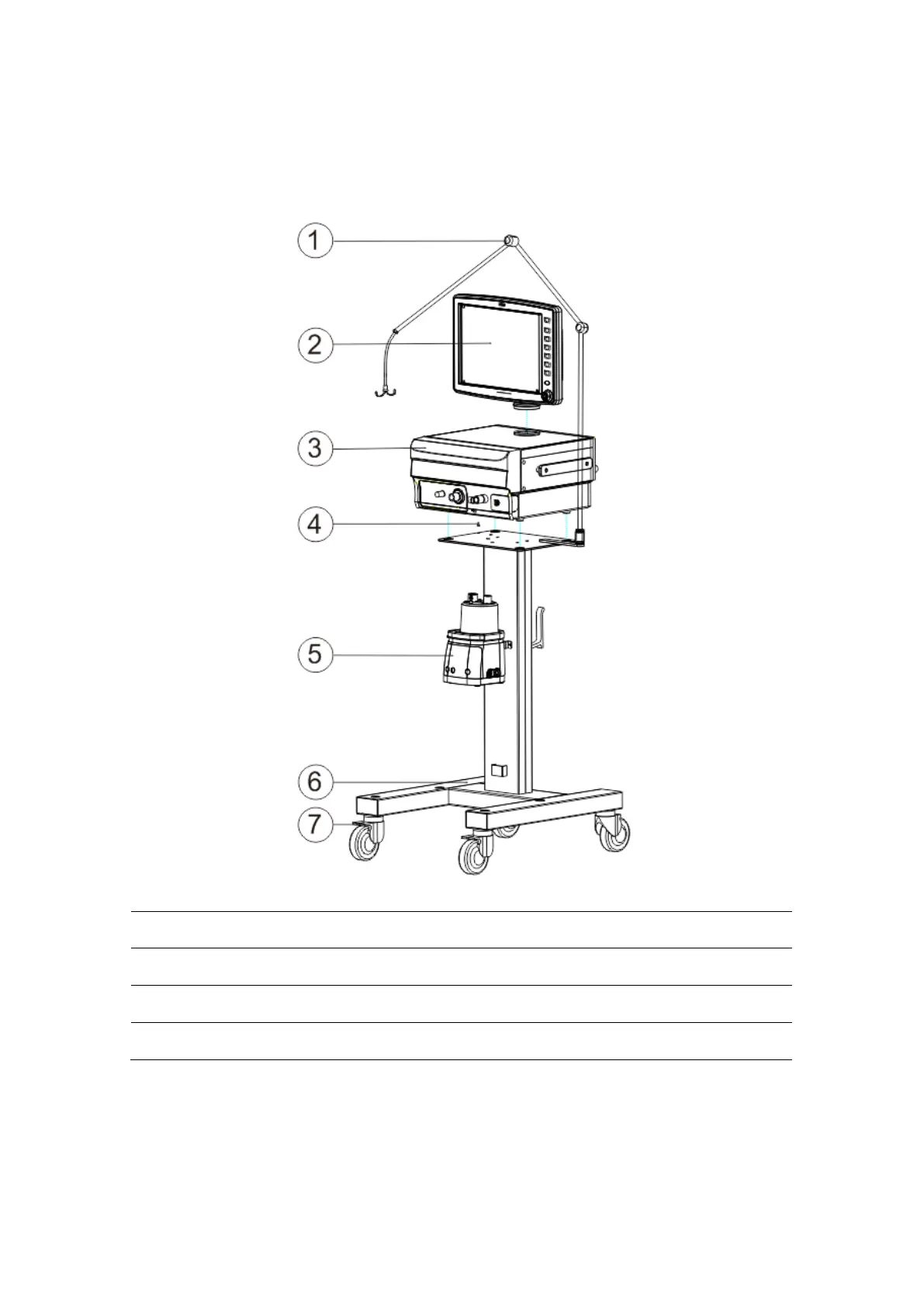

Figure 3-3 Ventilator system view
1. Mechanical arm 5. Humidifier
2. 15 inch display screen 6. Trolley
3. Main unit 7. Brake
4. Fixing screw for main unit
Assembling procedure:
1) Lock the brakes⑦ of the trolley, align the four foot pads on the bottom of the main
unit to the fixing holes of the trolley platform and make sure the four foot pads have
