62
5) Connect the IRMA / airway adapter 15mm female connector to the patient’s
endotracheal tube.

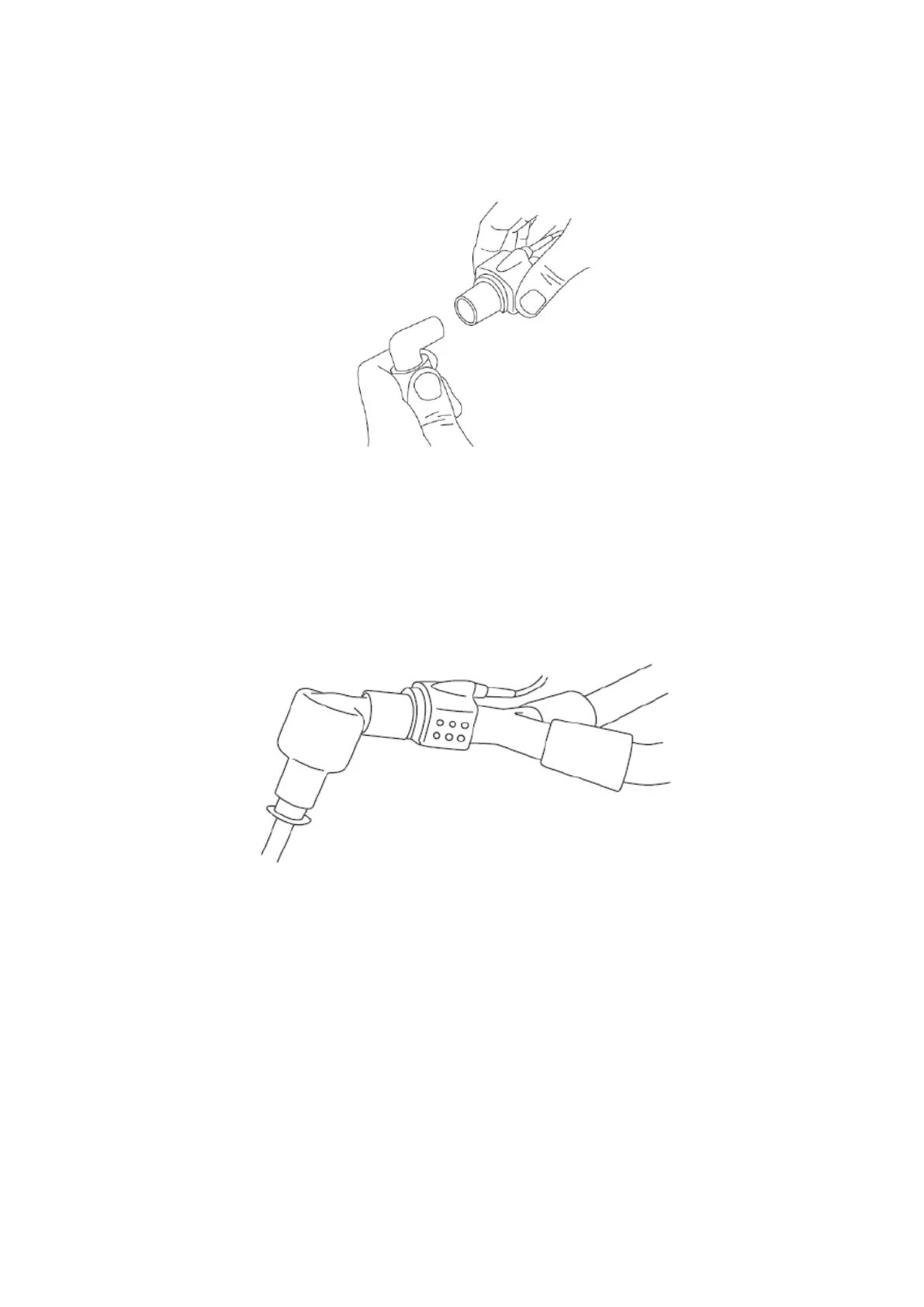

Figure 6-5 IRMA adapter connection view II
Alternatively, connect an HME (Heat Moisture Exchanger) between the patient’s
endotracheal tube and the IRMA probe. Placing an HME in front of the IRMA probe
protects the airway adapter from secretions and effects of water vapor and eliminates the
need of changing the adapter. It allows free positioning of the IRMA probe as well.
Figure 6-6 IRMA adapter and probe connection view
6) Unless the IRMA probe is protected with an HME always position the IRMA probe
with the status LED pointing upwards.
