980 DP Video Generator - User Guide Rev. A4
Page 103 July 14, 2014
5. Pattern List Editor
Use the following procedures to create a custom list of test patterns. The Pattern List Editor can be used either on
the embedded 980 GUI Manager or the external 980 GUI Manager. The examples in this procedure use the
external 980 GUI Manager.
5.1 Creating a custom list of test patterns
This subsection describes how you can create a custom pattern list.
To create a custom list of test patterns:

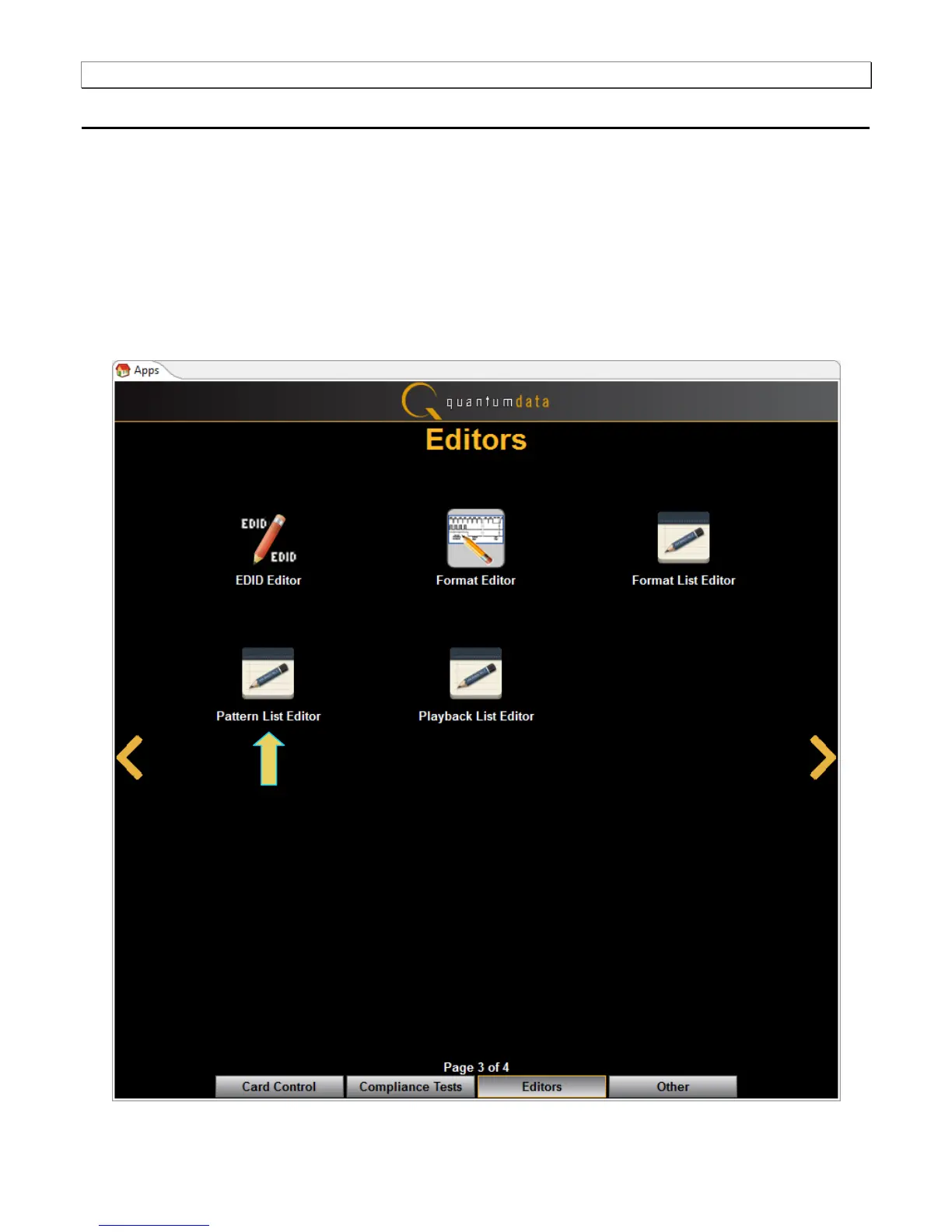

1. From the Editors Page of the Apps panel, select Pattern List Editor from the View menu as shown below.
