11.65 Format
11.65.1 Description

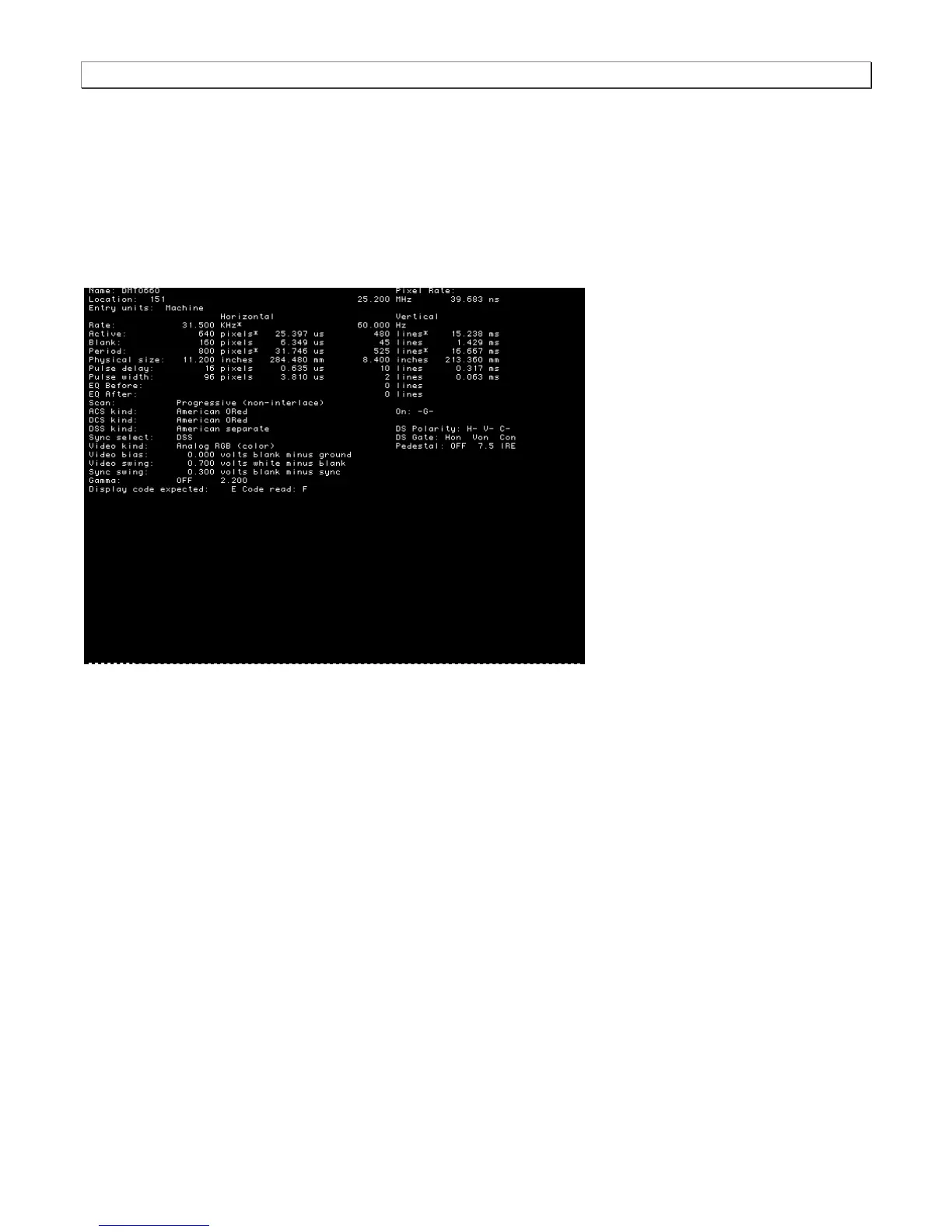

A listing of the data contained in any format. The primary image lists the settings of the format driving the display.
The secondary image can be used to list the contents of any stored format (via the Location field).
This pattern works best at display resolutions of at least 640 pixel by 480 lines.
