11.149 Regulate
11.149.1 Description
The image cycles between two (2) patterns. In the primary version, the first pattern is a white outline that defines
the edges of displayed video. The other pattern has the same outline plus a solid white rectangle in the center. The
size of the solid rectangle equal 95% of the height and width of displayed video. The speed of the cycle cannot be
changed. The secondary version has a thick white frame with a black center for the first
pattern and a solid white
active video area for the other pattern.

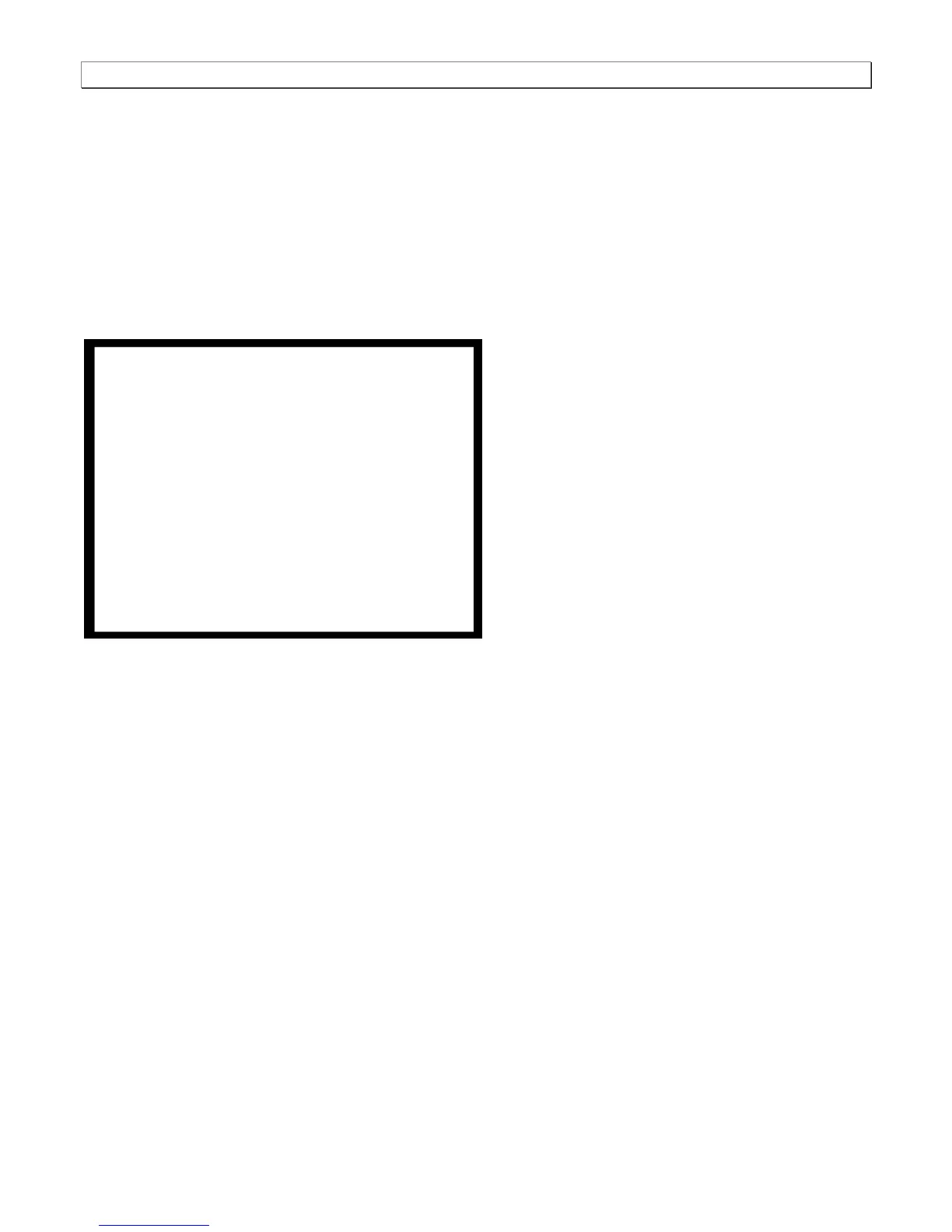

The first pattern of the primary version is shown below.
11.149.2 Test
High voltage regulation.
11.149.3 Method
The size of the border should not change for each half of the image. The change in border size between the two
images should be within the specification limits of the monitor.
