980 DP Video Generator - User Guide Rev. A4
Page 26 July 14, 2014
3.5 Selecting DP formats
Use the following procedures to select the mode, DP, in the 980 DP Video Generator module.
Note: There are two DP transmitter ports and one DP receiver port. Both transmitters are active and transmitting
the same content simultaneously.
To select interface (DP):

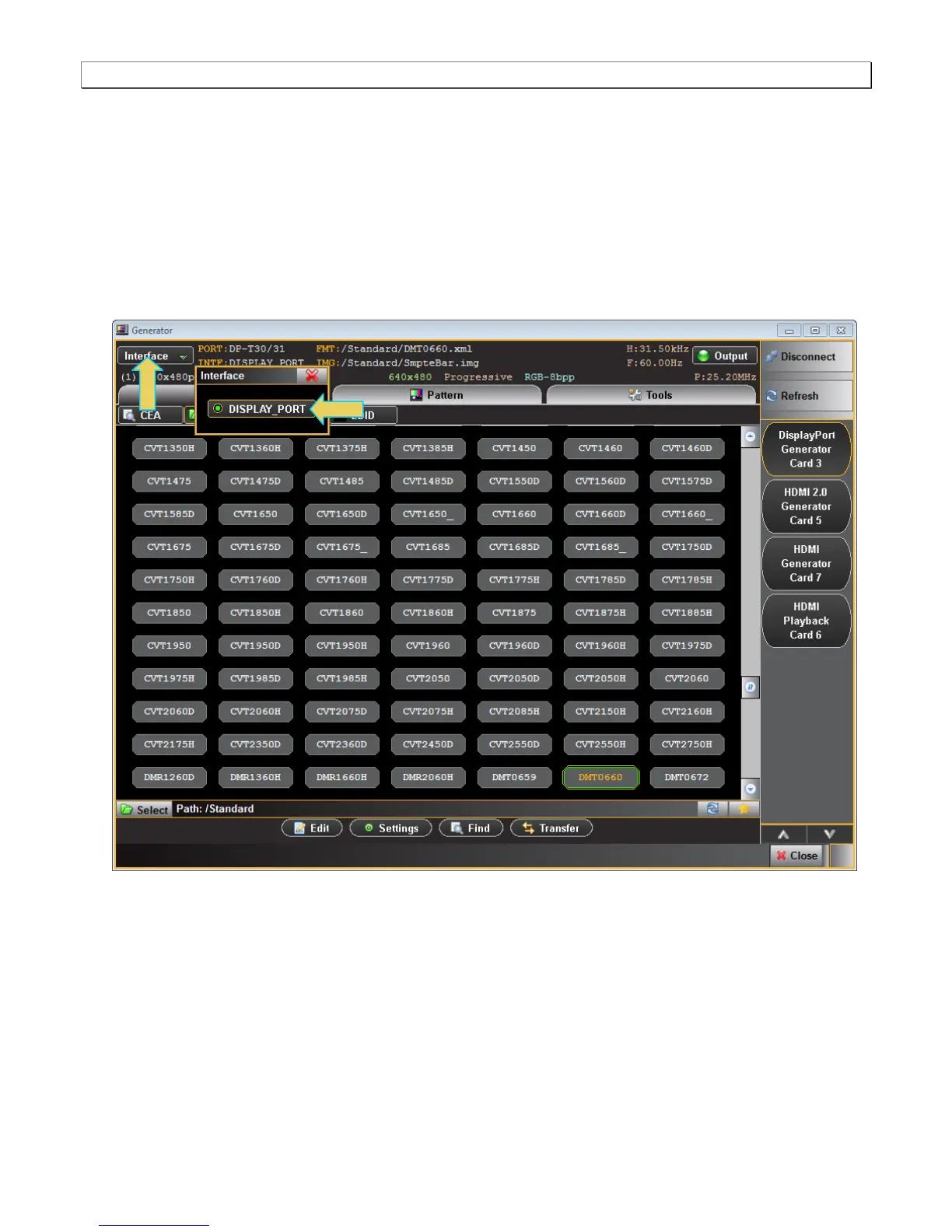

1. From the Main menu of the 980 DP Video Generator module, click the Interface button to select DP mode. In
this case, DP should be selected by default.
