980 DP Video Generator - User Guide Rev. A4
Page 350 July 14, 2014
11.150 Samsung1, Samsung2
11.150.1 Description

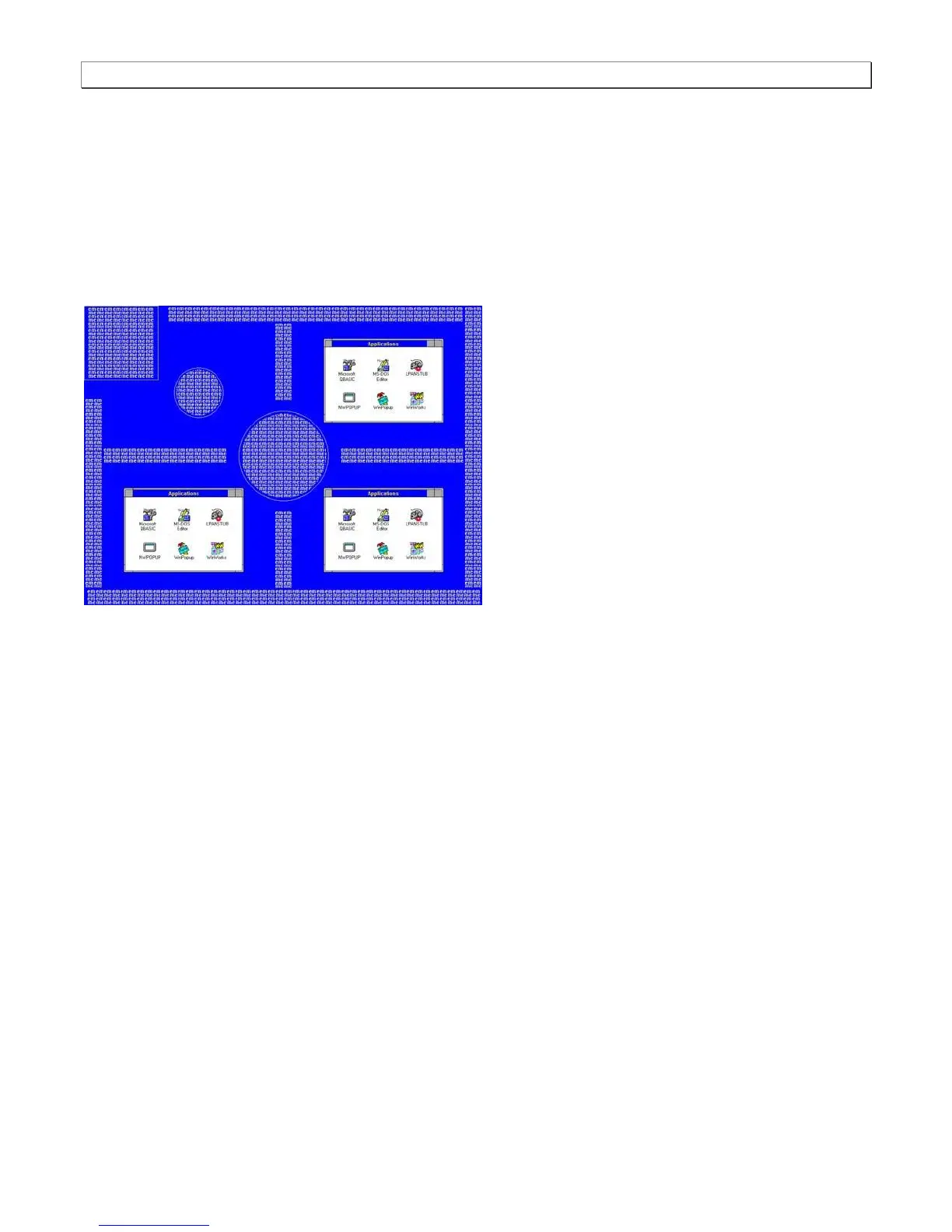

Special test images developed per customer specifications. The image consists of three small simulations of
Microsoft Windows® screens on a blue background (Samsung1) or
black background (Samsung2). A border and
centered cross are formed with repeating
groups of the characters “e” and “m”. The repeating characters are also
used to form a rectangular patch in the upper left hand corner and a circular area in the center of the image. The
secondary version of Samsung2 draws a white background.
