3.3 Making the physical DP connections
This subsection describes the physical DP connections required to run the video pattern tests on a DP display.

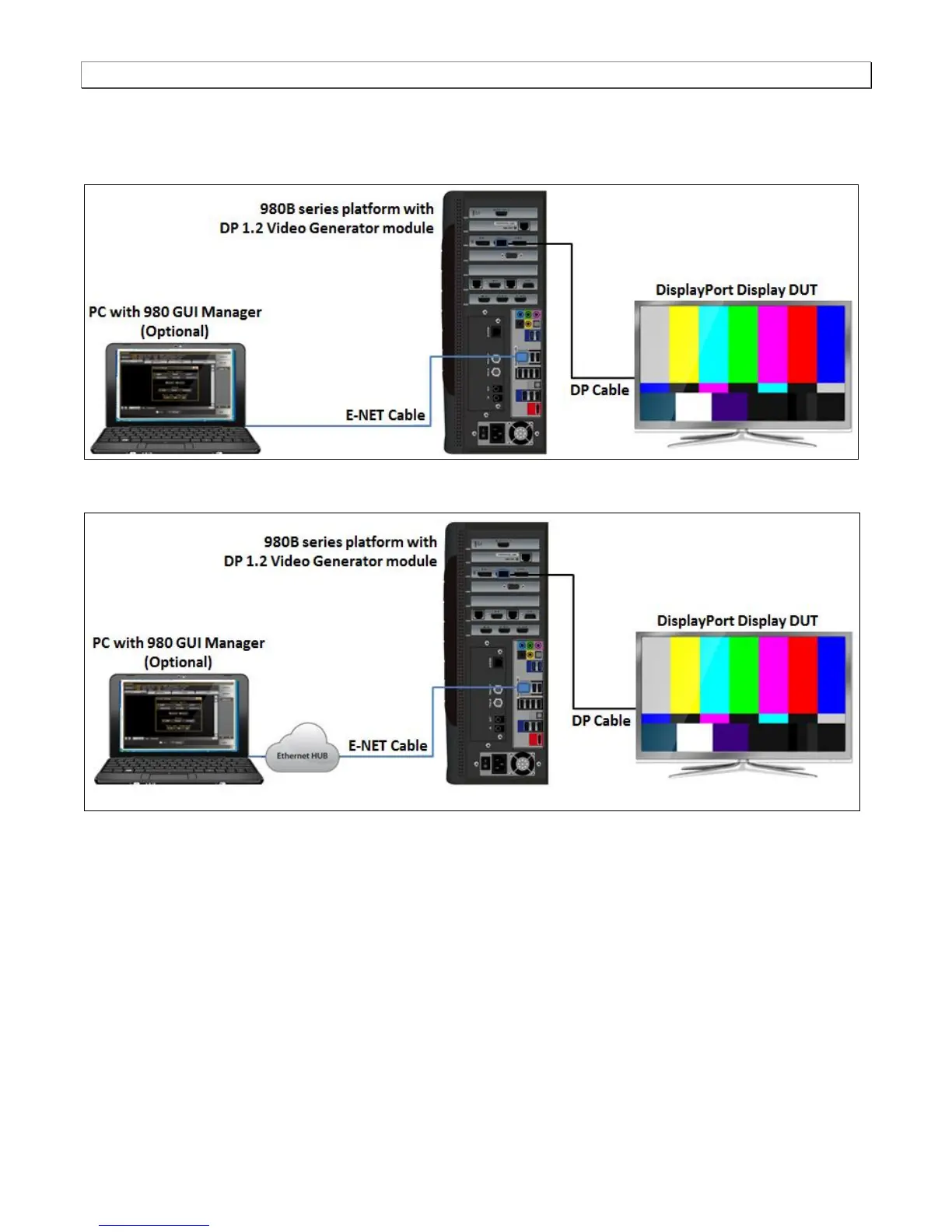

Connection for video testing – 980B Direct Connection (Side View)
Connection for video testing – 980B Ethernet hub or corporate LAN example (Side View)
