Quantum Data 980 DP - Connector Description

980 DP Video Generator - User Guide Rev. A4
Page 17 July 14, 2014

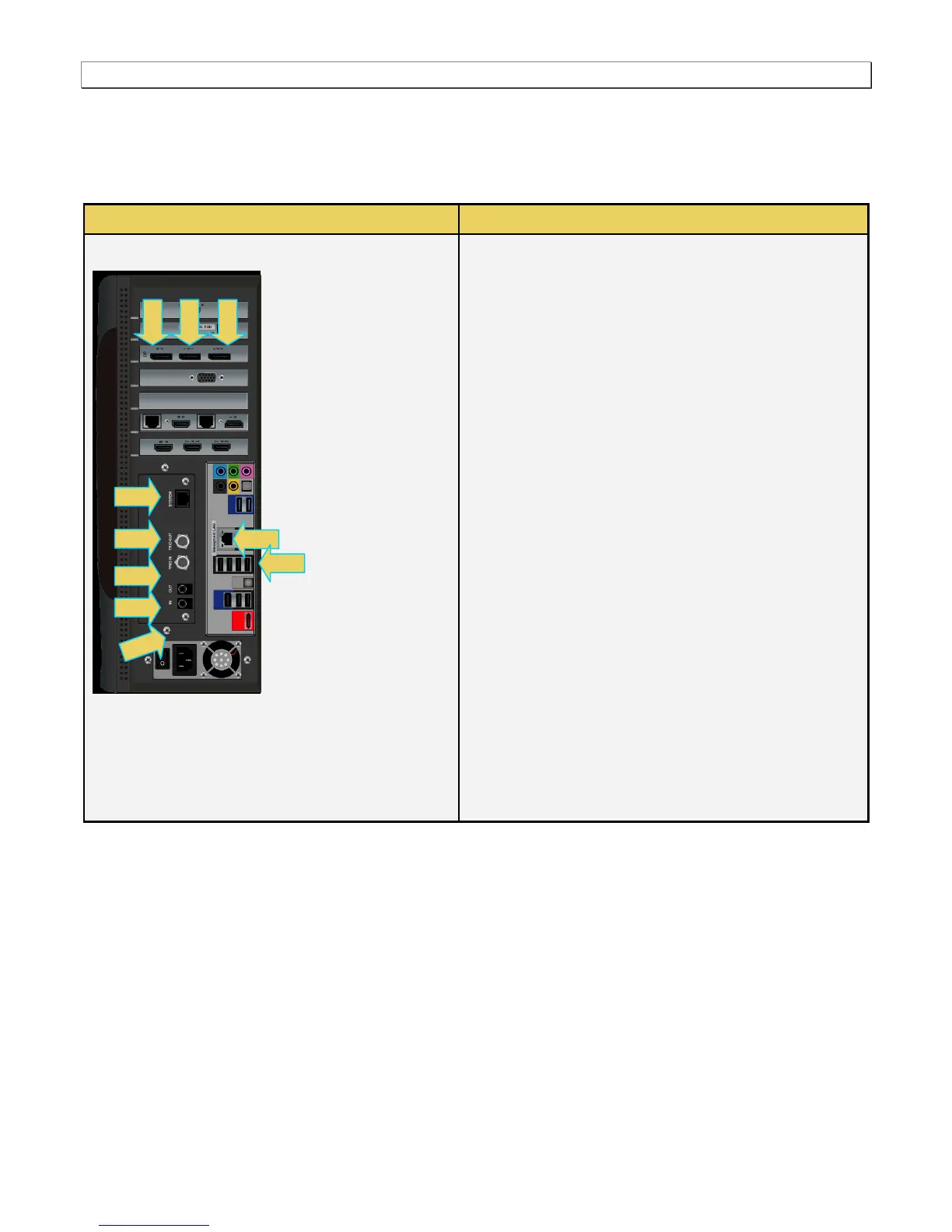

3.2 Connector Description
Use the following table to identify the connector function and descriptions on your 980 DP Video Generator
module.
980 Configurations
Information / Function
DP Video Generator module – 980B
The following is a description of each connector:
980 DP Video Generator module:
 A – DP Rx port for analyzing DP sources (optional
feature).
 B – DP Tx1 port for DP video/audio generation.
 C – DP Tx2 port for DP video/audio generation
(same output as Tx1).
Note: DP Video Generator can be installed in slots 3
or 6.
980B QD Bus Board:
 D – Internal Ethernet Tx connector; not used.
 E – BNC Trig OUT connector. Not used for this
module.
 F – BNC Trig IN connector. Not used for this module.
 G – RCA OUT connector for SPDIF function. Not
used for this module.
 H – RCA IN connector for SPDIF function. Not used
for this module.
980B Lower Panel:
 I – Ethernet port for connection to PC host for 980
GUI Manager application, telnet for command line
control and FTP for transferring files.
 J – Various USB ports for transferring files and
restoring system.
A
B
C
D
E
G
H
F
I
J
