Use the following table to identify the connector function and descriptions on your 980R system configuration.
980B Configurations
Information / Function
DP Video Generator module – 980R
The following is a description of each connector:

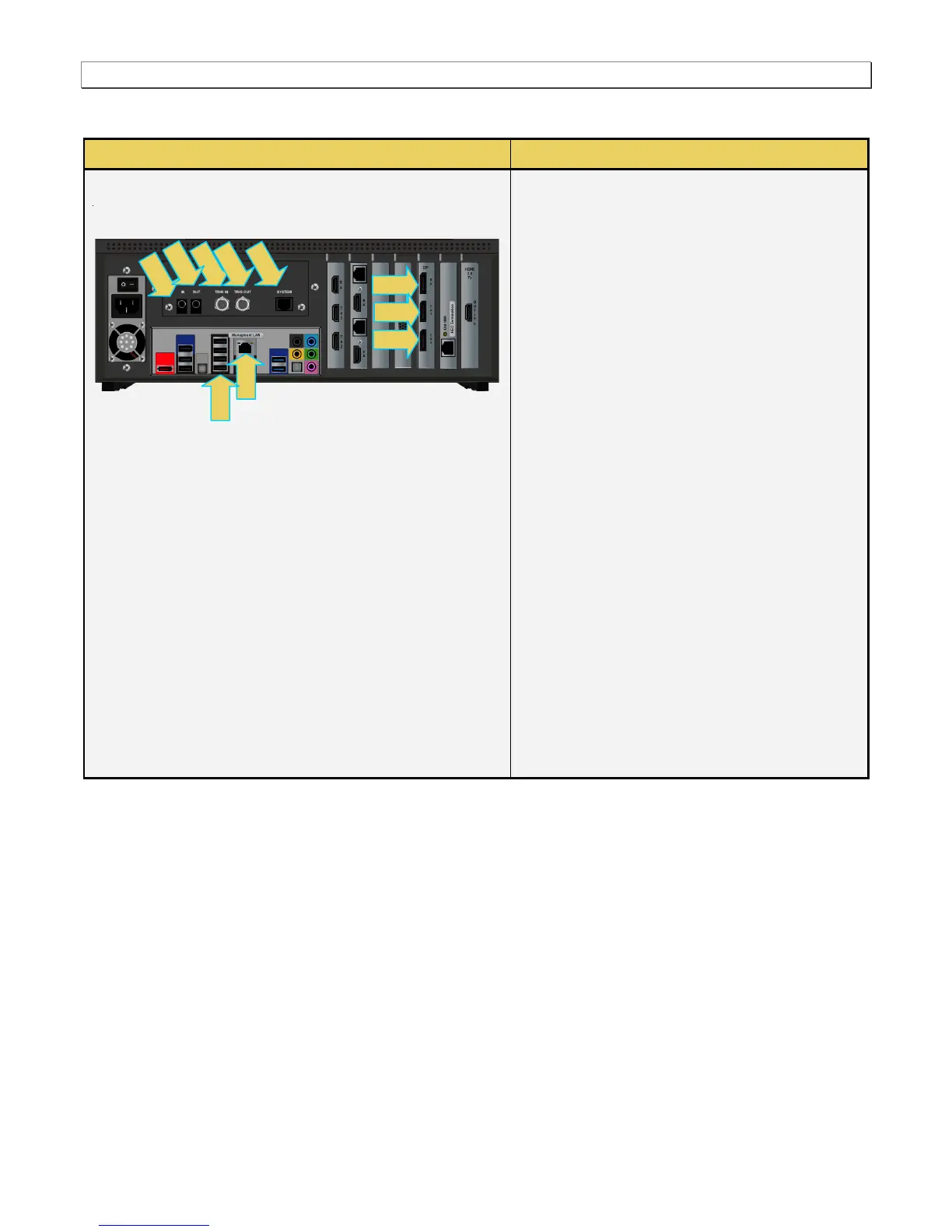

980 DP Video Generator module:
 A – DP Rx port for HDMI video analysis
(optional feature).
 B – DP Tx1 port for HDMI video generation.
 C – DP Tx2 port for HDMI video generation.
Note: DP Video Generator can be installed in
slots 1, 3 or 6.
980R QD Bus Board:
 D – Internal Ethernet Tx connector; not used.
 E – BNC Trig OUT connector. Not used for
this module.
 F – BNC Trig IN connector. Not used for this
module.
 G – RCA OUT connector for SPDIF function.
Not used for this module.
 H – RCA IN connector for SPDIF function.
Not used for this module.
980R Lower Panel:
 I – Ethernet port for connection to PC host for
980 GUI Manager application, telnet for
command line control and FTP for
transferring files.
 J – Various USB ports for transferring files
and restoring system.
A
I
J
D
H
F
E
G
B
C
