11.143 Ramp12
11.143.1 Description
This image is used to view a specific range of grayscale levels (ranges up to 1024) throughout the entire range
allowed by deep color support in the generator (i.e. 36 bit/pixel or 12-bit/component = 4096). If you set the ramp to
display the maximum color depth supported by the display under test you will see a nearly uniform ramp depending
on the horizontal resolution of the active format.

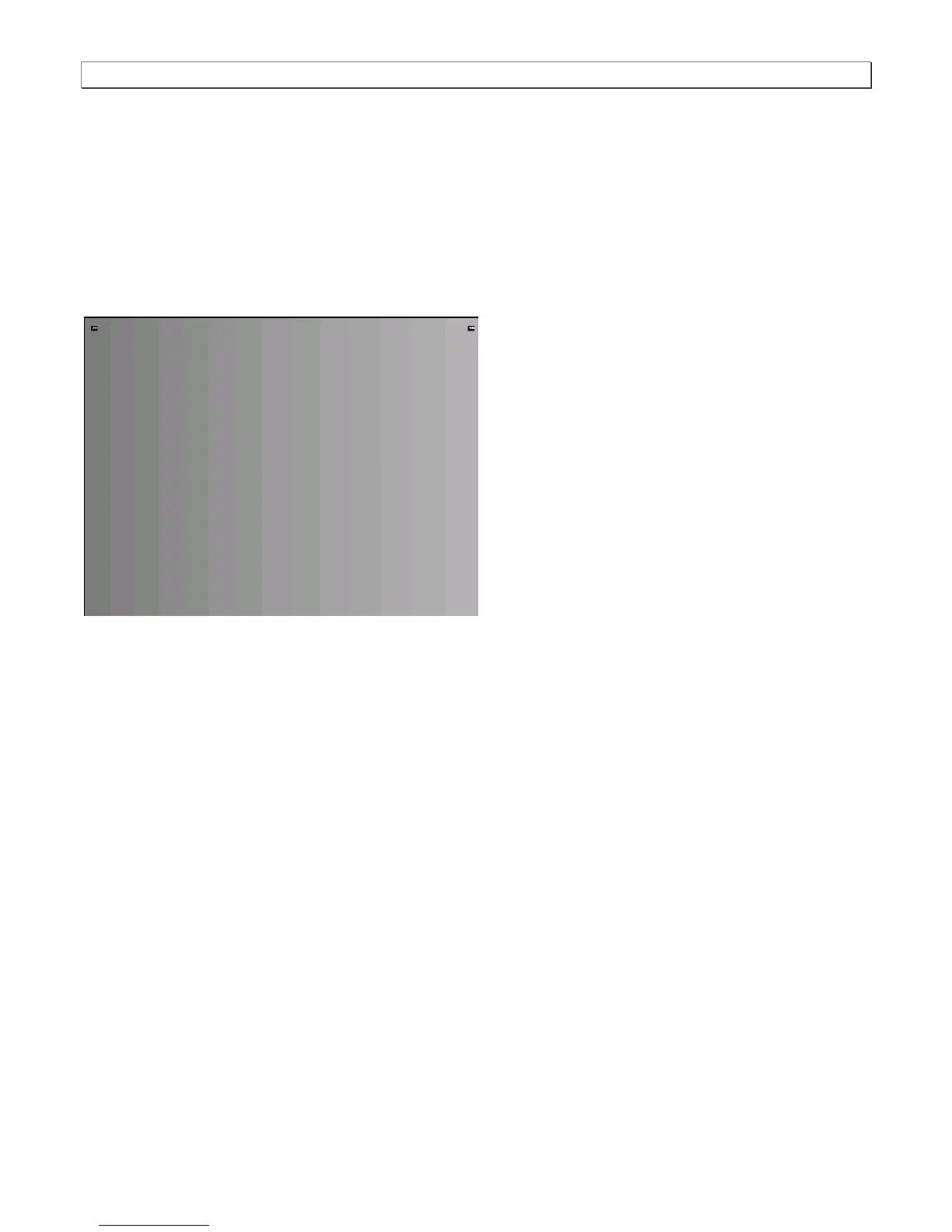

The following is a sample of the Ramp12 image is rendered on a display.
