980 DP Video Generator - User Guide Rev. A4
Page 21 July 14, 2014
1. Connect your DP display device under test to one of the DP Tx connectors on the 980 DP Video Generator
module. Use a DP-compliant cable.

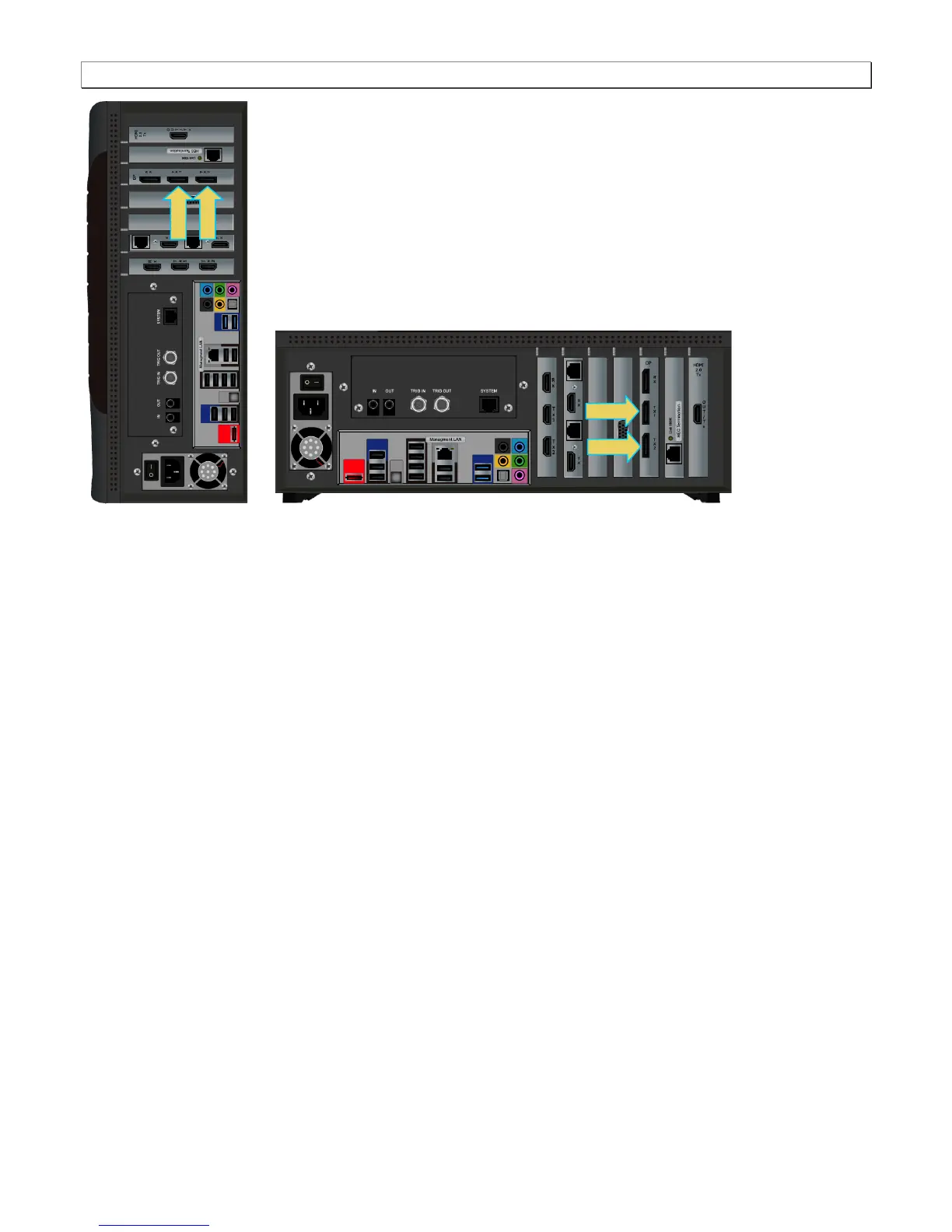

Note: The DP Video Generator module can be installed in either slot 3 (shown) or slot 6 of the 980B and slot 1,
3 or 6 in the 980R.
3.4 Navigating through the 980 GUI Manager interface
Use the following procedures to navigate to the 980 DP Video Generator module testing functions. You can access
the 980 DP Video Generator module functionality through the Card Control tab (Page 1 of 4) of the Apps panel.
Use the procedures provided below.
To navigate to the video test functions:
1. From the View menu, enable select the Generator item.
To Next Page
