7.3.3 New Format - General Tab

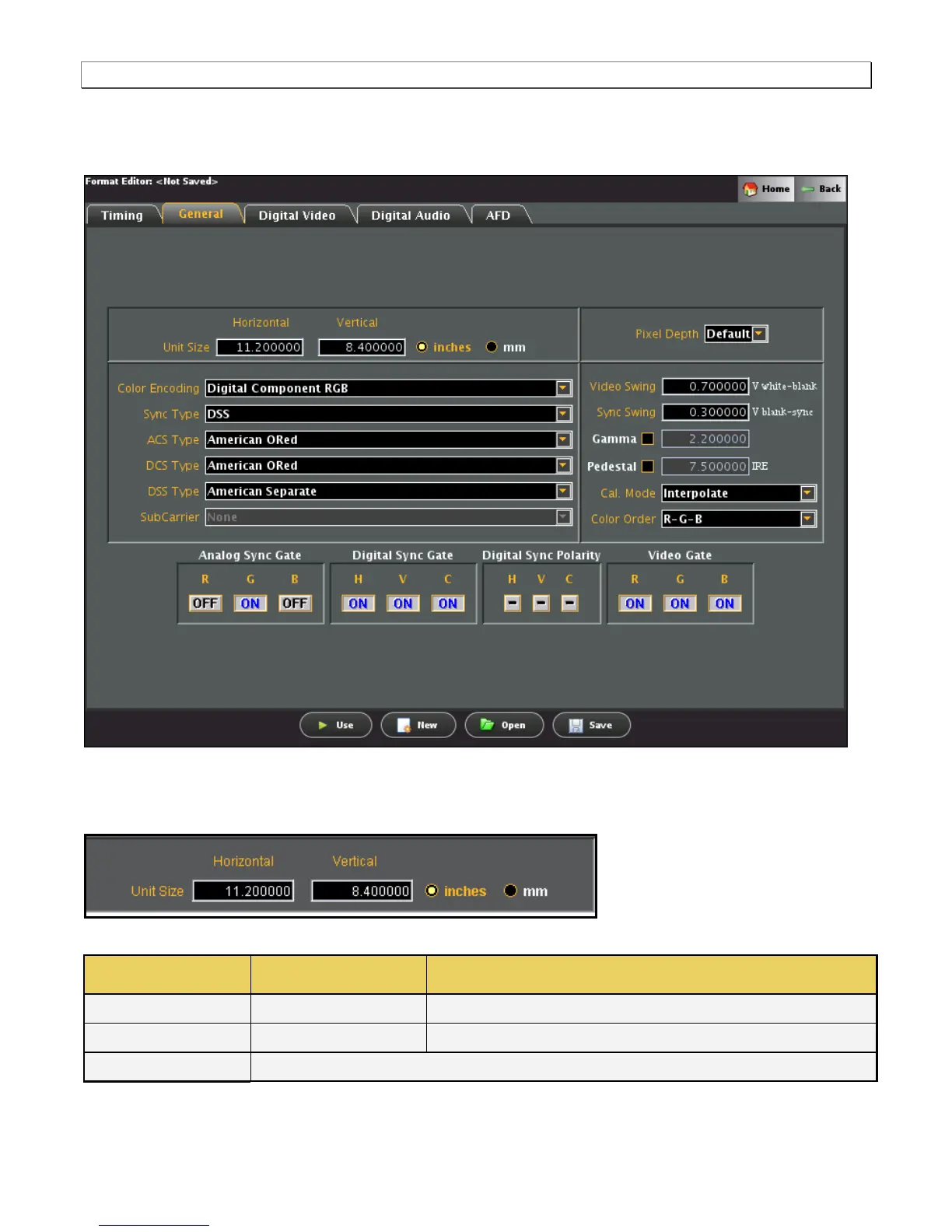

The Format Editor General tab is shown below. The table that follows describes each of the fields in the tab.
7.3.4 New Format - General Tab (Top Left Panel)
The top left panel of the General tab in the Format Editor is shown below.
The table that follows describes each of the fields in the top left panel of the General tab.
Field / Entity
Type
Description / Function
Horizontal
Entry field
The horizontal aperture of the display under test.
Vertical
Entry field
The vertical aperture of the display under test.
Unit Size
Radio Buttons:
