980 DP Video Generator - User Guide Rev. A4
Page 172 July 14, 2014

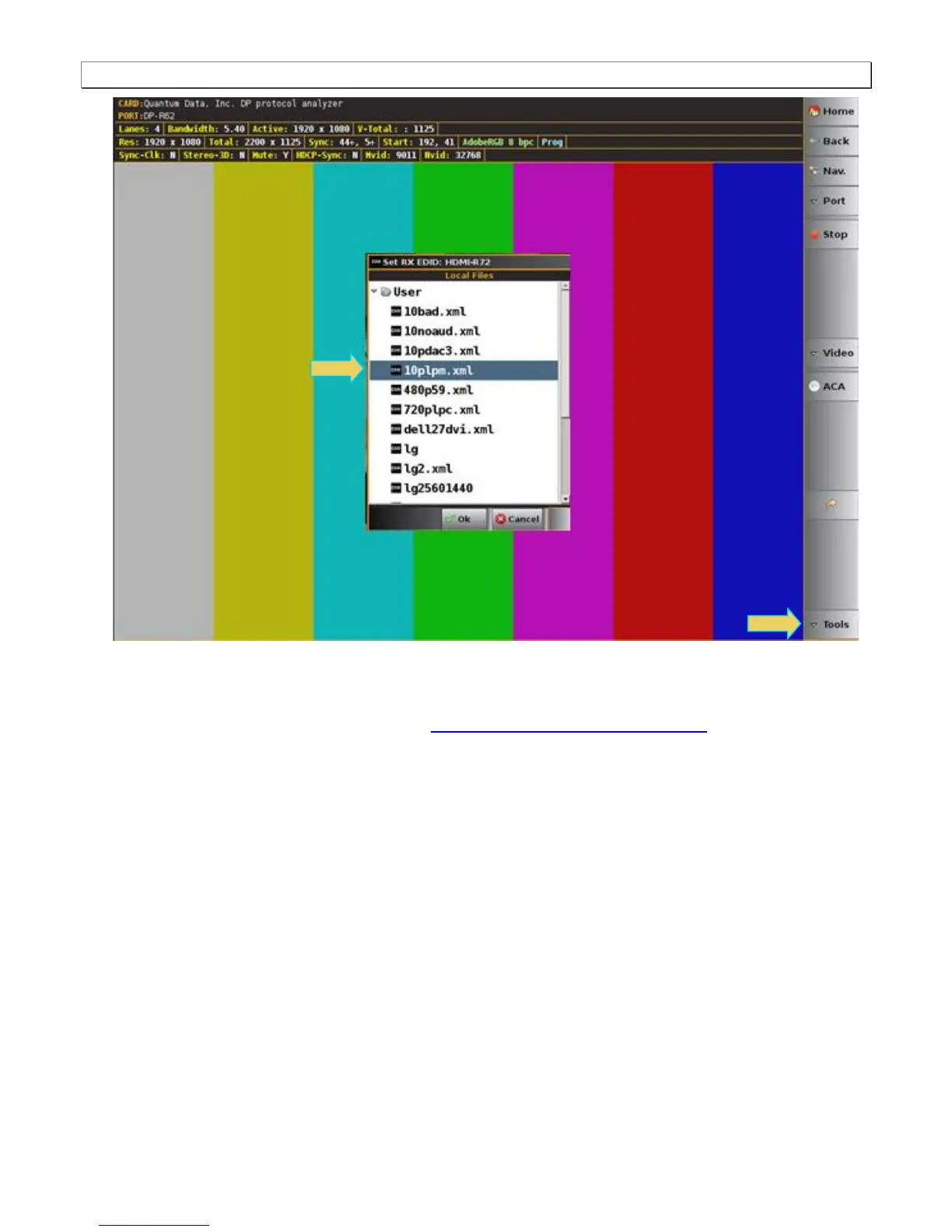

2. Select the EDID that you wish to emulate on the module’s Rx port and then click on OK.
The 980 DP Video Generator’s Rx port will emulate the EDID you selected.
Refer to the section in the User Guide entitled Capturing EDIDs of a connected display for instructions on how
to capture EDIDs from HDTVs.
8.5.5 Generating Hot Plug
The 980 DP Video Analyzer enables you to generate a hot plug to cause a source device to read and EDID and
initiate HDCP authentication.
1. Initiate a hot plug from the Tools fly-out menu.
