Troubleshoot/Problem Solving 153
• 2U24 RAID Chassis CRUS (Front)
• 2U24 QXS-G2-324 RAID Chassis CRUS (Rear)
• 2U24 QXS-G2-424 RAID Chassis CRUS (Rear)
• 2U24 Expansion Chassis CRUs (Front)
• 2U24 Expansion Chassis CRUs (Rear)
2U24 RAID Chassis CRUS (Front)

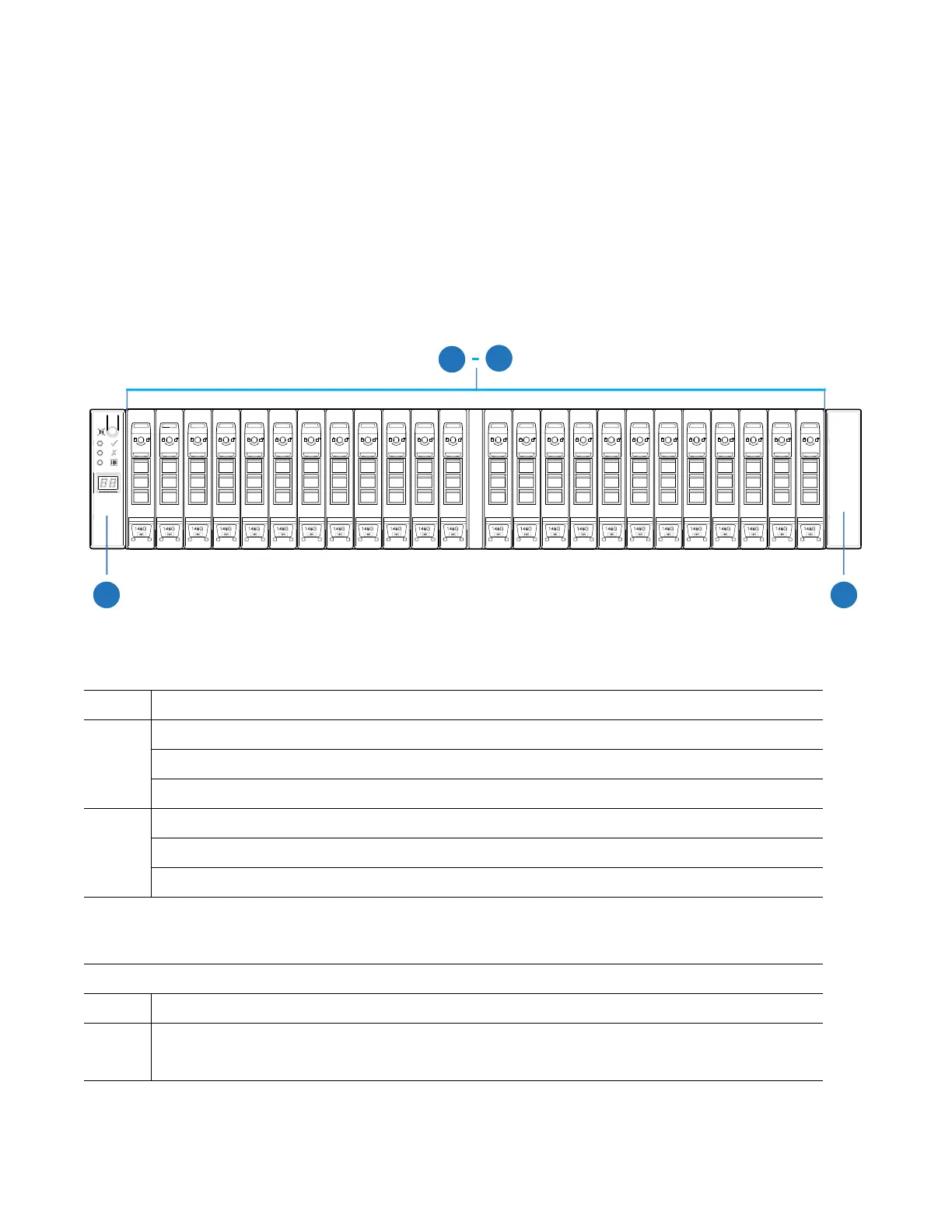

Figure 114 provides the location of the 2U24 RAID chassis CRUs (front). The QXS-G2-324 and
QXS-G2-424 both look the same in front.
Figure 114 2U24 RAID Chassis CRUS (Front)
Tabl e 4 0 provides a list of CRUs in the 2U24 RAID chassis (front and additional CRUs not shown).
01
2345
6
78
9
10 11 12 13 14 15
16 17
18
19 20
21 22
23
24
24
23
0
Ta b l e 4 0 2U24 RAID Chassis CRUs (Front)
Item Chassis Component Description
0-23 Drives
• 2.5" drive module (SFF)
• Dummy drive carrier module (blank to maintain optimum air flow within chassis)
24 Ear components
• Left ear assembly
• Right ear assembly
Note: The 2U24 RAID Chassis bezel is a CRU (not shown) and can be replaced.
See Removing a 2U Bezel on page 167 and Installing a 2U Bezel on page 167 for the 2U24 bezel
replacement.
Additional CRUs Not Shown
Chassis Chassis (sheet metal chassis that is configurable as a RAID or expansion chassis)
Rail Kit Rail kit (variable attachment options)
2U rack mount kit, shelf, short, all HW
