Troubleshoot/Problem Solving 159
IMPORTANT: Drawer sideplanes—also known as side cards—can be hot-swapped as
field-replaceable units (FRUs).
However, these FRUs require a special tool, and replacement should be performed by qualified service
personnel only.
Contact your service provider for more information.
NOTE: Figure 120 displays the front of the drawer on the left side of the illustration. The back of the
drawer is on the right side of the illustration.

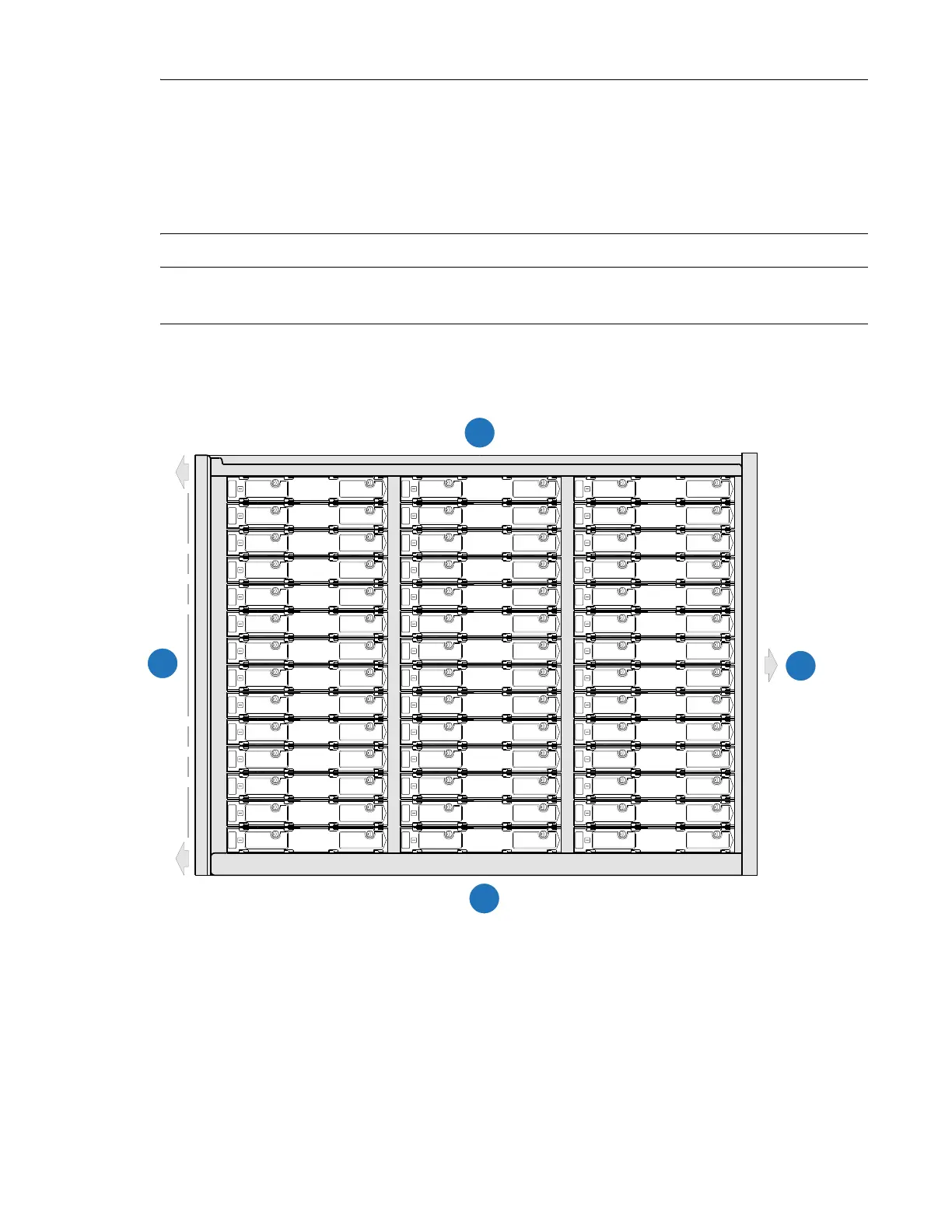

Figure 120 5U84 RAID or Expansion Chassis Drives (CRUs)
2
1
3
0/42
2/44
1/43
3/45
4/46
5/47
6/48
7/49
8/50
9/51
10/52
11/53
12/54
13/55
14/56
15/57
16/58
23/65
18/60
19/61
20/62
21/63
22/64
41/83
17/59
25/67
26/68
27/69
28/70
29/71
30/72
31/73
24/66
37/79
38/80
35/77
39/81
33/75
34/76
36/78
40/82
32/74
1
Drawer 0/1 Front
2
Drawer 0/1 Left Side
3
Drawer 0/1 Rear (slides into chassis)
4
Drawer 0/1 Right Side
