Installation 81
2U12/2U24 (2-Host Ports) Two Servers/Two Switches

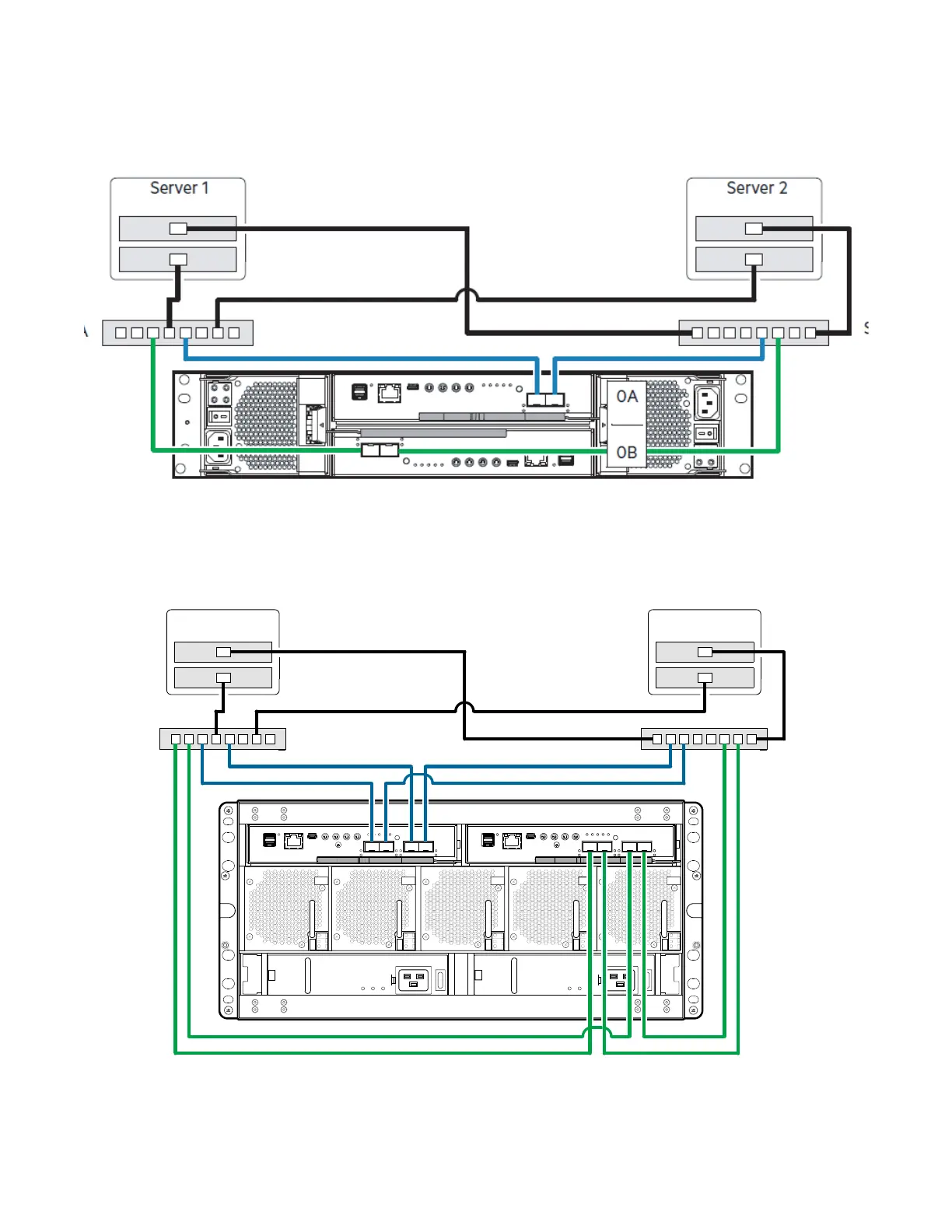

Figure 78 provides an illustration of connecting a 2U12/2U24 to two servers and two switches.
Figure 78 2U12/2U24 Two Servers/Two Switches
5U84 Two Servers/Two Switches
Figure 79 provides an illustration of connecting a 5U84 to two servers and two switches.
Figure 79 5U84 Two Servers/Two Switches
5U84 RAID Chassis
Server 1 Server 2
To Next Page
