RadioLink AT10 User Manual

13
• When you install the switch harness to the helicopter, please use the switch cover. Generally sandwich the frame by
switch and switch cover and securely tighten the screws. Different models might require different installations. In that
case, please follow the model instruction manual.
Fasten about 5-10cm
from the servo outlet
so that the lead wire
is neat.
Marg
in i
n the lead wire
i
7RSUHYHQWWKHVHUYROHDGZLUHVIURPEHLQJEURNHQE\YLEUDWLRQGXULQJÀLJKW
provide a margin so that the wire sticks out slightly and fasten it at suitable
points. In addition, periodically check the wire during daily maintenance.
IMPORTANT: Since the 2.4GHz have different characteristics than that of the conventional 27MHz and 72MHz
IUHTXHQFLHVSOHDVHUHDGWKLVVHFWLRQFDUHIXOO\WRHQMR\VDIHÀLJKWZLWKWKH*+]V\VWHP

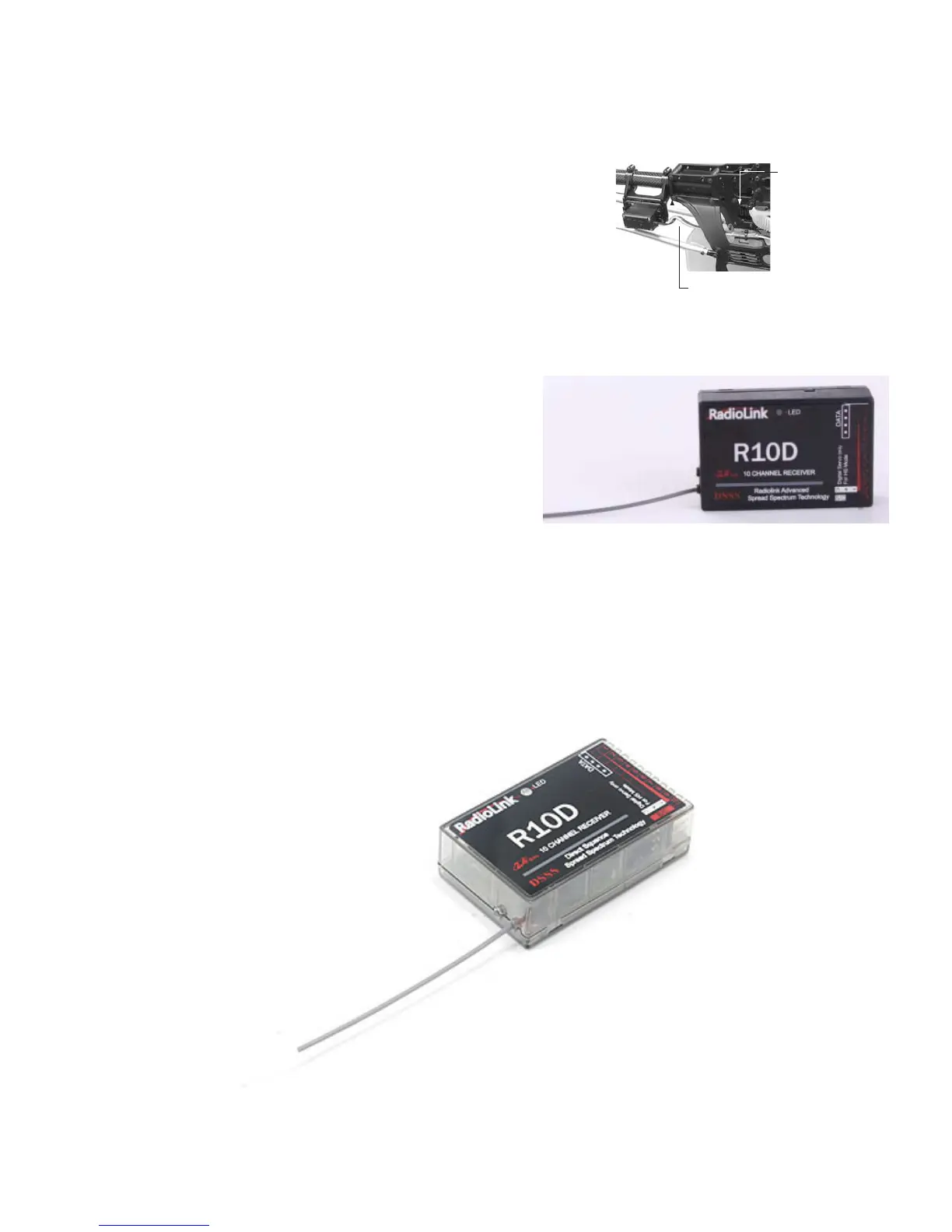

5HFHLYHUV$QWHQQD,QVWDOODWLRQ
• The antenna has a diversity
a receiving error.
• Since the wavelength of the 2.4GHz is much shorter than that
of the conventional frequencies 27MHz and 72MHz, it is very
susceptible to loss of signal which results in a receiving error.
In order to avoid this phenomenon, the R10D adopted a
diversity antenna system.
• To obtain the best results of the diversity function, please refer to the following instructions;
1. The antenna must be kept as straight as possible. Otherwise it will reduce
the effective range.
2. The antenna must be kept away from conductive materials, such as metal and
coaxial part of the antennas does not need to follow these guidelines, but do not bend it
in a small radius.
3. Keep the antennas away from the motor, ESC, and other noise sources as much as possible.
function to decrease the chance of
carton by the at least a half inch.The

RadioLink AT10 Specifications

General

Channels	10
Frequency	2.4GHz
Output Signal	PPM
Control Distance	1.5km
Compatibility	Compatible with most multi-rotor, airplane, helicopter and car models
