GOAL of EXAMPLE: STEPS: INPUTS:
Change
ATL
from
ON
to
OFF
for battling
robot, tank, airbrake and other channel
3 uses.
Open
BASIC
menu, then open
PARAMETER
submenu.
for 1 second.
(If
ADVANCE
, again.
C
to
PARAMETER
.
Go to
ATL
and Change. (Ex: to
OFF
)
C
to
ATL
. to
OFF
.
Close.
Where next? Set up
ELEVON
IRUWDQNVW\OHFRQWUROWKURWWOHVWHHULQJRQRQH67,&.VHHS
Set up
IDLE-DOWN
and
THR-CUT
to adjust channel 3 servo at low-stick: see p. 28.
5HDVVLJQDX[LOLDU\FKDQQHOVH[IURPGLDOWRVZLWFKVOLGHUVHHS
Utilize servo
REVERSE
: see p. 26.
Adjust servo travel with
END POINT
: see p. 27.
6HWXSGXDOWULSOHUDWHVDQGH[SRQHQWLDO
D/R
,
EXP
): see p. 30.
LCD screen backcolor adjustment
BACKCOLOR
: set a LCD screen backcolor from Black to Blue, or Green.
Home screen display mode selection (
HOME-DISP
) (
HELI
only): selects the display item in the home screen for
HELI
.
ILLUST
: displays the illustration of helicopter in the home screen. (default)
THR/PIT
: displays the current throttle and pitch position in the home screen.

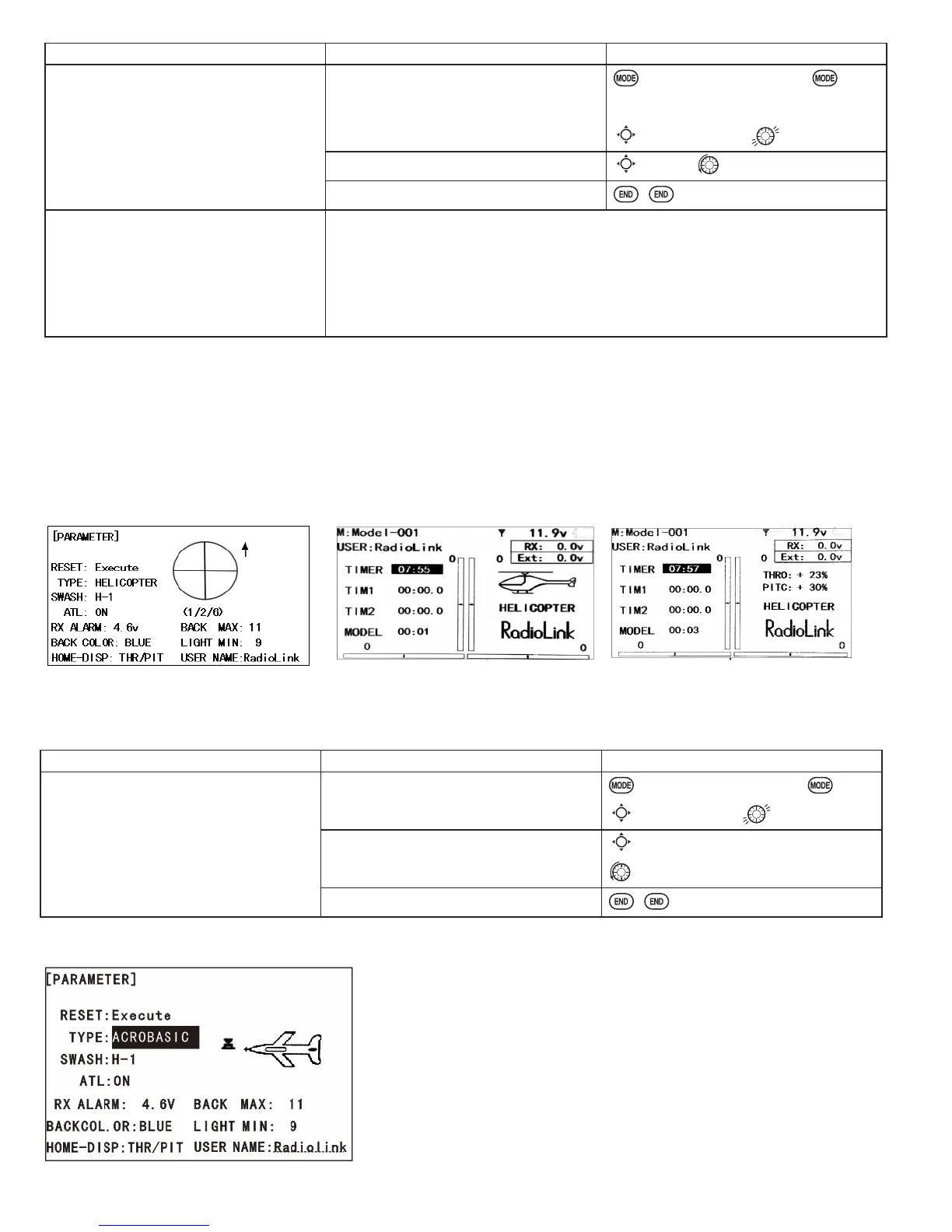

GOAL of EXAMPLE: STEPS: INPUTS:
Change the display mode from
ILLUST
to
THR/PIT
.
Open BASIC menu, then open
PARAMETER
submenu.
for 1 second.
(If
ADVANCE
, again.)
C
to
PARAMETER
.
Go to
HOME-DISP
and change setting.
(Ex:
THR/PIT
)
C
to
HOME-DISP
.
to
THR/PIT
.
Close.
THR/PIT
mode
ILLUST
mode
USER NAME
: assigns your transmitter's name which is displayed in the home screen.
Adjustability and values:
•Each character may be a letter, number, blank, or a symbol.
• The default name assigned by the factory is "Radiolink" logo.
34.
43.

RadioLink AT10 Specifications

General

Channels	10
Frequency	2.4GHz
Output Signal	PPM
Control Distance	1.5km
Compatibility	Compatible with most multi-rotor, airplane, helicopter and car models
