External module Connection:
External flight battery sensor , temperature sensor, rate RPM sensor, GPS sensor.
When the telemetry function is used to send receiver information to the transmitter,telemetry
sensors are connected to the receiver as follows:

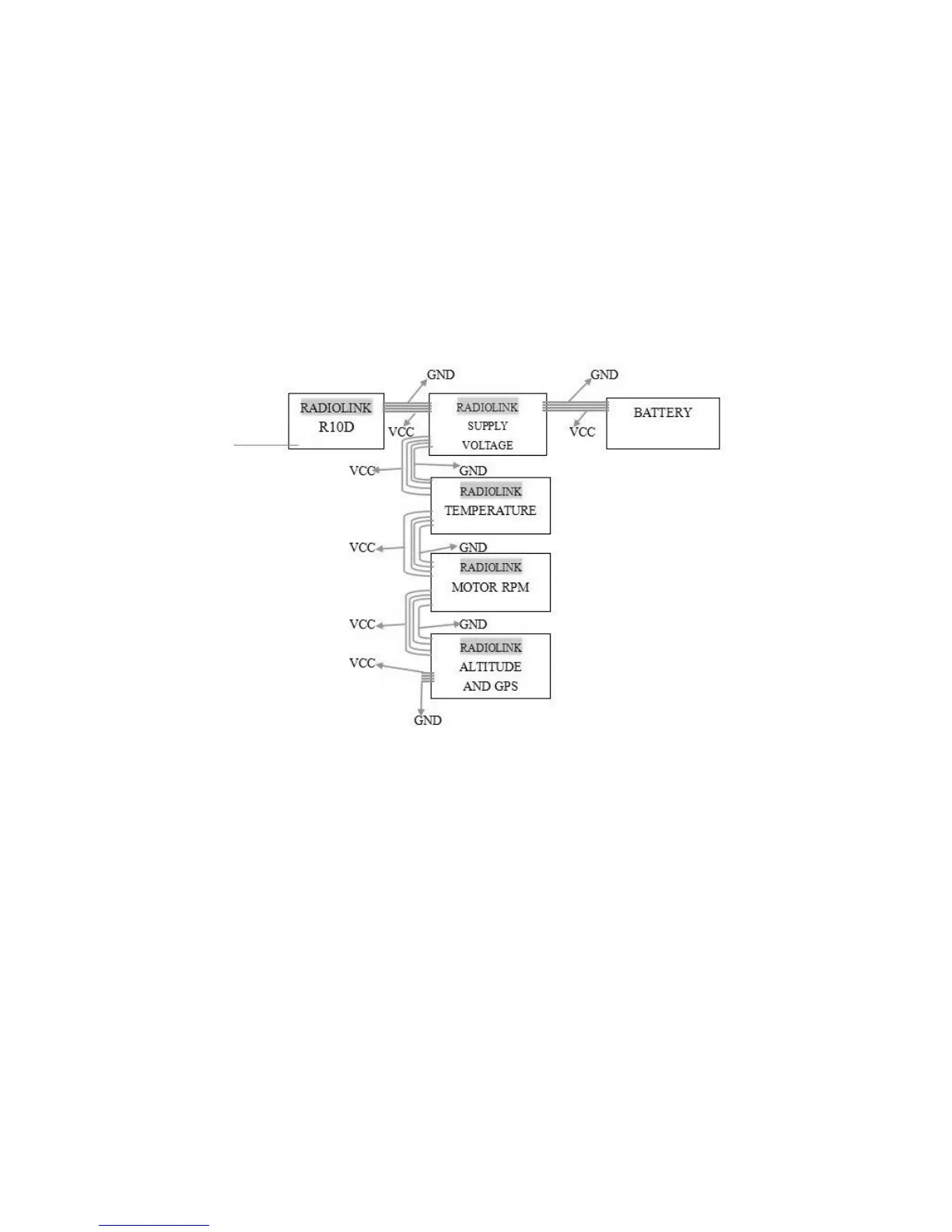

The telemetry hub and voltage sensor is connected to the flight battery and the receiver data
port. Subsequently the actual supply voltage will be displayed on the transmitter screen.
Additional sensors may be connected in series with the telemetry hub and voltage sensor to
supply transmitter display of receiver voltage, and temperature, motor rpm, altitude or gps
information.
