Radiolink Electronic Ltd
www.radiolink.com
Pay Attention: AT10II is default 12 channels, you have to setup AT10II to 10 channels first if you
use receivers R6DS, R6DSM, R9DS and R10DS.
How to setup to 10 channels transmitter: power on your AT10II--Press Mode button one second to
into BASIC MENU--into SYSTEM menu--change CH-SELECT from 12CH to 10CH.
Since Radiolink radio control systems are not open source, that Radiolink transmitters just
compatible with Radiolink receivers and vice versa.
1.1.4 RSSI testing

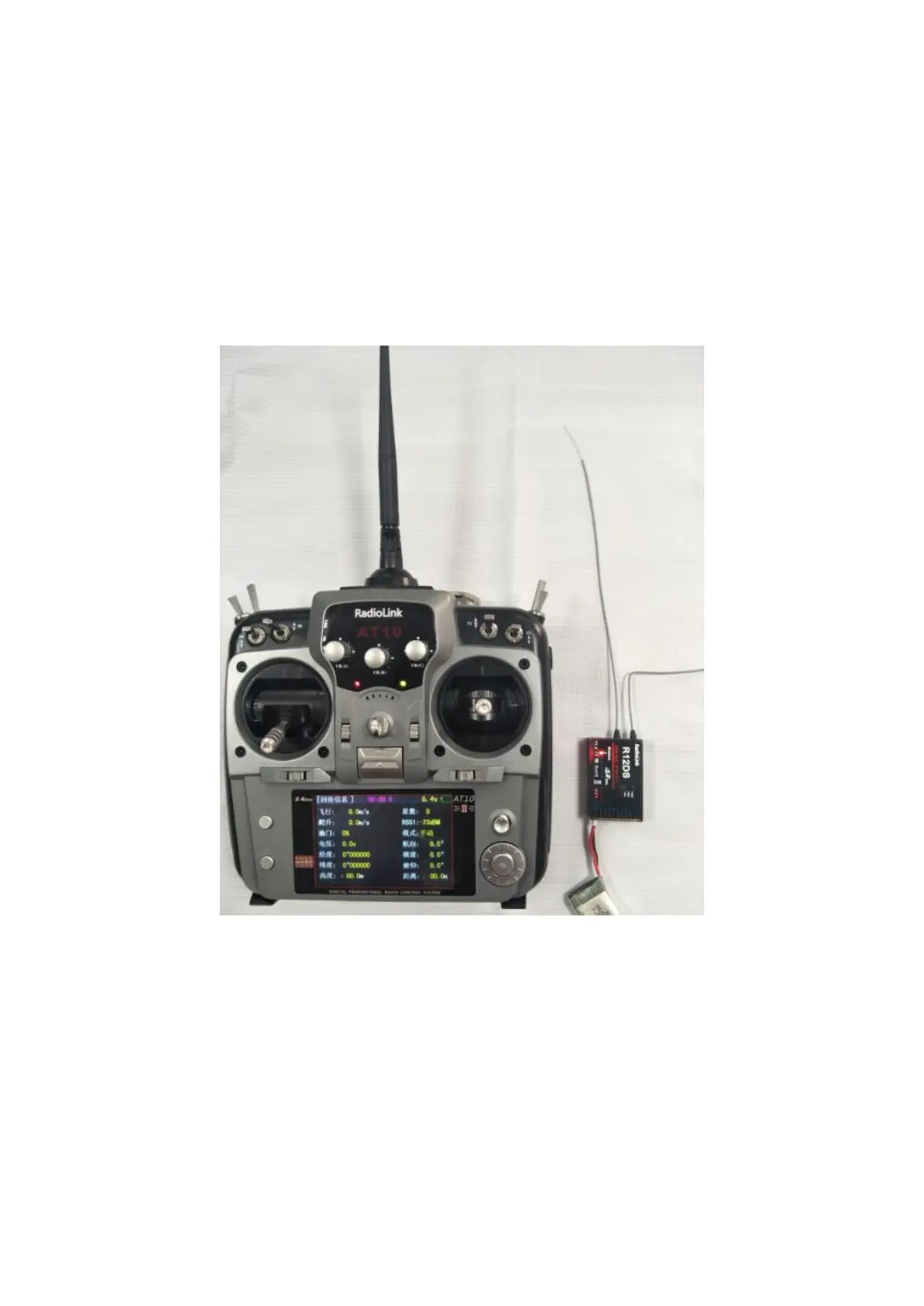

Power on transmitter and receiver, keep transmitter apart from receiver about 30 centimeters and
the antenna straight.
Into the parameter setup menu by press MODE one second, you can check the RSSI in RECEIVE
menu.
The RSSI is 0 to 30dBm is normal when the transmitter is apart about 30 centimeters from the
receiver, the signal is more better the RSSI data is more close to 0.
