Optional: set switch position to
NULL. Make mix active at all time.
Not complete with STK-THR.
to POSI, PUSH, to NULL
Set rate. (Ex: Lo=0%,Hi=5%)
to RATE ,PUSH VR(A)， leave at
0%， VR(A)past center . to 5%
Set OFF SET, if needed.（Ex：0）
to OFST to 0%
Close
Other samples:
• RUD-ELEV (ACRO GLID) mix: Compensate for pitching up or down when rudder is applied.
• AIL-RUD mix (ACRO): Coordinate turns by applying rudder automatically with aileron input. All
model types.
• ELEV-PIT (HELI) mix: Compensate for the loss of lift of tilting the model

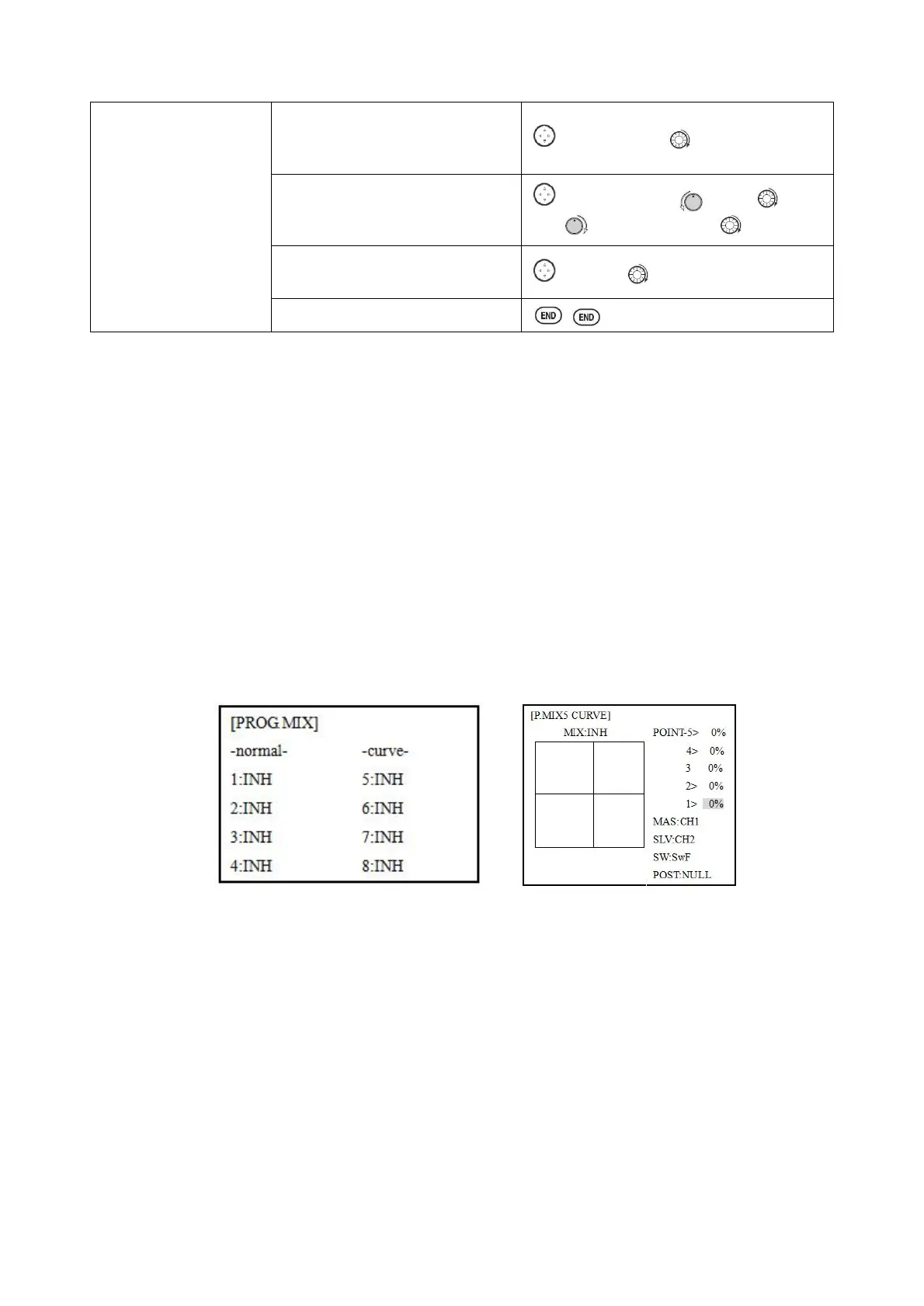

3.3.2 Curve Programmable Mixes (PROG.MIX5-8)(HELI: PROG.MIX5-6 ):
AT10’s ACRO/GLID programs contain four separate curve programmable mixes. HELI contains two.
There are a variety of reasons you might want curve mixes. Usually a linear mix doesn't fit your
needs along the whole range. One pre-programmed curve mix is the THROTTLE-NEEDLE function.
This curve is adjustable at 5 points, allowing you to adjust the motor’s tuning at 5 points along its
RPM range.
One programmable curve mix defaults to RUDDER-AILERON. A linear mix that keeps the model
from rolling in knife-edge is probably too much aileron when rudder is applied in level flight. Create a
curve mix and set all 5 points to match the linear mix. Inhibit the linear mix, and then adjust the
curve to get the right response all along the rudder channel’s travel.
ADJUSTABILITY:
• ACRO/GLID Defaults: The 4 programmable curves mixes default to the most frequent choices, but
can be set to any channel.
• PROG.MIX5 rudder-to-aileron for roll coupling compensation (GLID mixes default to
aileron-to-ELEV.)
• PROG.MIX6 rudder-to-aileron for roll coupling compensation (GLID mixes default to
aileron-to-ELEV.)
• PROG.MIX7 rudder-to-elevator for pitch coupling compensation (GLID mixes default to
elevator-to-airbrake.)
• PROG.MIX8 rudder-to-elevator for pitch coupling compensation (GLID mixes default to
elevator-to-airbrake.)
• HELI Defaults:
• PROG.MIX5 aileron-to-elevator for coordinated turns
• PROG.MIX6 aileron-to-elevator for coordinated turns
• Master: The controlling channel can only be a channel. Cannot OFFSET or dial.
