the flap angle. END POINT and SUB-TRIM both still adjust each servo individually.
Adjustability:
• Each aileron servo up travel can be set separate from its down travel, creating aileron differential.
(See example).
• Each aileron servo's travel when actuated as a flap is separately adjustable.
• AILE-2 can be utilized to use a 5-channel receiver and still have FLAPERON. NOTE: The AILE-2
function only commands the channel 5 servo to operate with the aileron servo as ailerons, and to
obey the primary flap control (travel adjusted in FLAP-TRIM.) It does not provide full flap mix
capability as when using a 6+ channel receiver and channel 6.
• The separate FLAPERON settings for each condition can be set. (GLID)
Note: Activating FLAPERON only makes the ailerons work as ailerons and tells the radio how far
you want them to move as flaps. If you then activate other programming that moves them as flaps.
FLAP-TRIM is the flap-trimming feature that allows the flaps to move in reaction to the channel 6
control. It is meant only for trimming the flaps' center but can also be used as full flap control.
ELEVATOR-FLAP would add elevator mixing into the flap movement from the flap dial after
FLAP-TRIM is activated.
Goals
Steps
Inputs
Activate twin aileron
servos, FLAPERON.
Input 10% less down
travel than up travel
(aileron differential)
within the FLAPERON
programming.(Decrease
right aileron down travel
to 90%,decrease left
aileron down travel to
90%)
Adjust total flap travel
available to 50% of
aileron travel available.
Open the FLAPERON.
to BASIC menu, again to ADVANCE
to FLAPERON .PUSH.
Activate the function.
to MIX. PUSH. to ACT
Optional: adjust the up/down
travel for 2 servos.(Ex:90% down)
to AILE1 AILERON STICK. to
90%
to AILE2, AILERON STICK， to
90%
Optional: Use as total flap control.
Resign CH6 is primary control in
AUX-CH to desired flap
control.(Ex: right slider)
to FLAP2 PUSH， to +50%
to FLAP1.PUSH， to -50%
Close
* If you receive an error message that OTHER WING MIXING IS ON, you must deactivate AIL-DIFF
or ELEVON.

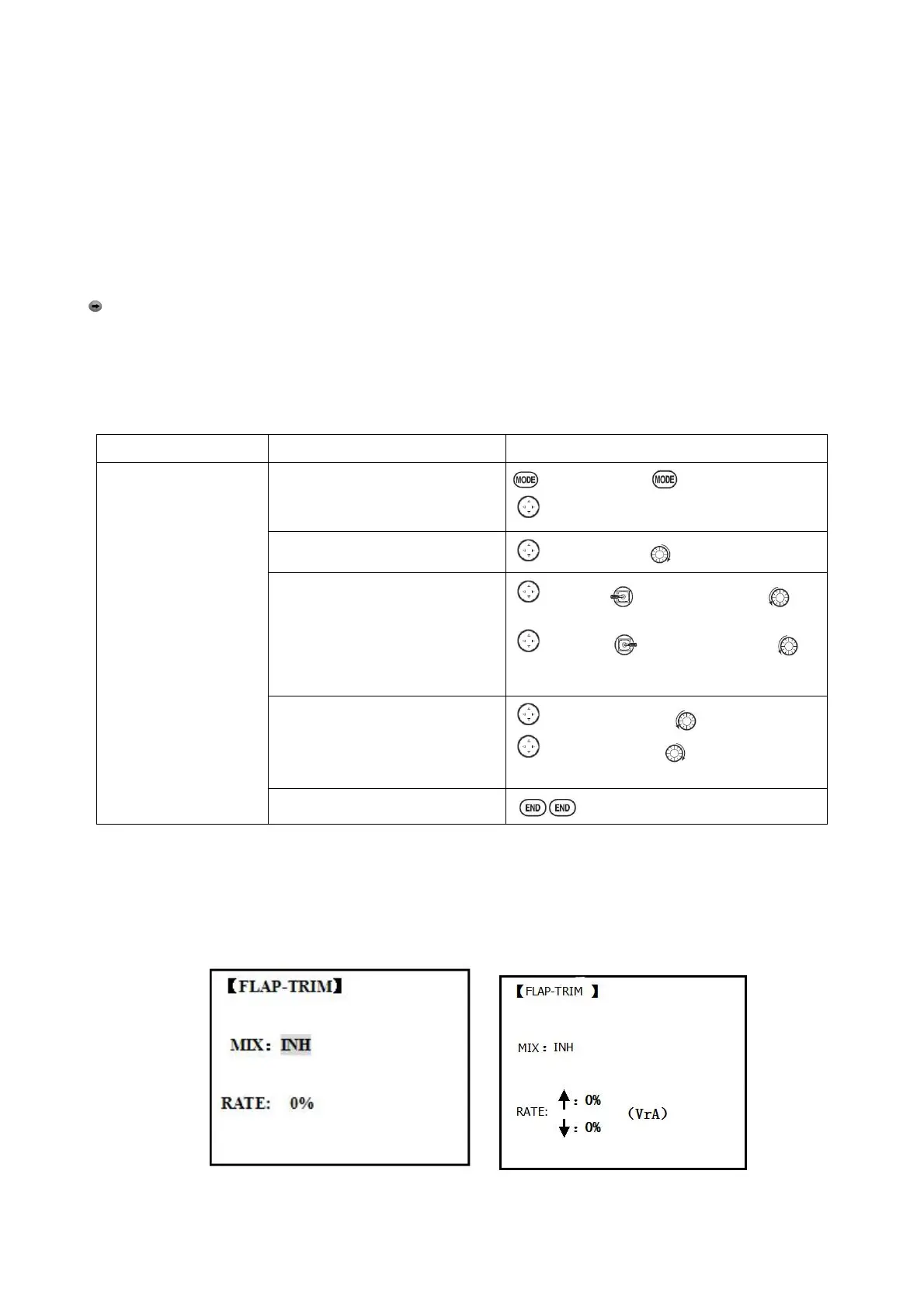

3.3.4 FLAP-TRIM
Using FLAP-TRIM to adjust FLAPERON (ACRO/GLID)
ACRO GLID
