www.raisecom.com User Manual
3
the number of connected RC3000 is alterable.

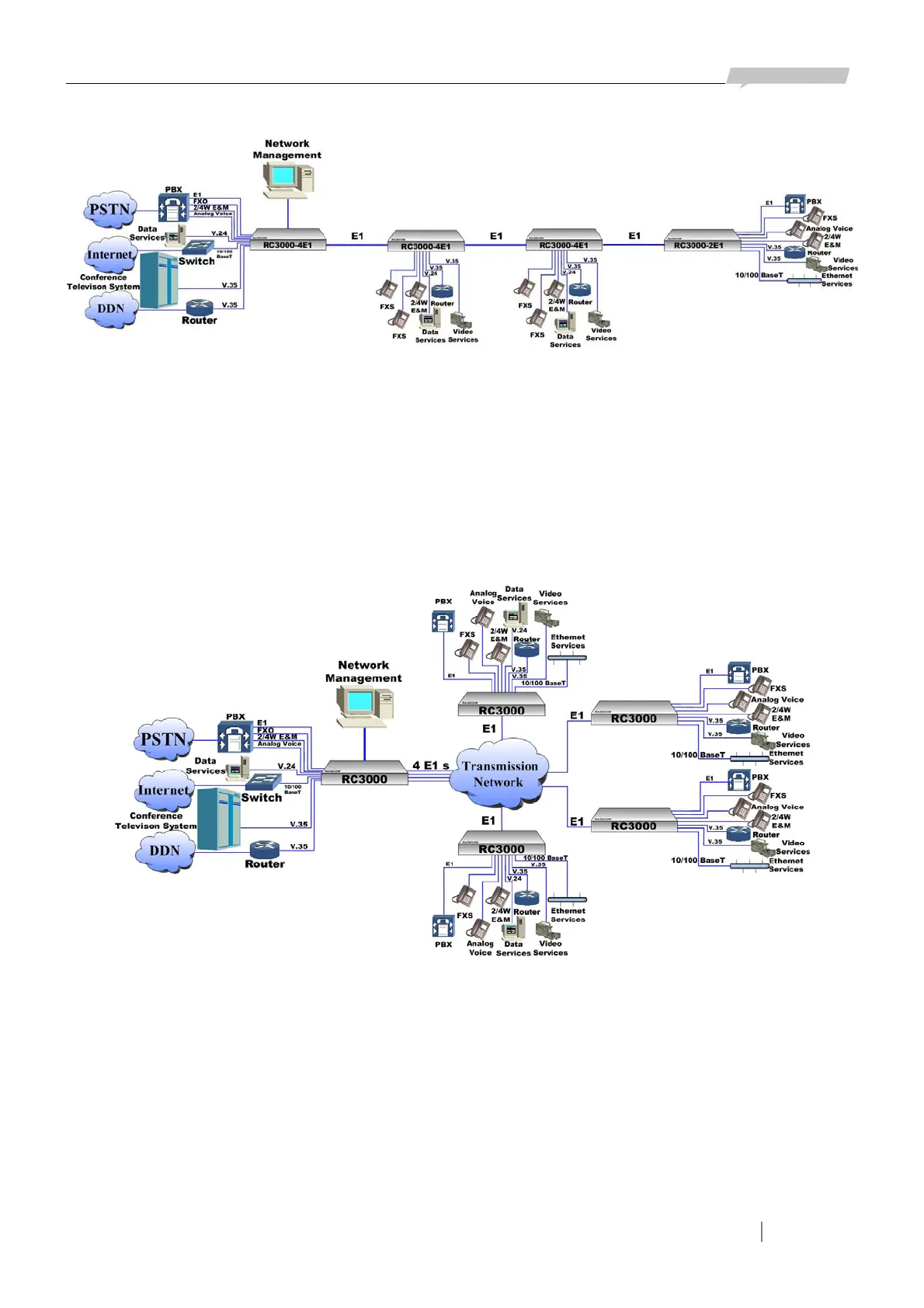

Figure 1-4 Daisy-chain application
In this application, voice channels in local device can be allotted to remote RC3000 devices and
voice channels of remote RC3000 devices can be cross connected too. So multi services access can
be realized.
1.4 Point to Multi-Point application (Star mode)
Point-to-multipoint access through RC3000-4E1 in Figure 1-5:
Figure 1-5 Point to Multi-Point application
This application can reduce the number of devices for multi users’ service configuration.
1.5 Hybrid access of star topology and daisy-chain topology
Hybrid access of star topology and chain topology in Figure 1-6:
