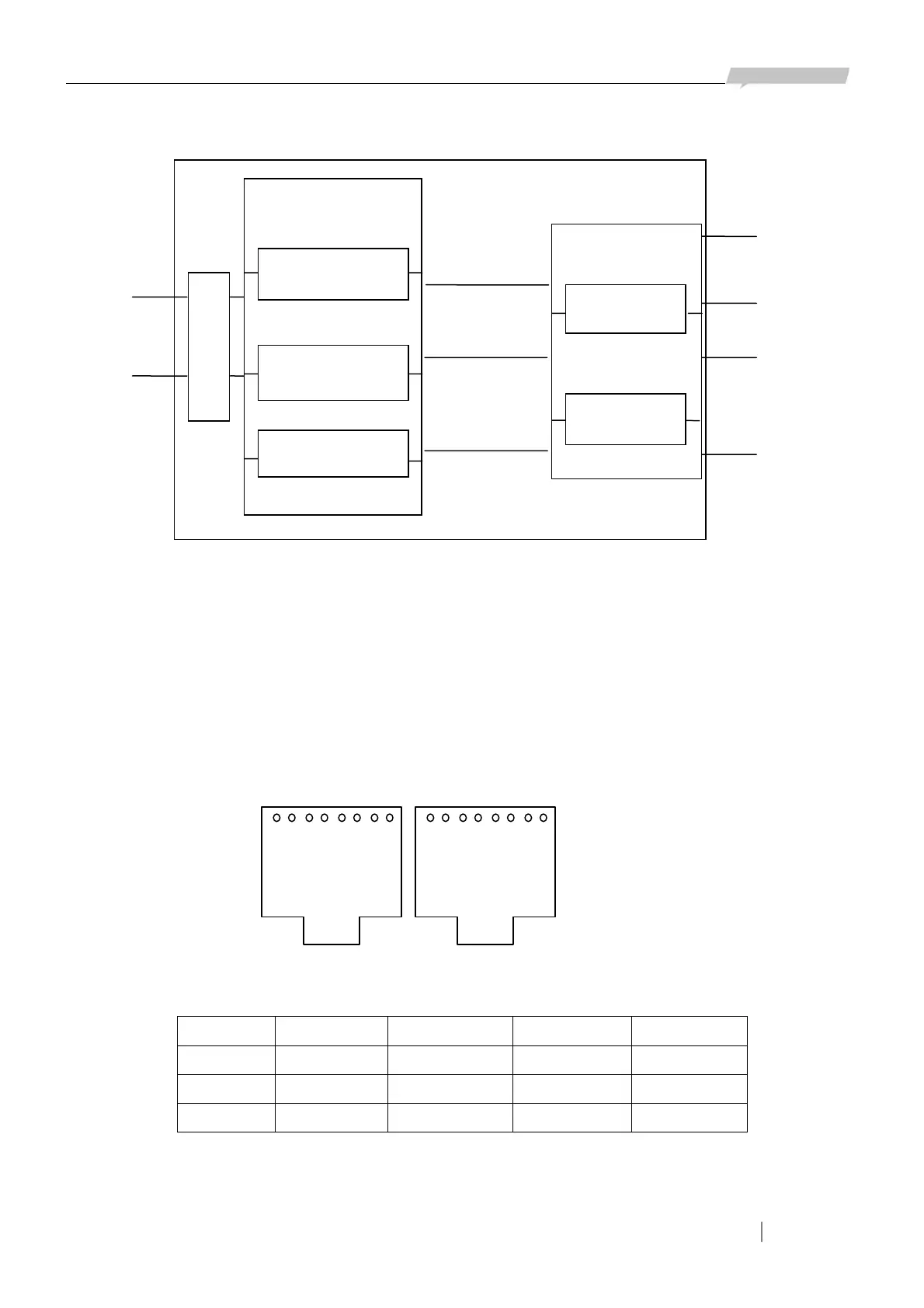

Fundamental structure of RC3000-SUB-DO:
5.4 Function of RC3000-SUB-DSO
RC3000-SUB-DSO is a customized hybrid card of FXS and FXO, there can be N FXS interfaces and
M FSO interfaces (M, N can not be 0, and M+N=8). There totally 8 channels decided by hardware,
unchangeable. Two RJ45 interfaces make up of the 8 channels (each RJ45 interface has four
channels). Definition of RJ45 interface is as follows:
Channel 1 2 3 4
Pins RJ45-1, 1T,2R RJ45-1, 3T,4R RJ45-1, 5T,6R RJ45-1, 7T,8R
Channel 5 6 7 8
Pins RJ45-2, 1T,2R RJ45-2, 3T,4R RJ45-2, 5T,6R RJ45-2, 7T,8R
Multiplexing
bus
Bus
interface
Voice channel control
module
Multiplexing
module
Control bus
Multiplexing
b
us module
Control bus
module
Voice input &
out put
Signal input &
out put
Control of
channel output
2W & 4W balance
module
Voice D/A
converter
Detect of loop and
rin
g
Voice
channel
interface
Interface
p
rotection
Figure 5-7
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
Figure 5-8
RJ45-1 RJ45-2
