www.raisecom.com User Manual
36
a. Configuration of sub-card time slot; b. Choose the data channel;
c. Auto-negotiation configuration; d. Default interface mode; e. Interface reset.
Please refer to Appendix A How to use Hyper Terminal to configure RC3000 for operation and setting
contents.
5.16 Function of RC3000-SUB-DETHx2
5.16.1 Rules for channel allocation
RC3000-SUB-DETHBx2 is a dual-channel Ethernet data user card with dual 10/100BaseT
auto-negotiation interface. The two Ethernet channels are totally independent and can be configured
solely. And please refers to configuration rules of RC3000-SUB-DETHx2 user card.
5.16.2 Definition of dual-Ethernet interface

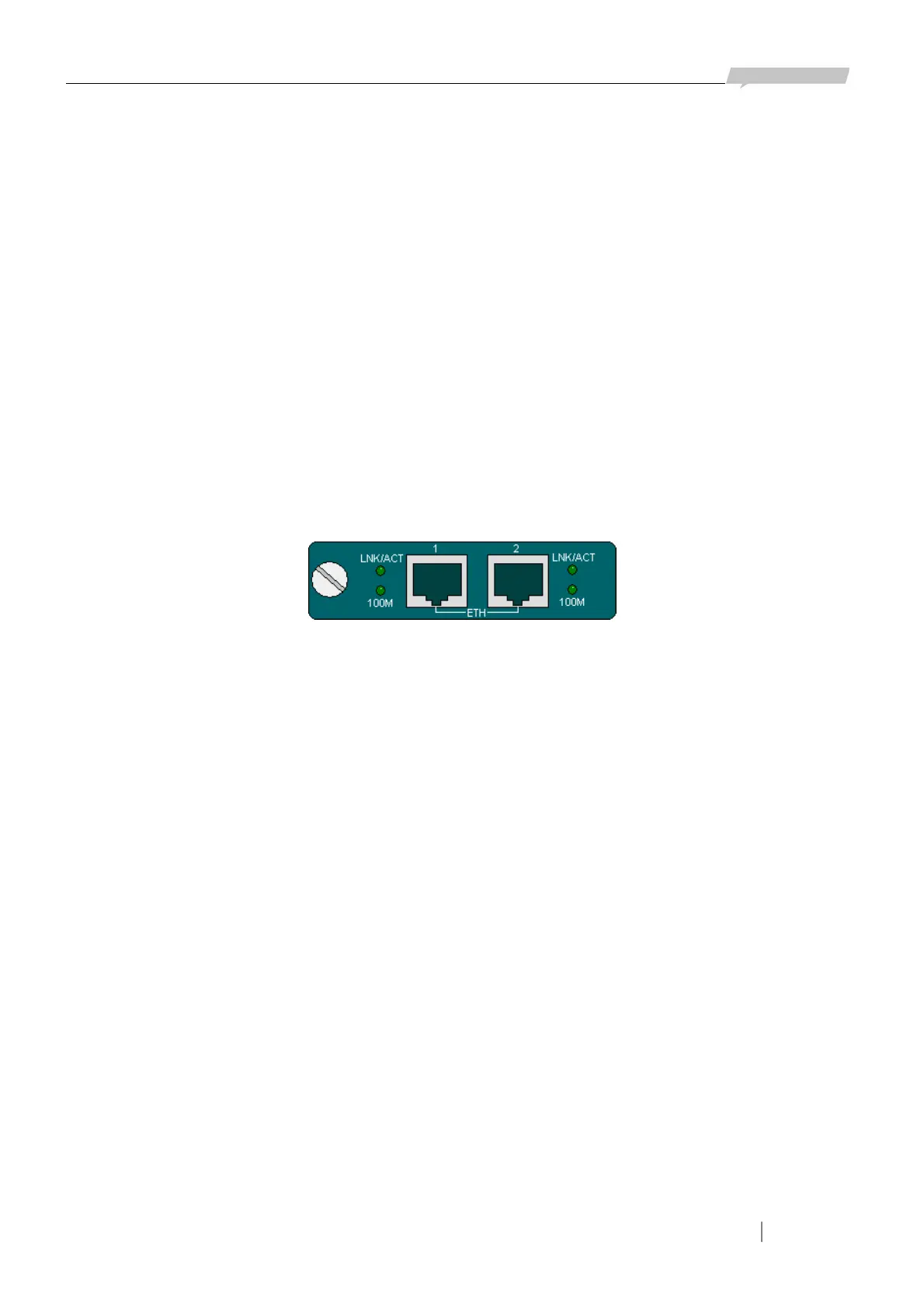

Ethernet interface uses RJ45 connector and realizes Auto-MDI/MDIX (cross over or straight-through)
cable as following figure:
Figure 5-23
The interface is standard Ethernet interface. Indicators are all green:
LNK/ACT: indicates the Ethernet user card LINK and active status, ON: LINK ON
100M: Ethernet speed indicator light, ON: 100BaseT, OFF: 10BaseT.
5.16.3 Setting of Ethernet sub-card
Ethernet user card has many functions and both Hyper Terminal and network management can
configure the following commands:
a. Configuration of sub-card time slots; b. Choose the data channel;
c. Auto-negotiation configuration; d. Default interface mode; e. Interface reset.
Please refer to Appendix A How to use Hyper Terminal to configure RC3000 for operation and setting
contents.
5.17 Function of RC3000-SUB-DV24
RC3000-SUB-DV24 sub-card is a standard V.24 sub-card, with speed 64Kbps and 128Kbps can be
customized. Every card possesses 4 paths and taking up 8 64K channels. The occupied channel
amount depends on hardware, users can not modify it. The interface includes 4 RJ45 connector and
one RJ45 is a channel interface. Detailed definition of RJ45 connector shows as below:
