5.18.4 Definition of interface
Pin Name of 64K signal
1 TD1+
2 TD1-
3 RD2+
4 RD1+
5 RD1-
6 RD2-
7 TD2+
8 TD2-
5.19 Function of RC3000-SUB-10FXS card
10 FXS is a user audio sub-card with feed and feed ring and can be connected to exterior line
interface of FBX. There are 10 channels of a FXS and the channel number is decided by hardware,
unchangeable and supporting polarity reversal. Interface is made up of 3 RJ45; each RJ45 provides 2
user interfaces.
. Definition of RJ45 interface is as follows:
RJ45 Pin Channel Name
1～2 1
st
line CHANN1A / CHANN1B
3～4 2
nd
line CHANN2A / CHANN2B
5～6 3
rd
line CHANN3A / CHANN3B
PORT 1
7～8 4
th
line CHANN4A / CHANN4B
1～2 1
st
line CHANN5A / CHANN5B
3～4 2
nd
line CHANN6A / CHANN6B
5～6 3
rd
line CHANN7A / CHANN7B
PORT 2
7～8 4
th
line CHANN8A / CHANN8B
1～2 1
st
line CHANN9A / CHANN9B
PORT 3
3～4 2
nd
line CHANN10A / CHANN10B
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

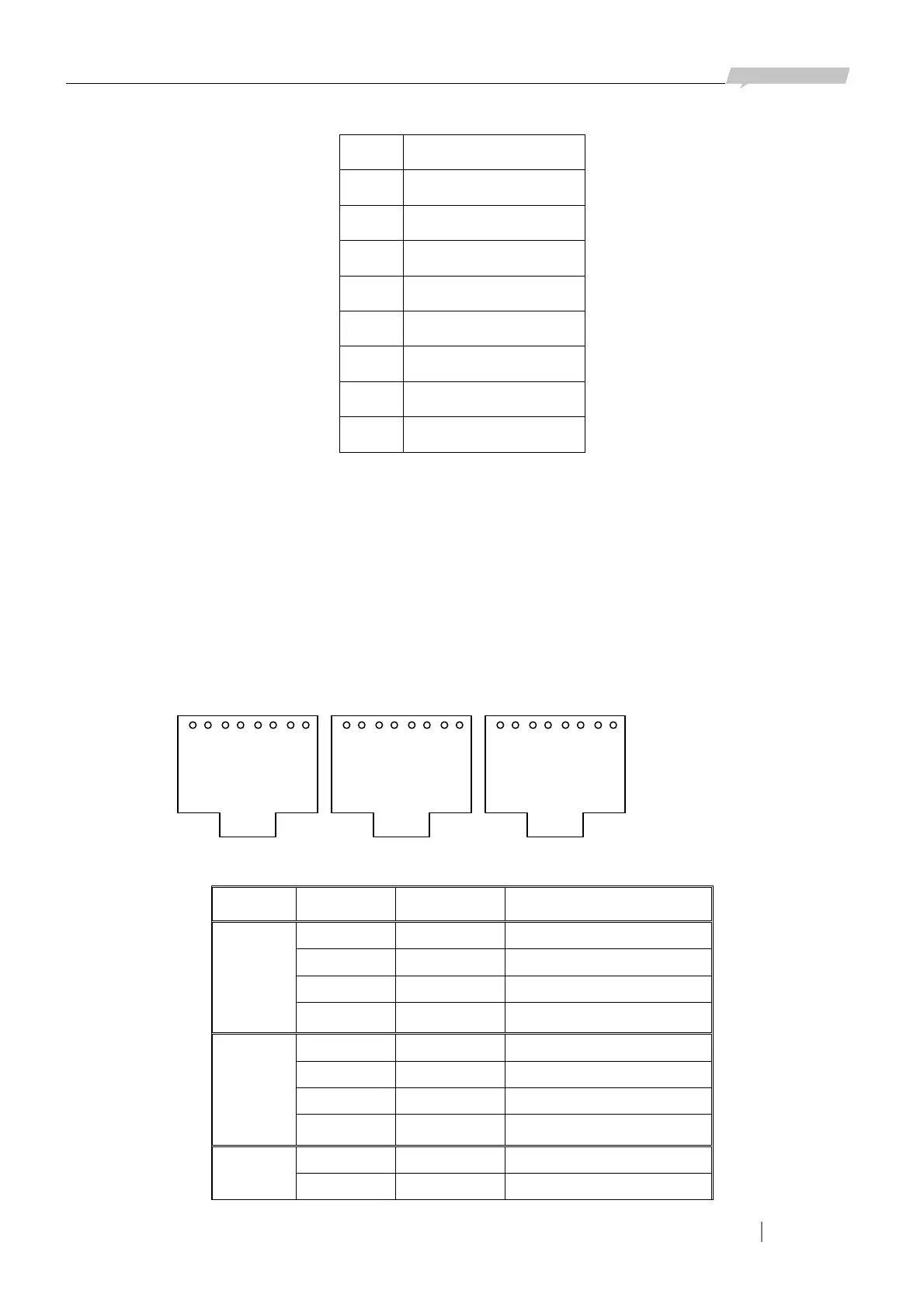

Figure 42
RJ45-1 RJ45-2
1 2 3 4 5 6 7 8
RJ45-3
