4 | Transport
80.06.070_iCombiPro-iCombiClassic_IM_en-GB 27 / 108

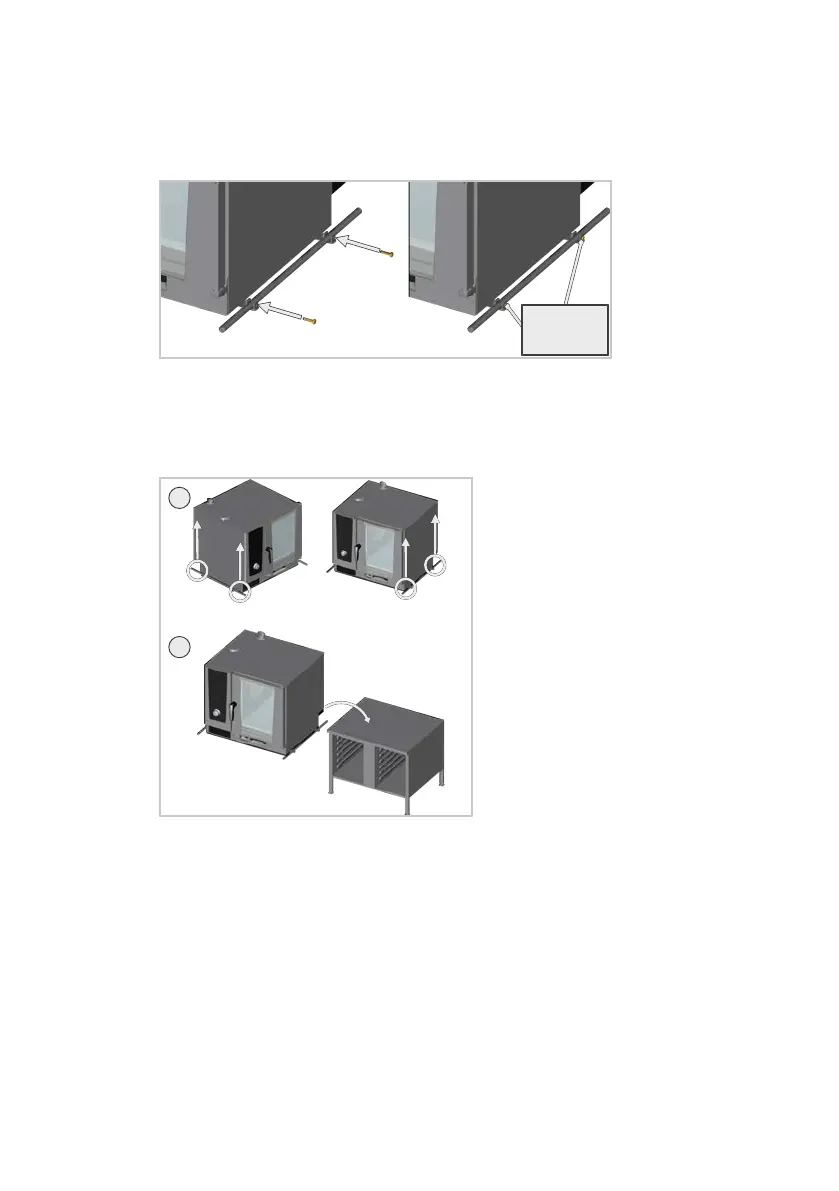

5. Screw the bar in place with the hexagon bolts M8 with a torque of 5Nm
[32/3lbfft].
> Make sure that the bolts are screwed in flush. All four bolts must be
tightened accordingly.
6. Transport the unit with the lifting aid and place it on its intended installation
surface.
> Lift the unit evenly at the circled lifting points of the bars (1).
> Transport the unit with the lifting aid to its intended installation surface (2).
7. Uninstall the lifting aid. To do this, follow the above process in reverse order
(Points 2-4).
8. Slide the seal back into its slot in the base frame.
>> The unit is positioned on its intended installation surface and is ready for in-
stallation.
