6 | Electrical connection
80.06.070_iCombiPro-iCombiClassic_IM_en-GB 61 / 108
Unit size 20-1/1 GN - 20-2/1 GN
1. Insert the left side panel underneath the unit frame upwards.
2. Press the side panel upwards.
3. Tighten 2 screws on the underside of the side panel.
>> The electrical compartment is closed.

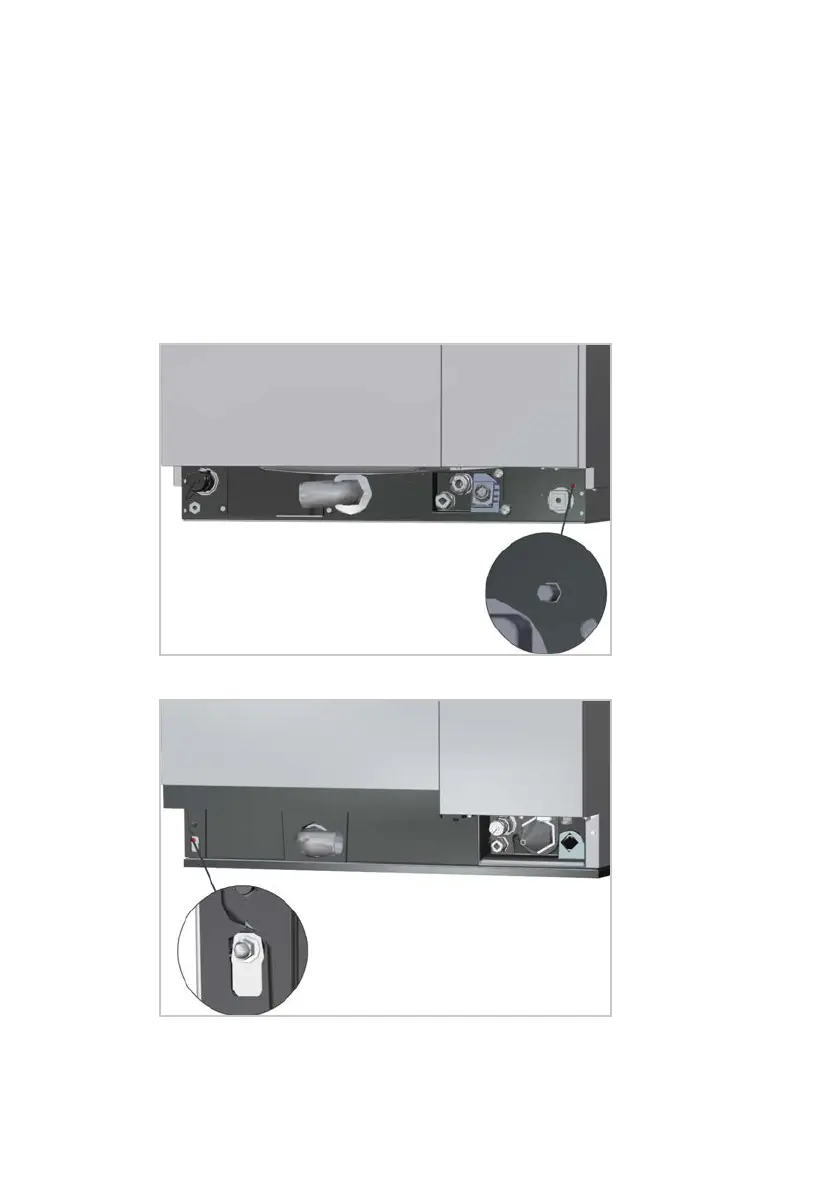

6.8 Connecting the equipotential bonding
A connection site for equipotential bonding is located on the bottom or the rear
of the unit.
Unit size 6-2/3 GN
Unit size 6-1/1 GN to 10-2/1 GN
