6 | Electrical connection
80.06.070_iCombiPro-iCombiClassic_IM_en-GB 59 / 108

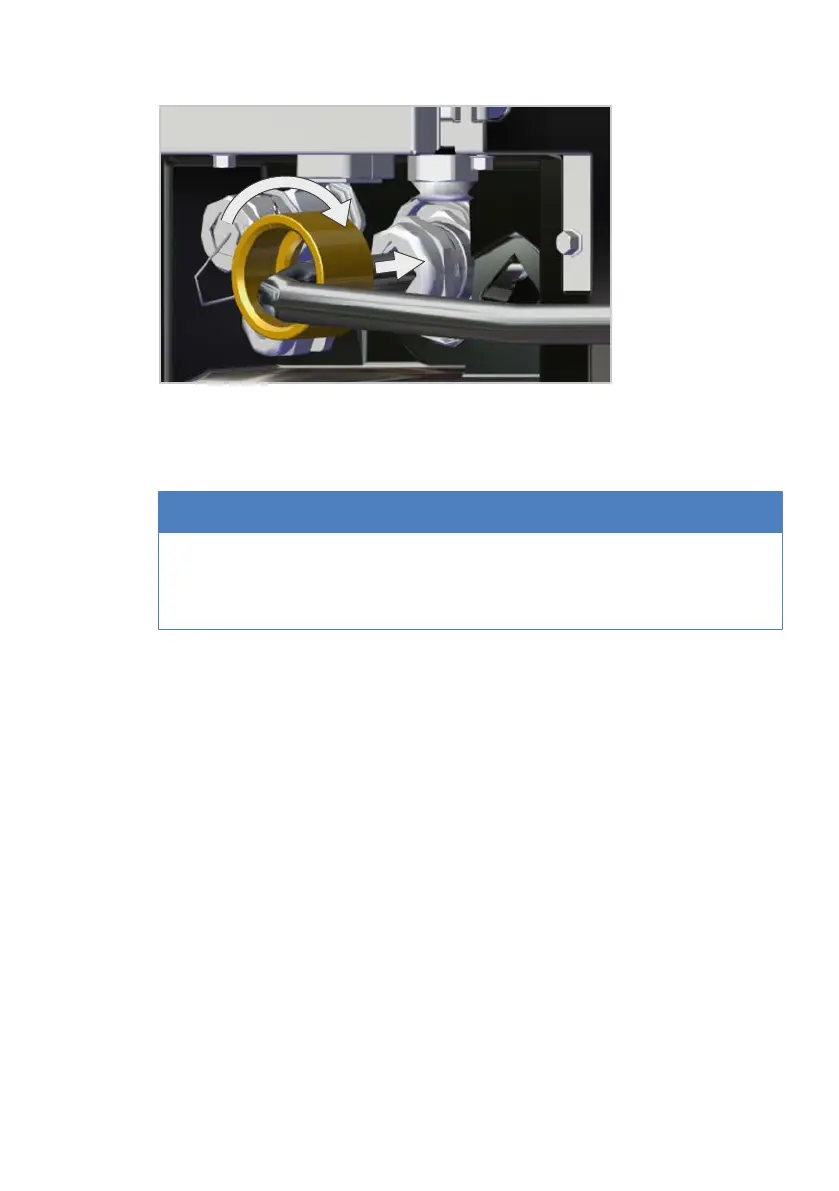

5. Mount the gaskets and the lock nut over the cable to the pipe adapter.
6. Close the left side panel.
>> The installation of the conduit connection is completed on the unit side.
6.6 Connecting gas units to the mains
NOTICE
Incorrect polarity in electrical connection
Note polarity of electrical connection. An error message will appear if
polarity is incorrect. The unit is not functional.
Notes on power cable and connection point
n
The manufacturer recommends that each unit should have its own fused
power supply line.
n
Either a permanent connection or a plug connection may be used to connect
the units to the power supply.
n
A dedicated supply line is available for the unit. The flexible power cord is at
least of type H07 RN-F.
n
Tabletop units are equipped with power cords without plugs. The cables are
around 2.5 m [98.5 inches] in length.
n
Standalone units are delivered without mains cables.
n
A dedicated supply line is available for the unit.
n
The units are delivered with a power cable without plugs.
n
Combi-Duo: Both units can be operated via a double socket with a 15 A cir-
cuit breaker.
n
For gas units, the connection point of the mains cable is located on the flat
pins of the integrated mains filter in the electrical compartment.
Establish the connection
a A type B residual current circuit breaker is provided.
