6 | Electrical connection
54 / 108 80.06.070_iCombiPro-iCombiClassic_IM_en-GB
>> The electrical compartment is open.
6.3 Connecting electric units to the mains
Notes on power cord and connection point
n
A permanent connection is provided for the electrical connection of the
unit.
n
Units with a 3 NAC 400 V supply voltage can be connected with a per-
manent connection or a plug connection.
n
A dedicated supply line is available for the unit. The flexible power cord is
at least of type H07 RN-F.
n
Tabletop units are equipped with power cords without plugs. The cables
are around 2.5 m [98.5 inches] in length.
n
Standalone units are delivered without mains cables.
n
Units with a 3 NAC 400 V supply voltage must be connected to a safety
switch by means of a permanent connection (conduit connection).
n
A dedicated supply line is available for the unit.
n
Units are delivered without mains cables.
n
Unit size 6-2/3 GN: The unit is supplied with a power cord.
n

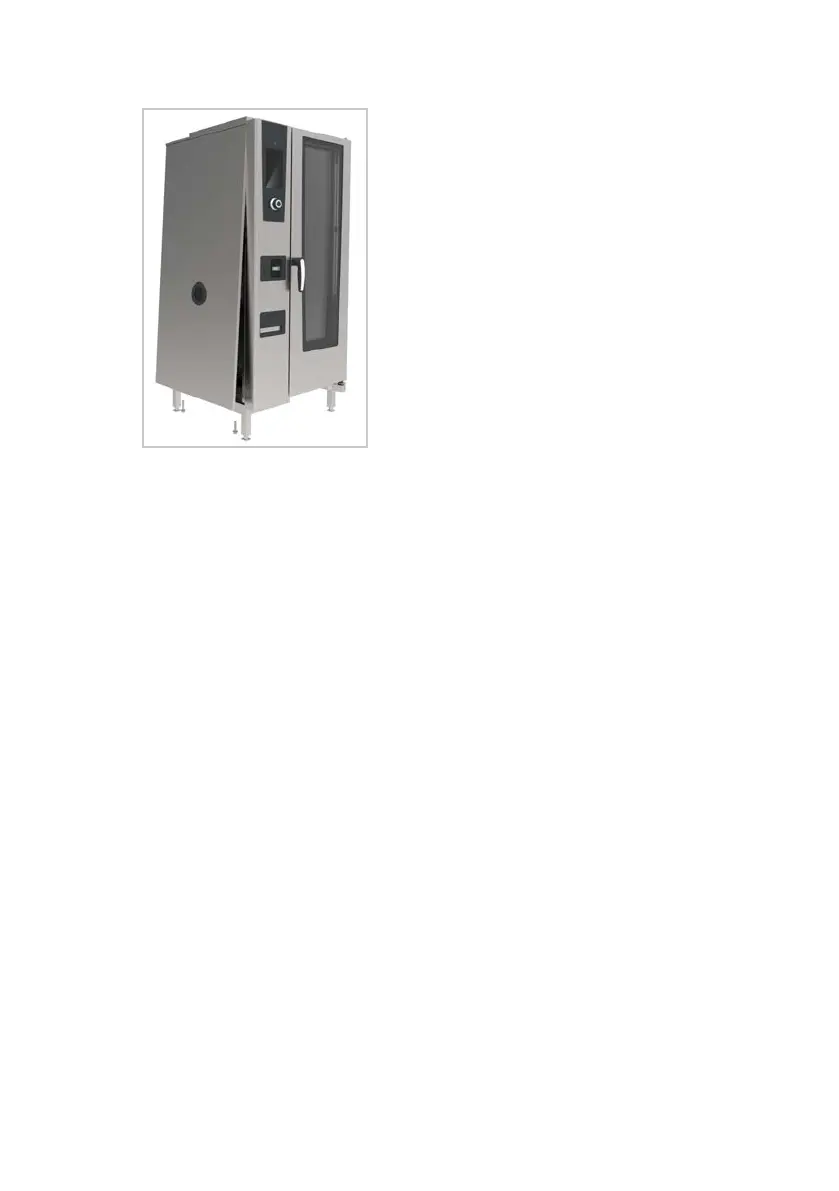

The connection point for the power cord is on the main contactor in the
electrical compartment behind the removable left side panel.
Connecting the tabletop unit
a Unit size 6-2/3 GN: For the installation, there is an all-pole disconnecting
unit with a contact distance of at least 3 mm [0.12 inch].
a A residual current circuit breaker according to the table Power ratings of
different voltage types [}62] is in place.
a The mains lead cleat for the supply cable is tightened.
