6 | Electrical connection
80.06.070_iCombiPro-iCombiClassic_IM_en-GB 51 / 108
Unit size 6-2/3 GN

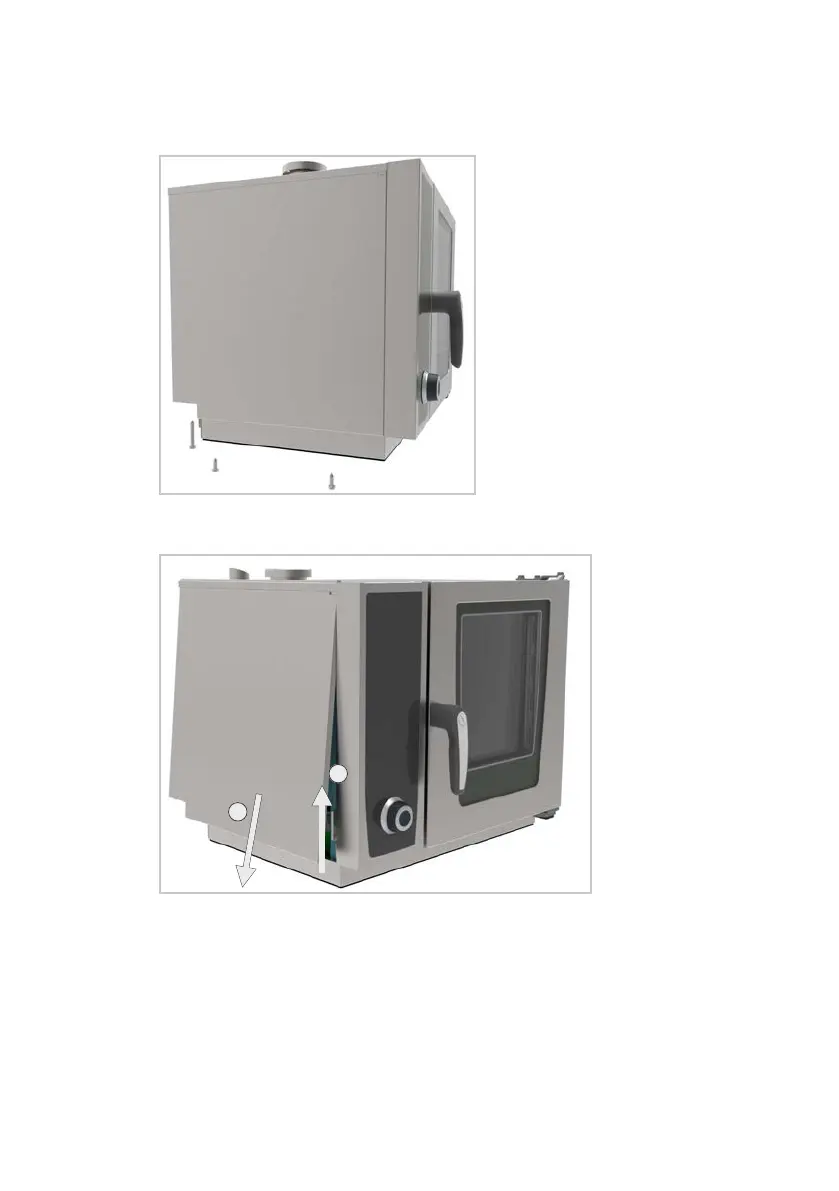

1. Loosen two screws on the underside of the left side panel and 1 screw on
the rear side.
2. Lift up the left side panel from below and pull the side panel downwards
away from the unit.
1
2
>> The electrical compartment is open.
